GN 565.3 Cabinet U-Handles Aluminum, with Tapped or Counterbored Through Holes

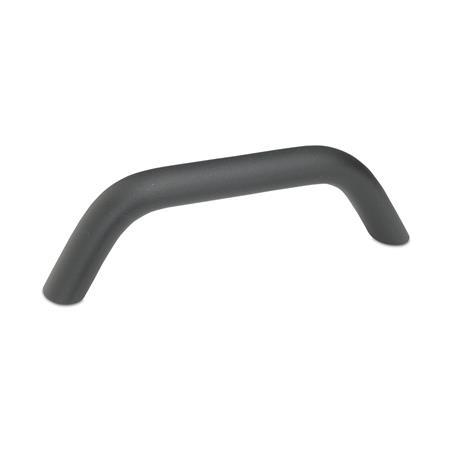

GN 565.3 Aluminum Cabinet U-Handles, with Tapped or Counterbored Through Holes Type: A - Mounting from the back (tapped blind hole)
Finish: SW - Black, RAL 9005, textured finish
Type: A - Mounting from the back (tapped blind hole)
Finish: SW - Black, RAL 9005, textured finish
GN 565.3 Aluminum Cabinet U-Handles, with Tapped or Counterbored Through Holes Type: A - Mounting from the back (tapped blind hole)
Finish: SW - Black, RAL 9005, textured finish GN 565.3 Aluminum Cabinet U-Handles, with Tapped or Counterbored Through Holes Type: A - Mounting from the back (tapped blind hole)
Finish: BL - Plain, tumbled finish GN 565.3 Aluminum Cabinet U-Handles, with Tapped or Counterbored Through Holes Type: A - Mounting from the back (tapped blind hole)
Finish: EL - Anodized finish, natural color GN 565.3 Aluminum Cabinet U-Handles, with Tapped or Counterbored Through Holes Type: A - Mounting from the back (tapped blind hole)
Finish: SR - Silver, RAL 9006, textured finish GN 565.3 Aluminum Cabinet U-Handles, with Tapped or Counterbored Through Holes Type: B - Mounting from the operator's side
Finish: BL - Plain, tumbled finish GN 565.3 Aluminum Cabinet U-Handles, with Tapped or Counterbored Through Holes Type: B - Mounting from the operator's side
Finish: EL - Anodized finish, natural color GN 565.3 Aluminum Cabinet U-Handles, with Tapped or Counterbored Through Holes Type: B - Mounting from the operator's side
Finish: SR - Silver, RAL 9006, textured finish GN 565.3 Aluminum Cabinet U-Handles, with Tapped or Counterbored Through Holes Type: B - Mounting from the operator's side
Finish: SW - Black, RAL 9005, textured finish

Product description

Information

Cabinet U-handles GN 565.3 are manufactured from a bent aluminum profile. They are suitable for applications where lower lifting forces are required such as on lids or protective machine covers.

The countersunk holes of type B allow fixing with self tapping screws or countersunk rivets.

Specification

Aluminum

  • Powder coated
    Black, RAL 9005, textured finishSWSW
    Silver, RAL 9006, textured finishSRSR
  • Anodized finish, natural colorELEL
  • Plain, tumbled finishBL

RoHS

On request

Various metric size fasteners and kit packaging

Technical drawing

3D
Hide technical drawing
GN 565.3 Aluminum Cabinet U-Handles, with Tapped or Counterbored Through Holes sketch

Part Options / Table

Type

AMounting from the back (tapped blind hole)
BMounting from the operator's side
Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)
bl1 ±0.01l2
Type A
l3
Type B
ad1
Type A
d2
Type B
h1h2
Type B
rt
min.
0.794.725.595.390.51M 50.211.610.200.510.39
0.796.307.176.970.51M 50.211.770.200.510.39

Build & Price

3D Product Configurator
Handle width b
Length l1
Type


Finish
EL
SR
SW

Selected Part

Total US Dollars (net)
$12.26
In Stock: 600
In Stock
Please note our quantity discounts (US Dollars).
MinMaxPrice
199$12.26
100249$11.24
250499$10.22
≥ 500$9.20
Prop 65: Not compliant
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
RoHS: Compliant
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 0.196 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351
All Prices are in US Dollars. Taxes Not Included.

CAD Download

Other Data Formats

Email CAD File

To receive an email with a CAD download without creating an account, please enter your e-mail address. Max of 3 CAD files per day unless you create an account.

Please enter the code above.

CAD Download Tutorial About CAD Downloads
Save as Favorites

Please enter the code above.

Need Help?

Our service team is available from Monday to Friday between 7:30 AM and 5:00 PM Central Time: 800-877-8351

Special Requests | Contact our sales team

GN 565.3-20-120-A-SWGN 565.3-20-120-B-SWGN 565.3-20-120-A-SRGN 565.3-20-120-B-SRGN 565.3-20-120-A-ELGN 565.3-20-120-B-ELGN 565.3-20-120-A-BLGN 565.3-20-120-B-BLGN 565.3-20-160-A-SWGN 565.3-20-160-B-SWGN 565.3-20-160-A-SRGN 565.3-20-160-B-SRGN 565.3-20-160-A-ELGN 565.3-20-160-B-ELGN 565.3-20-160-A-BLGN 565.3-20-160-B-BL
