Adjustable Levers GN 300.7

Color: SW - Black, RAL 9005, textured finish

Product description

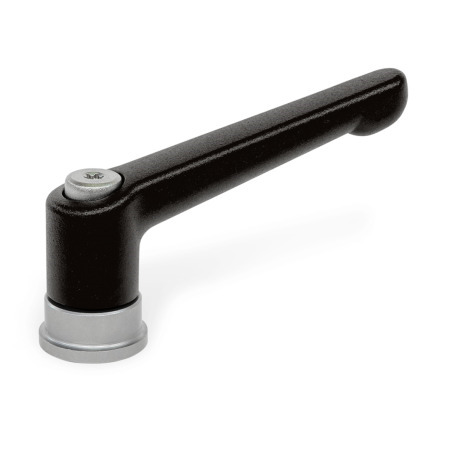

Adjustable levers GN 300.7 are produced with a clamping area which is linked via a thrust ball bearing (axial bearing) to the insert of the lever.
This has led to the following advantages:

Doubled clamping force through vastly reduced friction.
There is no movement on the contact area between adjustable lever and component which greatly reduces any marking on the clamping area.
In addition a reduced creep factor has been achieved by the increased preload.

Specification

Lever body
Zinc die-cast

Powder coated
- Black, RAL 9005, textured finishSW
- Black, RAL 9005, silk shiny finishSZ
- Orange, RAL 2004, textured finishOS
- Red, RAL 3000, textured finishRS
- Silver, RAL 9006, textured finishSR
Chrome plated finishCR

Axial bearing
Stainless steel AISI 630

Tapped insert
Stainless steel AISI 420

Retaining screw
Stainless steel AISI 304Cu

Pressure spring
Stainless steel AISI 301

RoHS

Your Contact

You are looking for a Winco partner near you?

Part Number SW	Part Number SZ	Part Number OS	Part Number RS	Part Number SR	Part Number CR	l₁	d₁	d₃	d₄	h₁	h₃	h₄ Stroke	t min.


300.7-63-M6-SW	300.7-63-M6-SZ	300.7-63-M6-OS	300.7-63-M6-RS	300.7-63-M6-SR	300.7-63-M6-CR	2.48	M 6	0.94	0.69	1.36	1.91	0.16	0.49
300.7-78-M8-SW	300.7-78-M8-SZ	300.7-78-M8-OS	300.7-78-M8-RS	300.7-78-M8-SR	300.7-78-M8-CR	3.07	M 8	0.98	0.83	1.56	2.30	0.16	0.55
300.7-92-M10-SW	300.7-92-M10-SZ	300.7-92-M10-OS	300.7-92-M10-RS	300.7-92-M10-SR	300.7-92-M10-CR	3.62	M 10	1.18	0.94	1.83	2.70	0.16	0.71
300.7-108-M12-SW	300.7-108-M12-SZ	300.7-108-M12-OS	300.7-108-M12-RS	300.7-108-M12-SR	300.7-108-M12-CR	4.25	M 12	1.38	1.18	2.22	3.23	0.20	1.04
