Adjustable Levers GN 303.1

Push button color: S - Black, RAL 9005

Standard Sheet GN 303.1 Print This Page Stainless Steel Characteristics

Product description

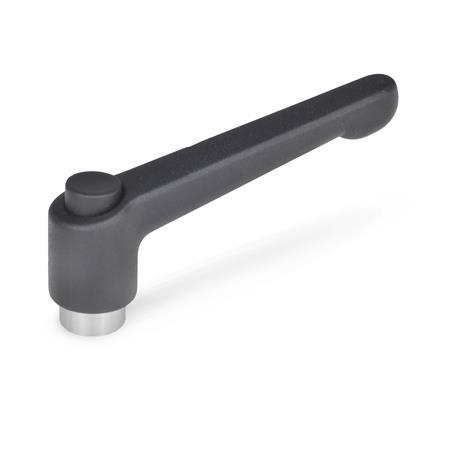

Adjustable levers GN 303.1 with push button have proven to be ideal wherever parts have to be clamped in a confined space or in a particular lever position. The insert is connected to the lever via serrations that can easily be disengaged.

Pulling the lever upwards disengages the serrations, allowing it to be swiveled to the ideal clamping position. When releasing the lever, the serrations automatically re-engage.

The push button is a design element and allows for effortless release action. However, this design is limited to applications that do not require the lever to be disassembled.

Specification

Lever body
Zinc die-cast
Powder coated
Black, RAL 9005, textured finishSW

Tapped insert
Stainless steel AISI 303

Push button
Plastic, Polyamide (PA)

Black, RAL 9005S
Orange, RAL 2004O
Gray, RAL 7035G

RoHS

On request

Lever in GN 300 colors
Special colors, bores, and threads

Selected Part

Part Number S	Part Number O	Part Number G	l₁	d₁	d₃	d₄	h₁	h₂	h₃	h₄ Stroke	t min.


1TCR5K/C1	1TCR5K/C2	1TCR5K/C3	1.18	10 x 32	0.39	0.51	1.04	0.16	1.22	0.14	0.31
2TCR5K/C1	2TCR5K/C2	2TCR5K/C3	1.18	10 x 24	0.39	0.51	1.04	0.16	1.22	0.14	0.31
3TCR5K/C1	3TCR5K/C2	3TCR5K/C3	1.18	1/4 x 20	0.39	0.51	1.04	0.16	1.22	0.14	0.31
1TCR6K/C1	1TCR6K/C2	1TCR6K/C3	1.77	10 x 32	0.39	0.51	1.04	0.16	1.38	0.14	0.31
2TCR6K/C1	2TCR6K/C2	2TCR6K/C3	1.77	10 x 24	0.39	0.51	1.04	0.16	1.38	0.14	0.31
3TCR6K/C1	3TCR6K/C2	3TCR6K/C3	1.77	1/4 x 20	0.39	0.51	1.04	0.16	1.38	0.14	0.31
3TCR7K/C1	3TCR7K/C2	3TCR7K/C3	2.48	1/4 x 20	0.53	0.69	1.28	0.26	1.77	0.16	0.43
5TCR7K/C1	5TCR7K/C2	5TCR7K/C3	2.48	5/16 x 18	0.53	0.69	1.28	0.26	1.77	0.16	0.43
5TCR8K/C1	5TCR8K/C2	5TCR8K/C3	3.07	5/16 x 18	0.63	0.83	1.48	0.31	2.17	0.16	0.55
6TCR8K/C1	6TCR8K/C2	6TCR8K/C3	3.07	3/8 x 16	0.63	0.83	1.48	0.31	2.17	0.16	0.55
3NCR5K/C1	3NCR5K/C2	3NCR5K/C3	1.18	M 3	0.39	0.51	1.04	0.16	1.22	0.14	0.28
4NCR5K/C1	4NCR5K/C2	4NCR5K/C3	1.18	M 4	0.39	0.51	1.04	0.16	1.22	0.14	0.31
5NCR5K/C1	5NCR5K/C2	5NCR5K/C3	1.18	M 5	0.39	0.51	1.04	0.16	1.22	0.14	0.31
6NCR5K/C1	6NCR5K/C2	6NCR5K/C3	1.18	M 6	0.39	0.51	1.04	0.16	1.22	0.14	0.31
4NCR6K/C1	4NCR6K/C2	4NCR6K/C3	1.77	M 4	0.39	0.51	1.04	0.16	1.38	0.14	0.31
5NCR6K/C1	5NCR6K/C2	5NCR6K/C3	1.77	M 5	0.39	0.51	1.04	0.16	1.38	0.14	0.31
6NCR6K/C1	6NCR6K/C2	6NCR6K/C3	1.77	M 6	0.39	0.51	1.04	0.16	1.38	0.14	0.31
6NCR7K/C1	6NCR7K/C2	6NCR7K/C3	2.48	M 6	0.53	0.69	1.28	0.26	1.77	0.16	0.43
8NCR7K/C1	8NCR7K/C2	8NCR7K/C3	2.48	M 8	0.53	0.69	1.28	0.26	1.77	0.16	0.43
8NCR8K/C1	8NCR8K/C2	8NCR8K/C3	3.07	M 8	0.63	0.83	1.48	0.31	2.17	0.16	0.55
10NCR8K/C1	10NCR8K/C2	10NCR8K/C3	3.07	M 10	0.63	0.83	1.48	0.31	2.17	0.16	0.55

l₁	d₁	d₃	d₄	h₁	h₂	h₃	h₄ Stroke	t min.

1.18	10 x 32	10 x 24	1/4 x 20	0.39	0.51	1.04	0.16	1.22	0.14	0.31
1.77	10 x 32	10 x 24	1/4 x 20	0.39	0.51	1.04	0.16	1.38	0.14	0.31
2.48	1/4 x 20	5/16 x 18	-	0.53	0.69	1.28	0.26	1.77	0.16	0.43
3.07	5/16 x 18	3/8 x 16	-	0.63	0.83	1.48	0.31	2.17	0.16	0.55

l₁	d₁	d₃	d₄	h₁	h₂	h₃	h₄ Stroke	t min.

1.18	M 3	-	-	0.39	0.51	1.04	0.16	1.22	0.14	0.28
1.18	M 4	M 5	M 6	0.39	0.51	1.04	0.16	1.22	0.14	0.31
1.77	M 4	M 5	M 6	0.39	0.51	1.04	0.16	1.38	0.14	0.31
2.48	M 6	M 8	-	0.53	0.69	1.28	0.26	1.77	0.16	0.43
3.07	M 8	M 10	-	0.63	0.83	1.48	0.31	2.17	0.16	0.55
