WN 304 Straight Adjustable Levers with Push Button, Nylon Plastic, Tapped or Plain Bore Type, with Steel Components

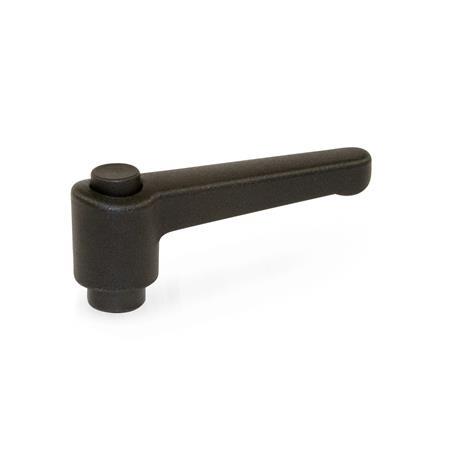

WN 304 Nylon Plastic Straight Adjustable Levers with Push Button, Tapped or Plain Bore Type, with Steel Components Lever color: SW - Black, RAL 9005, textured finish
Push button color: S - Black, RAL 9005
Lever color: SW - Black, RAL 9005, textured finish
Push button color: S - Black, RAL 9005
WN 304 Nylon Plastic Straight Adjustable Levers with Push Button, Tapped or Plain Bore Type, with Steel Components Lever color: SW - Black, RAL 9005, textured finish
Push button color: S - Black, RAL 9005 WN 304 Nylon Plastic Straight Adjustable Levers with Push Button, Tapped or Plain Bore Type, with Steel Components Lever color: OS - Orange, RAL 2004, textured finish
Push button color: G - Gray, RAL 7035 WN 304 Nylon Plastic Straight Adjustable Levers with Push Button, Tapped or Plain Bore Type, with Steel Components Lever color: OS - Orange, RAL 2004, textured finish
Push button color: O - Orange, RAL 2004 WN 304 Nylon Plastic Straight Adjustable Levers with Push Button, Tapped or Plain Bore Type, with Steel Components Lever color: OS - Orange, RAL 2004, textured finish
Push button color: S - Black, RAL 9005 WN 304 Nylon Plastic Straight Adjustable Levers with Push Button, Tapped or Plain Bore Type, with Steel Components Lever color: SW - Black, RAL 9005, textured finish
Push button color: G - Gray, RAL 7035 WN 304 Nylon Plastic Straight Adjustable Levers with Push Button, Tapped or Plain Bore Type, with Steel Components Lever color: SW - Black, RAL 9005, textured finish
Push button color: O - Orange, RAL 2004

Product description

Information

Made in the USA, adjustable levers WN 304 with push button have a straight lever parallel to the clamping surface. For some applications this presents an advantage due to limits of space or for visual reasons.

These levers have proven to be ideal wherever parts have to be clamped in a confined space or in a particular lever position. The insert is connected to the lever via serrations that can easily be disengaged.

Pulling the lever upwards disengages the serrations, allowing it to be swiveled to the ideal clamping position. When releasing the lever, the serrations automatically re-engage.

The push button is a design element and allows for effortless release action. However, this design is limited to applications that do not require the lever to be disassembled.

Specification

Lever body
PlasticKT
Nylon thermoplastic

  • Glass fiber reinforced
  • With molded-in stainless steel inlay
  • Temperature resistant up to 230 °F (110 °C)

Color
Black, RAL 9005, textured finishSWSW
Orange, RAL 2004, textured finishOSOS


Push button
Nylon plastic
Black, RAL 9005SS
Orange, RAL 2004OO
Gray, RAL 7035GG


Insert
Steel, blackened finish


RoHS

On request

Special colors, bores, and threads

Technical drawing

3D
Hide technical drawing
WN 304 Nylon Plastic Straight Adjustable Levers with Push Button, Tapped or Plain Bore Type, with Steel Components sketch

Part Options / Table

Show / Hide columns

Inch

Dimensions in: Inch (change to Metric)
l1d1
Thread
d2 +0.001
Bore
d3d4h1h2h3h4
Stroke
t
min.
1.1810 x 3210 x 241/4 x 20B 1/4-0.390.570.960.160.870.140.35
1.7710 x 3210 x 241/4 x 20B 1/4-0.390.570.960.160.870.140.35
2.481/4 x 205/16 x 18-B 1/4B 5/160.530.761.220.261.120.160.43
3.075/16 x 183/8 x 163/8 x 24B 5/16B 3/80.630.871.420.311.340.160.55
Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)
l1d1
Thread
d2 +0.001
Bore
d3d4h1h2h3h4
Stroke
t
min.
1.18M 3-----0.390.570.960.160.870.140.28
1.18M 4M 5M 6-B 5B 60.390.570.960.160.870.140.35
1.77M 3M 4M 5M 6B 5B 60.390.570.960.160.870.140.35
2.48M 6M 8--B 6B 80.530.761.220.261.120.160.43
3.07M 8M 10--B 8B 100.630.871.420.311.340.160.55

Build & Price

3D Product Configurator
Material

Lever length l1
Thread d1

Inch


Metric


Bore d2

Inch


Metric


Lever color
OS
SW
Push button color
G
O
S

Selected Part

Total US Dollars (net)
$3.90
In Stock: 635
In Stock
Please note our quantity discounts (US Dollars).
MinMaxPrice
1249$3.90
250499$3.58
500999$3.25
≥ 1000$2.93
Prop 65: Not compliant
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
RoHS: Compliant
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: -
If the weight is not listed, please contact our Sales Department for more information.
Phone: 800-877-8351
All Prices are in US Dollars. Taxes Not Included.
