Original design DT.464-SB
Product description

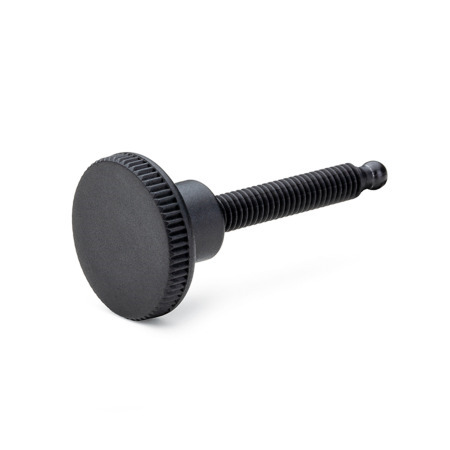

Knurled thumb screws EN 464.11 with ball thrust point can be combined with various thrust pads. They ensure a larger contact surface during clamping and protect surfaces from damage.
The ball thrust point, in combination with the thrust pad, forms a ball joint that adapts to uneven clamping surfaces and prevents the rotational movement from being transferred to the clamping surface during clamping.
The thrust pads can be ordered separately or are supplied loose with EN 464.12 and are easy to assemble and disassemble.
For manufacturing reasons, the ball thrust point has a hole on its face side.
Specification
Plastic, polyamide (PA-HP)
- Glass fiber reinforced
- Operating temperature
-22 °F to 212 °F (-30 °C to +100 °C) - BlackSW
, similar to RAL 9005, matte finish
RoHS
Accessory
Thrust Pads GN 631.2 (NBR)
Thrust Pads GN 631.5 (Stainless Steel)
On request
- GrayGR
, similar to RAL 7040, matte finish
