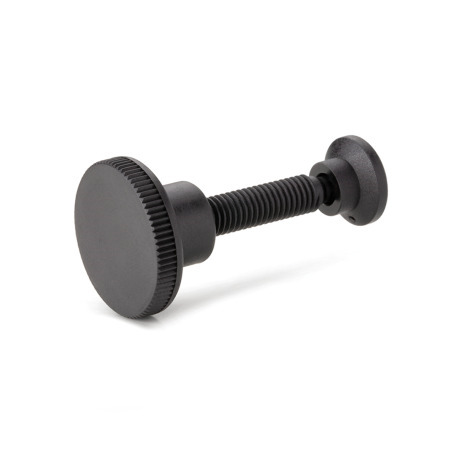

Knurled Thumb Screws EN 464.12

Original design DT.464-SV

Product description

Knurled thumb screws EN 464.12 with ball thrust point can be combined with various thrust pads. They ensure a larger contact surface during clamping and protect surfaces from damage.

The ball thrust point, in combination with the thrust pad, forms a ball joint that adapts to uneven clamping surfaces and prevents the rotational movement from being transferred to the clamping surface during clamping.

The thrust pads can be ordered separately and are easy to assemble and disassemble.

For manufacturing reasons, the ball thrust point has a hole on its face side.

Specification

Knurled Screw
Plastic, polyamide (PA-HP)

Glass fiber reinforced
Operating temperature
−22 °F to 212 °F (-30 °C to +100 °C)
BlackSW, similar to RAL 9005, matte finish

Thrust pad GN 631
Plastic, polyacetal (POM)

Operating temperature up to 176 °F (+80 °C)
Black, matt finish

RoHS

On request

GrayGR, similar to RAL 7040, matte finish

Your Contact

You are looking for a Winco partner near you?

Part Number SW	d₁	l₁	d₅	d₂	d₃	d₄	h	k	l₂	Max. tightening torque in Nm


464.12-M6-25-15-SW	M 6	0.98	0.59	0.94	0.47	0.18	0.59	0.20	0.30	1
464.12-M6-35-15-SW	M 6	1.38	0.59	0.94	0.47	0.18	0.59	0.20	0.30	1
464.12-M6-25-18-SW	M 6	0.98	0.71	0.94	0.47	0.18	0.59	0.20	0.36	1
464.12-M6-35-18-SW	M 6	1.38	0.71	0.94	0.47	0.18	0.59	0.20	0.36	1
464.12-M6-25-21-SW	M 6	0.98	0.83	0.94	0.47	0.18	0.59	0.20	0.39	1
464.12-M6-35-21-SW	M 6	1.38	0.83	0.94	0.47	0.18	0.59	0.20	0.39	1
464.12-M6-25-25-SW	M 6	0.98	0.98*	0.94	0.47	0.18	0.59	0.20	0.41	1
464.12-M6-35-25-SW	M 6	1.38	0.98*	0.94	0.47	0.18	0.59	0.20	0.41	1
464.12-M6-25-32-SW	M 6	0.98	1.26*	0.94	0.47	0.18	0.59	0.20	0.43	1
464.12-M6-35-32-SW	M 6	1.38	1.26*	0.94	0.47	0.18	0.59	0.20	0.43	1
464.12-M8-30-15-SW	M 8	1.18	0.59*	1.18	0.63	0.24	0.71	0.24	0.30	2.5
464.12-M8-35-15-SW	M 8	1.38	0.59*	1.18	0.63	0.24	0.71	0.24	0.30	2.5
464.12-M8-30-18-SW	M 8	1.18	0.71	1.18	0.63	0.24	0.71	0.24	0.36	2.5
464.12-M8-35-18-SW	M 8	1.38	0.71	1.18	0.63	0.24	0.71	0.24	0.36	2.5
464.12-M8-30-21-SW	M 8	1.18	0.83	1.18	0.63	0.24	0.71	0.24	0.39	2.5
464.12-M8-35-21-SW	M 8	1.38	0.83	1.18	0.63	0.24	0.71	0.24	0.39	2.5
464.12-M8-30-25-SW	M 8	1.18	0.98	1.18	0.63	0.24	0.71	0.24	0.41	2.5
464.12-M8-35-25-SW	M 8	1.38	0.98	1.18	0.63	0.24	0.71	0.24	0.41	2.5
464.12-M8-30-32-SW	M 8	1.18	1.26	1.18	0.63	0.24	0.71	0.24	0.43	2.5
464.12-M8-35-32-SW	M 8	1.38	1.26	1.18	0.63	0.24	0.71	0.24	0.43	2.5
464.12-M8-30-40-SW	M 8	1.18	1.57	1.18	0.63	0.24	0.71	0.24	0.51	2.5
464.12-M8-35-40-SW	M 8	1.38	1.57	1.18	0.63	0.24	0.71	0.24	0.51	2.5

d₁	l₁	d₅	d₂	d₃	d₄	h	k	l₂	Max. tightening torque in Nm

M 6	0.98	1.38	0.59	0.94	0.47	0.18	0.59	0.20	0.30	1
M 6	0.98	1.38	0.71	0.94	0.47	0.18	0.59	0.20	0.36	1
M 6	0.98	1.38	0.83	0.94	0.47	0.18	0.59	0.20	0.39	1
M 6	0.98	1.38	0.98*	0.94	0.47	0.18	0.59	0.20	0.41	1
M 6	0.98	1.38	1.26*	0.94	0.47	0.18	0.59	0.20	0.43	1
M 8	1.18	1.38	0.59*	1.18	0.63	0.24	0.71	0.24	0.30	2.5
M 8	1.18	1.38	0.71	1.18	0.63	0.24	0.71	0.24	0.36	2.5
M 8	1.18	1.38	0.83	1.18	0.63	0.24	0.71	0.24	0.39	2.5
M 8	1.18	1.38	0.98	1.18	0.63	0.24	0.71	0.24	0.41	2.5
M 8	1.18	1.38	1.26	1.18	0.63	0.24	0.71	0.24	0.43	2.5
M 8	1.18	1.38	1.57	1.18	0.63	0.24	0.71	0.24	0.51	2.5

Min	Max	Price
1	9	US$3.11
10	249	US$2.99
250	499	US$2.83
≥ 500		US$2.54
