EN 464.9 Knurled Thumb Screws Plastic, High Type, with / without Internal Hex

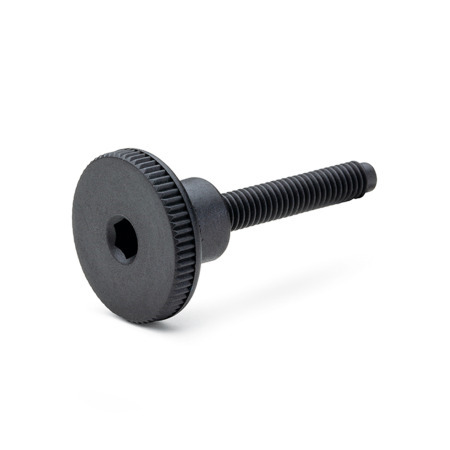

Knurled Thumb Screws EN 464.9: Plastic, High Type, with / without Internal Hex

Original design DT.464 / DT.464-EH

Identification no.: 2 - With internal hex
Color: SW - Black

Plastic Characteristics

Product description

Knurled thumb screws EN 464.9 are made of plastic, making them lightweight, resistant to corrosion and electrically insulating. They can be used for performing tool-free adjustments or clamping operations on fixtures and mechanisms.

The version with identification no. 2 features an internal hex on the face side for use as a drive.

For manufacturing reasons, the pivot has a hole on its face side.

Specification

Plastic, polyamide (PA-HP)

Glass fiber reinforced
Operating temperature
-22 °F to 212 °F (-30 °C to +100 °C)
BlackSW, similar to RAL 9005, matte finish

RoHS

On request

GrayGR, similar to RAL 7040, matte finish

Hide technical drawing

Part Options / Table

Identification no.

1	Without internal hex
2	With internal hex

Part Number SW	d₁	Length l	d₂	d₃	h	k	A/F	Max. tightening torque in Nm

464.9-M4-8-1-SW	M 4	0.31	0.63	0.31	0.37	0.14	-	0.5
464.9-M4-12-1-SW	M 4	0.47	0.63	0.31	0.37	0.14	-	0.5
464.9-M4-16-1-SW	M 4	0.63	0.63	0.31	0.37	0.14	-	0.5
464.9-M4-20-1-SW	M 4	0.79	0.63	0.31	0.37	0.14	-	0.5
464.9-M5-8-1-SW	M 5	0.31	0.79	0.39	0.45	0.16	-	0.8
464.9-M5-12-1-SW	M 5	0.47	0.79	0.39	0.45	0.16	-	0.8
464.9-M5-16-1-SW	M 5	0.63	0.79	0.39	0.45	0.16	-	0.8
464.9-M5-20-1-SW	M 5	0.79	0.79	0.39	0.45	0.16	-	0.8
464.9-M5-25-1-SW	M 5	0.98	0.79	0.39	0.45	0.16	-	0.8
464.9-M6-12-1-SW	M 6	0.47	0.94	0.47	0.59	0.20	-	1
464.9-M6-16-1-SW	M 6	0.63	0.94	0.47	0.59	0.20	-	1
464.9-M6-20-1-SW	M 6	0.79	0.94	0.47	0.59	0.20	-	1
464.9-M6-25-1-SW	M 6	0.98	0.94	0.47	0.59	0.20	-	1
464.9-M6-30-1-SW	M 6	1.18	0.94	0.47	0.59	0.20	-	1
464.9-M8-15-1-SW	M 8	0.59	1.18	0.63	0.71	0.24	-	2.5
464.9-M8-20-1-SW	M 8	0.79	1.18	0.63	0.71	0.24	-	2.5
464.9-M8-25-1-SW	M 8	0.98	1.18	0.63	0.71	0.24	-	2.5
464.9-M8-30-1-SW	M 8	1.18	1.18	0.63	0.71	0.24	-	2.5

Part Number SW	d₁	Length l	d₂	d₃	h	k	A/F	Max. tightening torque in Nm

464.9-M4-8-2-SW	M 4	0.31	0.63	0.31	0.37	0.14	4	0.5
464.9-M4-12-2-SW	M 4	0.47	0.63	0.31	0.37	0.14	4	0.5
464.9-M4-16-2-SW	M 4	0.63	0.63	0.31	0.37	0.14	4	0.5
464.9-M4-20-2-SW	M 4	0.79	0.63	0.31	0.37	0.14	4	0.5
464.9-M5-8-2-SW	M 5	0.31	0.79	0.39	0.45	0.16	4	0.8
464.9-M5-12-2-SW	M 5	0.47	0.79	0.39	0.45	0.16	4	0.8
464.9-M5-16-2-SW	M 5	0.63	0.79	0.39	0.45	0.16	4	0.8
464.9-M5-20-2-SW	M 5	0.79	0.79	0.39	0.45	0.16	4	0.8
464.9-M5-25-2-SW	M 5	0.98	0.79	0.39	0.45	0.16	4	0.8
464.9-M6-12-2-SW	M 6	0.47	0.94	0.47	0.59	0.20	5	1
464.9-M6-16-2-SW	M 6	0.63	0.94	0.47	0.59	0.20	5	1
464.9-M6-20-2-SW	M 6	0.79	0.94	0.47	0.59	0.20	5	1
464.9-M6-25-2-SW	M 6	0.98	0.94	0.47	0.59	0.20	5	1
464.9-M6-30-2-SW	M 6	1.18	0.94	0.47	0.59	0.20	5	1
464.9-M8-15-2-SW	M 8	0.59	1.18	0.63	0.71	0.24	6	2.5
464.9-M8-20-2-SW	M 8	0.79	1.18	0.63	0.71	0.24	6	2.5
464.9-M8-25-2-SW	M 8	0.98	1.18	0.63	0.71	0.24	6	2.5
464.9-M8-30-2-SW	M 8	1.18	1.18	0.63	0.71	0.24	6	2.5

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁	Length l					d₂	d₃	h	k	A/F	Max. tightening torque in Nm

M 4	0.31	0.47	0.63	0.79	-	0.63	0.31	0.37	0.14	4	0.5
M 5	0.31	0.47	0.63	0.79	0.98	0.79	0.39	0.45	0.16	4	0.8
M 6	0.47	0.63	0.79	0.98	1.18	0.94	0.47	0.59	0.20	5	1
M 8	0.59	0.79	0.98	1.18	-	1.18	0.63	0.71	0.24	6	2.5

Build & Price

Selected Part

Part Number

Total (net)

US$1.38

Call / Email for Delivery Time

Create Project List

Save as Favorites

Please note our quantity discounts (US Dollars).

Min	Max	Price
1	9	US$1.38
10	249	US$1.33
250	499	US$1.26
≥ 500		US$1.13

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.003 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
