EN 653.9 Knurled Thumb Screws Plastic, Flat Type, with Drive for Slotted Screwdriver

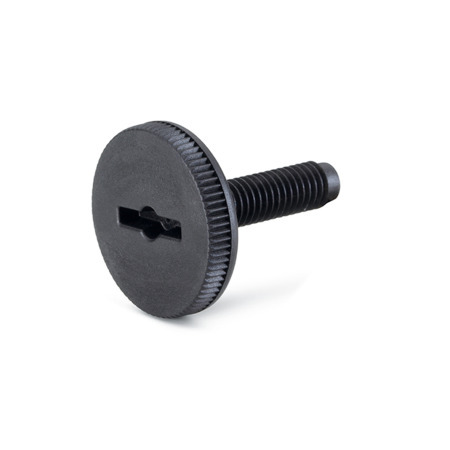

Knurled Thumb Screws EN 653.9: Plastic, Flat Type, with Drive for Slotted Screwdriver

Original design DT.653-AV

Plastic Characteristics

Product description

Knurled screws EN 653.9 are made of plastic, making them lightweight, resistant to corrosion and electrically insulating. They can be used for performing tool-free adjustments or clamping operations on fixtures and mechanisms.

As an alternative to the knurling, the slot on the face side allows a slotted screwdriver to be used.

For manufacturing reasons, the pivot has a hole on its face side.

Specification

Plastic, polyamide (PA-HP)

Glass fiber reinforced
Operating temperature
−22 °F to 212 °F. (-30 °C to +100 °C)
BlackSW, similar to RAL 9005, matte finish

RoHS

On request

GrayGR, similar to RAL 7040, matte finish

Hide technical drawing

Part Options / Table

Identification no.

3	With drive for slotted screwdriver

Part Number SW	d₁	Length l	d₂	k	Drive SL for slotted screwdriver	Max. tightening torque in Nm


653.9-M4-8-3-SW	M 4	0.31	0.63	0.14	SL 6.5	0.5
653.9-M4-12-3-SW	M 4	0.47	0.63	0.14	SL 6.5	0.5
653.9-M4-16-3-SW	M 4	0.63	0.63	0.14	SL 6.5	0.5
653.9-M4-20-3-SW	M 4	0.79	0.63	0.14	SL 6.5	0.5
653.9-M5-8-3-SW	M 5	0.31	0.79	0.16	SL 10	0.8
653.9-M5-12-3-SW	M 5	0.47	0.79	0.16	SL 10	0.8
653.9-M5-16-3-SW	M 5	0.63	0.79	0.16	SL 10	0.8
653.9-M5-20-3-SW	M 5	0.79	0.79	0.16	SL 10	0.8
653.9-M5-25-3-SW	M 5	0.98	0.79	0.16	SL 10	0.8
653.9-M6-12-3-SW	M 6	0.47	0.94	0.20	SL 12	1
653.9-M6-16-3-SW	M 6	0.63	0.94	0.20	SL 12	1
653.9-M6-20-3-SW	M 6	0.79	0.94	0.20	SL 12	1
653.9-M6-25-3-SW	M 6	0.98	0.94	0.20	SL 12	1
653.9-M6-30-3-SW	M 6	1.18	0.94	0.20	SL 12	1
653.9-M8-15-3-SW	M 8	0.59	1.18	0.24	SL 14	2.5
653.9-M8-20-3-SW	M 8	0.79	1.18	0.24	SL 14	2.5
653.9-M8-25-3-SW	M 8	0.98	1.18	0.24	SL 14	2.5
653.9-M8-30-3-SW	M 8	1.18	1.18	0.24	SL 14	2.5

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁	Length l					d₂	k	Drive SL for slotted screwdriver	Max. tightening torque in Nm

M 4	0.31	0.47	0.63	0.79	-	0.63	0.14	SL 6.5	0.5
M 5	0.31	0.47	0.63	0.79	0.98	0.79	0.16	SL 10	0.8
M 6	0.47	0.63	0.79	0.98	1.18	0.94	0.20	SL 12	1
M 8	0.59	0.79	0.98	1.18	-	1.18	0.24	SL 14	2.5
