GN 851.1 Vertical Latch Type Toggle Clamps Stainless Steel, with Horizontal Mounting Base

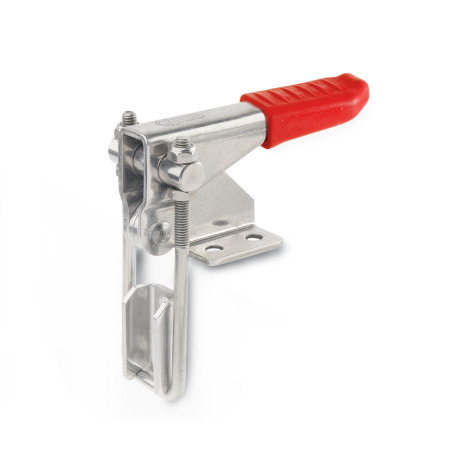

GN 851.1 Stainless Steel Vertical Latch Type Toggle Clamps, with Horizontal Mounting Base Type: T3 - With U-bolt latch, with catch
Type: T3 - With U-bolt latch, with catch
GN 851.1 Stainless Steel Vertical Latch Type Toggle Clamps, with Horizontal Mounting Base Type: T3 - With U-bolt latch, with catch GN 851.1 Stainless Steel Vertical Latch Type Toggle Clamps, with Horizontal Mounting Base Type: T - Without U-bolt latch, with catch

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products

Product description

Information

The stroke of the U-bolt latch of GN 851.1 vertical latch type toggle clamps can be adjusted within its range.

In the clamped position the U-bolt latch with clamping arm is perpendicular to the clamping arm and the plane of the operating handle.

In addition to the standard lengths of the U-bolt latches shown in the table, a variety of other lengths are also available under the GN 951.1 series.

Specification

Stainless steelNI
  • Parts in sheet metal / U-bolt latch
    European Standard No. 1.4301 (AISI 304)
  • Pin
    European Standard No.1.4305 (AISI 303)

All moving parts lubricated with special grease

Hand grip
High quality, oil resistant red plastic

RoHS compliant

Technical drawing

3D
Hide technical drawing
GN 851.1 Stainless Steel Vertical Latch Type Toggle Clamps, with Horizontal Mounting Base sketch

Part Options / Table

Type

T3With U-bolt latch, with catch
TWithout U-bolt latch, with catch
Show / Hide columns

Metric

Dimensions in: Inch | Metric
SizeFH in N
Holding capacity
a1a2b1b2b3b4b5d1
Thread
d2h1h2
160360 lbf (1600 N)0.200.981.021.380.831.000.55M 40.171.460.39
320719 lbf (3200 N)0.311.461.421.731.261.460.87M 60.262.130.59
7001686 lbf (7500 N)0.511.772.052.131.501.911.02M 80.332.640.91
Show / Hide columns
Dimensions in: Inch (change to Metric)
Sizel1
l2
min.
m1m2m3m4m5r ≈
at w2 = 0
sw1
Stroke
w2
Adjustable
Length
1602.680.180.870.260.510.260.561.970.081.360.47
3204.170.241.000.330.750.410.813.070.122.090.83
7005.790.311.440.391.260.531.064.020.142.521.18

Build & Price

Size
Type


Material

Selected Part

Total US Dollars (net)
$30.25
In stock: 49
In stock
Please note our quantity discounts (US Dollars).
MinMaxPrice
149$30.25
5099$27.73
100249$25.21
≥ 250$22.69
Weight: 0.227 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351
RoHS compliant: Yes
This article conforms to RoHS, which means it complies with EU Directive 2011/65/EU for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
All Prices are in US Dollars. Taxes Not Included.
