GN 131.1 Two-Way Connector Clamps Aluminum, For Single Linear Actuator System

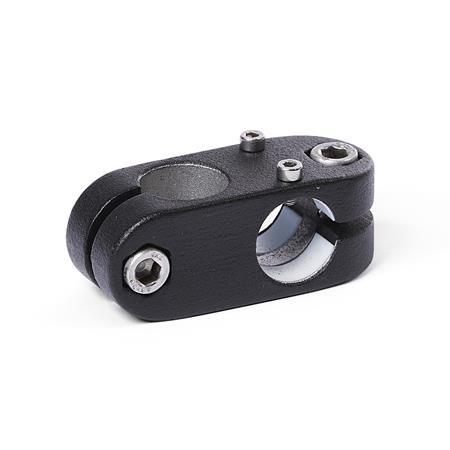

GN 131.1 Aluminum, Linear Actuator Two-Way Connector Clamps, For Single Linear Actuator System  Bore d<sub>1</sub>: G 18
Finish: SW - Black, RAL 9005, textured finish
Bore d1: G 18
Finish: SW - Black, RAL 9005, textured finish
GN 131.1 Aluminum, Linear Actuator Two-Way Connector Clamps, For Single Linear Actuator System  Bore d<sub>1</sub>: G 18
Finish: SW - Black, RAL 9005, textured finish GN 131.1 Aluminum, Linear Actuator Two-Way Connector Clamps, For Single Linear Actuator System  Bore d<sub>1</sub>: B 18
Finish: SW - Black, RAL 9005, textured finish

Product description

Information

GN 131.1 linear actuator connector clamps are normally supplied only in connection with a mounted actuator and for function control.

In the standard version, the clamping force of the clamp onto the tube is achieved via the socket cap screws and hex nuts with nylon insert.

Clamping kit GN 911 (sold separately) can be used to replace the DIN 912 cap screws with adjustable levers. They include lever, spacer bushing, and hex nut, unassembled. See GN 911 to order separately; see right hand column in tables for part numbers of appropriate kit.

Specification

Aluminum
powder coated
Black, RAL 9005, textured finishSWSW

Clamping bores machined

Slide bushing insert
Plastic (PA / PTFE)

Cap screws DIN 912
Stainless Steel, European Standard No. 1.4301 (AISI 304)

Nylon insert hex nuts DIN 985
Stainless Steel, European Standard No. 1.4301 (AISI 304)


RoHS compliant

Accessory

Clamping kit GN 911

On request

Inch size bores

Technical drawing

3D
Hide technical drawing
GN 131.1 Aluminum, Linear Actuator Two-Way Connector Clamps, For Single Linear Actuator System  sketch

Part Options / Table

Identification no.

2With 2 DIN 912 stainless steel clamping screws
Show / Hide columns

Metric

Dimensions in: Inch | Metric
d1
Bore B
without
slide bushing

Bore G
with
slide bushing
d2
Bore B
without
slide bushing
d3
Clamping
thread
d4
Mounting
screw on the
follower
k
Clamping
length
Length l mClamping kit for d3
B 18-B 18M 6M 30.982.520.79911M622
-G 18B 18M 6M 30.982.520.79911M622

Build & Price

3D Product Configurator
Bore d1
Bore d2
Identification No.

Finish
SW

Selected Part

Total US Dollars (net)
$74.91
In stock: 0
Call / Email for Delivery Time
Please note our quantity discounts (US Dollars).
MinMaxPrice
19$74.91
1024$68.67
2549$62.43
≥ 50$56.18
Prop 65: Not compliant
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
RoHS: Compliant
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 0.141 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351
All Prices are in US Dollars. Taxes Not Included.
