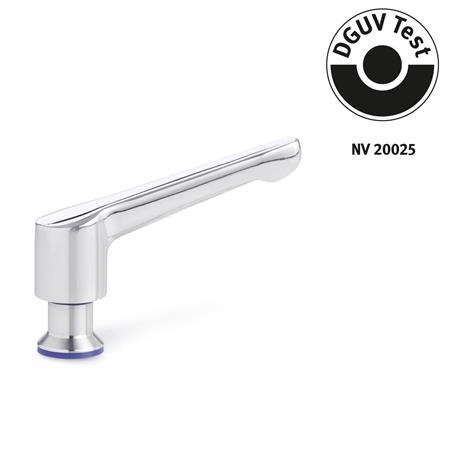

Adjustable levers GN 305 with solid stainless steel lever body are certified according to DGUV testing principles, making them suitable for use in in hygienic areas.
The sealed mounting surface enables fastening without dead spaces. The high quality finish as well as the impervious exterior surfaces prevent adherence of dirt and facilitates cleaning.
Adjustable levers are ideal whenever parts have to be clamped in a confined space or in a particular lever position.
The tapped insert is moveably attached to the handle with serrations. When pulling up on the handle the serration frees itself and can be re-located into any required position. Engagement is achieved by releasing the lever.
Lever body
Stainless steel
precision casting AISI 316
Polished finish (Ra < 0.8 µm)PL
Tapped insert
Stainless steel AISI 304
Sealing ring / wiper
RoHS
| l1 | d1 | d2 | d3 | d4 | h1 | h2 | h3 | h4 Stroke | t min. |
|---|---|---|---|---|---|---|---|---|---|
| 2.48 | M 6 | 0.55 | 0.58 | 0.75 | 1.72 | 0.64 | 2.37 | 0.10 | 0.39 |
| 2.48 | M 8 | 0.71 | 0.74 | 0.75 | 1.80 | 0.72 | 2.44 | 0.10 | 0.47 |
| 3.07 | M 8 | 0.71 | 0.74 | 0.94 | 1.94 | 0.65 | 2.73 | 0.12 | 0.47 |
| 3.07 | M 10 | 0.87 | 0.90 | 0.94 | 2.02 | 0.73 | 2.81 | 0.12 | 0.59 |
| Min | Max | Price |
|---|---|---|
| 1 | 9 | $68.93 |
| 10 | 24 | $63.19 |
| 25 | 49 | $57.45 |
| ≥ 50 | $51.70 |
