WN 400 Fixed Clamping Levers Nylon Plastic, Threaded Stud Type, with Steel Components


Product description

Information

WN 400 non-adjustable hand levers are the results of modern industrial design: glass fiber reinforced thermo-plastic handle with molded-in metal insert. Handle and tapped insert are assembled together via the screw and bushing.

The solid steel tapped insert allows the operator the ability to apply additional torque where needed to the item being clamped or fastened.

Specification

Handle
Glass fiber reinforced thermoplastic with molded-in stainless steel inlay
  • temperature resistant up to 230 °F (110 °C)

Color
Black, RAL 9005, textured finishSWSW
Orange, RAL 2004, textured finishOSOS
Gray, RAL 7035GRGR

Stud type insert and screw
Steel, black oxide finish

Bushing
Stainless steel

RoHS compliant

On request

Non-adjustable plastic levers with all stainless steel components

Metric threaded stud sizes

Technical drawing

Hide technical drawing

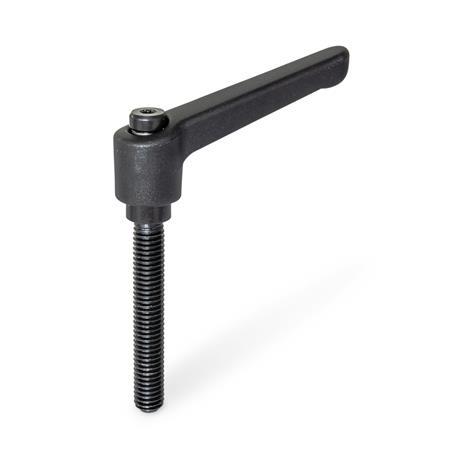

WN 400 Plastic Fixed Clamping Levers, with Steel Threaded Stud sketch

Part Options / Table

Show / Hide columns

Inch

Dimensions in: Inch (change to Metric)
l1d1
Thread
l2
Stud Length
d3d4h1h2h3
1.7710 x 32.791.26--.39.57.96.161.38
1.7710 x 24.791.26--.39.57.96.161.38
1.771/4 x 20.791.261.77-.39.57.96.161.38
2.481/4 x 20.98---.51.051.22.261.77
2.485/16 x 18.791.261.572.48.51.051.22.261.77
2.483/8 x 16.791.262.48-.51.051.22.261.77
3.073/8 x 16.791.261.572.48.63.861.42.312.17
3.623/8 x 161.262.48--.75.991.69.432.56
3.621/2 x 131.261.572.48-.75.991.69.432.56

Build & Price

l1
d1
l2
Color
GR
OS
SW

Selected Part

Total USD (net)
$3.29
In stock: 79
In stock
Please note our quantity discounts (USD).
MinMaxPrice
1249$3.29
250499$3.01
500999$2.74
≥ 1000$2.47
Weight: -
If weight is not listed, please contact our Sales Department for additional information regarding weight.
