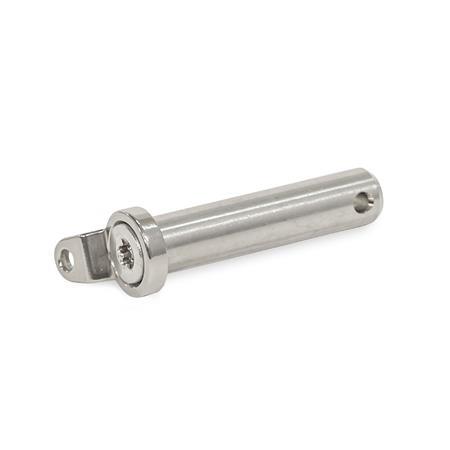

Assembly Pins GN 2342

Type: E - With eyelet washer
Identification no.: 2 - With cross hole for GN 1024 spring cotter pin

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

Product description

Assembly pins GN 2342 are characterized by their use in diverse applications. Depending on the requirement there are three washer types to choose from, which place the assembly pin in an axial position in its inserted direction.

With the eyelet washer (Type E), the assembly pin and a corresponding GN 1024 spring cotter pin can be secured to prevent loss using a retaining cable or a ball chain. The mounting shackle washer (type L) simultaneously acts as loss and anti-rotation protection.

Assembly pins according to identification no. 2 are secured against falling out via a transverse drill hole which is aligned to the GN 1024 spring cotter pin.

The technical section contains the load ratings for the double shear strength (breaking strength).

Specification

Assembly pin
Stainless steelNI AISI 304

Washer
Stainless steel

Type B: AISI 304
Turned
Type E: AISI 316LHC
Metal injection molded
Type L: AISI 316LHC
Sintered

Countersunk screw
Stainless steel AISI 304

Not removable
Loctited

RoHS

Accessory

Spring Cotter Pins GN 1024
Ball Chains GN 111
Ball Chains GN 111.5
Retaining Cables GN 111.2
Retaining Cables GN 111.2
Key Rings GN 111.3

GN 2342 Stainless Steel Assembly Pins sketch

Hide technical drawing

Part Options / Table

Type

B	With plain washer
E	With eyelet washer
L	With mounting shackle washer (only identification no. 1)

Identification no.

1	Without cross hole
2	With cross hole for GN 1024 spring cotter pin

Part Number 1 - Without cross hole	Part Number 2 - With cross hole for GN 1024 spring cotter pin	d₁ -0.002	l₁	d₂	d₃	d₄	d₅	l₂	l₃	l₄	l₅	l₆	l₇	s₁	s₂	Suitable key ring Ø for type E	Suitable spring cotter pins for identification no. 2

2342-NI-8-16-B-1	2342-NI-8-16-B-2	0.315 -0.002	0.63	0.10	0.47	-	-	0.22	-	-	-	-	-	0.12	0.16	-	GN 1024-NI-2-D
2342-NI-8-20-B-1	2342-NI-8-20-B-2	0.315 -0.002	0.79	0.10	0.47	-	-	0.22	-	-	-	-	-	0.12	0.16	-	GN 1024-NI-2-D
2342-NI-8-24-B-1	2342-NI-8-24-B-2	0.315 -0.002	0.94	0.10	0.47	-	-	0.22	-	-	-	-	-	0.12	0.16	-	GN 1024-NI-2-D
2342-NI-8-28-B-1	2342-NI-8-28-B-2	0.315 -0.002	1.10	0.10	0.47	-	-	0.22	-	-	-	-	-	0.12	0.16	-	GN 1024-NI-2-D
2342-NI-8-30-B-1	2342-NI-8-30-B-2	0.315 -0.002	1.18	0.10	0.47	-	-	0.22	-	-	-	-	-	0.12	0.16	-	GN 1024-NI-2-D
2342-NI-8-32-B-1	2342-NI-8-32-B-2	0.315 -0.002	1.26	0.10	0.47	-	-	0.22	-	-	-	-	-	0.12	0.16	-	GN 1024-NI-2-D
2342-NI-8-35-B-1	2342-NI-8-35-B-2	0.315 -0.002	1.38	0.10	0.47	-	-	0.22	-	-	-	-	-	0.12	0.16	-	GN 1024-NI-2-D
2342-NI-8-40-B-1	2342-NI-8-40-B-2	0.315 -0.002	1.57	0.10	0.47	-	-	0.22	-	-	-	-	-	0.12	0.16	-	GN 1024-NI-2-D
2342-NI-8-45-B-1	2342-NI-8-45-B-2	0.315 -0.002	1.77	0.10	0.47	-	-	0.22	-	-	-	-	-	0.12	0.16	-	GN 1024-NI-2-D
2342-NI-8-50-B-1	2342-NI-8-50-B-2	0.315 -0.002	1.97	0.10	0.47	-	-	0.22	-	-	-	-	-	0.12	0.16	-	GN 1024-NI-2-D
2342-NI-8-55-B-1	2342-NI-8-55-B-2	0.315 -0.002	2.17	0.10	0.47	-	-	0.22	-	-	-	-	-	0.12	0.16	-	GN 1024-NI-2-D
2342-NI-8-60-B-1	2342-NI-8-60-B-2	0.315 -0.002	2.36	0.10	0.47	-	-	0.22	-	-	-	-	-	0.12	0.16	-	GN 1024-NI-2-D
2342-NI-10-20-B-1	2342-NI-10-20-B-2	0.394 -0.002	0.79	0.10	0.59	-	-	0.24	-	-	-	-	-	0.12	0.16	-	GN 1024-NI-2-E / ...-D
2342-NI-10-24-B-1	2342-NI-10-24-B-2	0.394 -0.002	0.94	0.10	0.59	-	-	0.24	-	-	-	-	-	0.12	0.16	-	GN 1024-NI-2-E / ...-D
2342-NI-10-30-B-1	2342-NI-10-30-B-2	0.394 -0.002	1.18	0.10	0.59	-	-	0.24	-	-	-	-	-	0.12	0.16	-	GN 1024-NI-2-E / ...-D
2342-NI-10-35-B-1	2342-NI-10-35-B-2	0.394 -0.002	1.38	0.10	0.59	-	-	0.24	-	-	-	-	-	0.12	0.16	-	GN 1024-NI-2-E / ...-D
2342-NI-10-40-B-1	2342-NI-10-40-B-2	0.394 -0.002	1.57	0.10	0.59	-	-	0.24	-	-	-	-	-	0.12	0.16	-	GN 1024-NI-2-E / ...-D
2342-NI-10-45-B-1	2342-NI-10-45-B-2	0.394 -0.002	1.77	0.10	0.59	-	-	0.24	-	-	-	-	-	0.12	0.16	-	GN 1024-NI-2-E / ...-D
2342-NI-10-50-B-1	2342-NI-10-50-B-2	0.394 -0.002	1.97	0.10	0.59	-	-	0.24	-	-	-	-	-	0.12	0.16	-	GN 1024-NI-2-E / ...-D
2342-NI-10-55-B-1	2342-NI-10-55-B-2	0.394 -0.002	2.17	0.10	0.59	-	-	0.24	-	-	-	-	-	0.12	0.16	-	GN 1024-NI-2-E / ...-D
2342-NI-10-60-B-1	2342-NI-10-60-B-2	0.394 -0.002	2.36	0.10	0.59	-	-	0.24	-	-	-	-	-	0.12	0.16	-	GN 1024-NI-2-E / ...-D
2342-NI-10-65-B-1	2342-NI-10-65-B-2	0.394 -0.002	2.56	0.10	0.59	-	-	0.24	-	-	-	-	-	0.12	0.16	-	GN 1024-NI-2-E / ...-D
2342-NI-10-70-B-1	2342-NI-10-70-B-2	0.394 -0.002	2.76	0.10	0.59	-	-	0.24	-	-	-	-	-	0.12	0.16	-	GN 1024-NI-2-E / ...-D
2342-NI-10-80-B-1	2342-NI-10-80-B-2	0.394 -0.002	3.15	0.10	0.59	-	-	0.24	-	-	-	-	-	0.12	0.16	-	GN 1024-NI-2-E / ...-D
2342-NI-12-20-B-1	2342-NI-12-20-B-2	0.472 -0.002	0.79	0.10	0.67	-	-	0.28	-	-	-	-	-	0.16	0.18	-	GN 1024-NI-2-E / ...-D
2342-NI-12-24-B-1	2342-NI-12-24-B-2	0.472 -0.002	0.94	0.10	0.67	-	-	0.28	-	-	-	-	-	0.16	0.18	-	GN 1024-NI-2-E / ...-D
2342-NI-12-30-B-1	2342-NI-12-30-B-2	0.472 -0.002	1.18	0.10	0.67	-	-	0.28	-	-	-	-	-	0.16	0.18	-	GN 1024-NI-2-E / ...-D
2342-NI-12-35-B-1	2342-NI-12-35-B-2	0.472 -0.002	1.38	0.10	0.67	-	-	0.28	-	-	-	-	-	0.16	0.18	-	GN 1024-NI-2-E / ...-D
2342-NI-12-40-B-1	2342-NI-12-40-B-2	0.472 -0.002	1.57	0.10	0.67	-	-	0.28	-	-	-	-	-	0.16	0.18	-	GN 1024-NI-2-E / ...-D
2342-NI-12-45-B-1	2342-NI-12-45-B-2	0.472 -0.002	1.77	0.10	0.67	-	-	0.28	-	-	-	-	-	0.16	0.18	-	GN 1024-NI-2-E / ...-D
2342-NI-12-50-B-1	2342-NI-12-50-B-2	0.472 -0.002	1.97	0.10	0.67	-	-	0.28	-	-	-	-	-	0.16	0.18	-	GN 1024-NI-2-E / ...-D
2342-NI-12-55-B-1	2342-NI-12-55-B-2	0.472 -0.002	2.17	0.10	0.67	-	-	0.28	-	-	-	-	-	0.16	0.18	-	GN 1024-NI-2-E / ...-D
2342-NI-12-60-B-1	2342-NI-12-60-B-2	0.472 -0.002	2.36	0.10	0.67	-	-	0.28	-	-	-	-	-	0.16	0.18	-	GN 1024-NI-2-E / ...-D
2342-NI-12-65-B-1	2342-NI-12-65-B-2	0.472 -0.002	2.56	0.10	0.67	-	-	0.28	-	-	-	-	-	0.16	0.18	-	GN 1024-NI-2-E / ...-D
2342-NI-12-70-B-1	2342-NI-12-70-B-2	0.472 -0.002	2.76	0.10	0.67	-	-	0.28	-	-	-	-	-	0.16	0.18	-	GN 1024-NI-2-E / ...-D
2342-NI-12-80-B-1	2342-NI-12-80-B-2	0.472 -0.002	3.15	0.10	0.67	-	-	0.28	-	-	-	-	-	0.16	0.18	-	GN 1024-NI-2-E / ...-D
2342-NI-16-32-B-1	2342-NI-16-32-B-2	0.630 -0.002	1.26	0.14	0.87	-	-	0.31	-	-	-	-	-	0.16	0.18	-	GN 1024-NI-3-E / ...-D
2342-NI-16-35-B-1	2342-NI-16-35-B-2	0.630 -0.002	1.38	0.14	0.87	-	-	0.31	-	-	-	-	-	0.16	0.18	-	GN 1024-NI-3-E / ...-D
2342-NI-16-40-B-1	2342-NI-16-40-B-2	0.630 -0.002	1.57	0.14	0.87	-	-	0.31	-	-	-	-	-	0.16	0.18	-	GN 1024-NI-3-E / ...-D
2342-NI-16-45-B-1	2342-NI-16-45-B-2	0.630 -0.002	1.77	0.14	0.87	-	-	0.31	-	-	-	-	-	0.16	0.18	-	GN 1024-NI-3-E / ...-D
2342-NI-16-50-B-1	2342-NI-16-50-B-2	0.630 -0.002	1.97	0.14	0.87	-	-	0.31	-	-	-	-	-	0.16	0.18	-	GN 1024-NI-3-E / ...-D
2342-NI-16-55-B-1	2342-NI-16-55-B-2	0.630 -0.002	2.17	0.14	0.87	-	-	0.31	-	-	-	-	-	0.16	0.18	-	GN 1024-NI-3-E / ...-D
2342-NI-16-60-B-1	2342-NI-16-60-B-2	0.630 -0.002	2.36	0.14	0.87	-	-	0.31	-	-	-	-	-	0.16	0.18	-	GN 1024-NI-3-E / ...-D
2342-NI-16-65-B-1	2342-NI-16-65-B-2	0.630 -0.002	2.56	0.14	0.87	-	-	0.31	-	-	-	-	-	0.16	0.18	-	GN 1024-NI-3-E / ...-D
2342-NI-16-70-B-1	2342-NI-16-70-B-2	0.630 -0.002	2.76	0.14	0.87	-	-	0.31	-	-	-	-	-	0.16	0.18	-	GN 1024-NI-3-E / ...-D
2342-NI-16-80-B-1	2342-NI-16-80-B-2	0.630 -0.002	3.15	0.14	0.87	-	-	0.31	-	-	-	-	-	0.16	0.18	-	GN 1024-NI-3-E / ...-D
2342-NI-16-90-B-1	2342-NI-16-90-B-2	0.630 -0.002	3.54	0.14	0.87	-	-	0.31	-	-	-	-	-	0.16	0.18	-	GN 1024-NI-3-E / ...-D
2342-NI-16-100-B-1	2342-NI-16-100-B-2	0.630 -0.002	3.94	0.14	0.87	-	-	0.31	-	-	-	-	-	0.16	0.18	-	GN 1024-NI-3-E / ...-D
2342-NI-20-40-B-1	2342-NI-20-40-B-2	0.787 -0.002	1.57	0.18	1.02	-	-	0.41	-	-	-	-	-	0.16	0.20	-	GN 1024-NI-4-E / ...-D
2342-NI-20-45-B-1	2342-NI-20-45-B-2	0.787 -0.002	1.77	0.18	1.02	-	-	0.41	-	-	-	-	-	0.16	0.20	-	GN 1024-NI-4-E / ...-D
2342-NI-20-50-B-1	2342-NI-20-50-B-2	0.787 -0.002	1.97	0.18	1.02	-	-	0.41	-	-	-	-	-	0.16	0.20	-	GN 1024-NI-4-E / ...-D
2342-NI-20-55-B-1	2342-NI-20-55-B-2	0.787 -0.002	2.17	0.18	1.02	-	-	0.41	-	-	-	-	-	0.16	0.20	-	GN 1024-NI-4-E / ...-D
2342-NI-20-60-B-1	2342-NI-20-60-B-2	0.787 -0.002	2.36	0.18	1.02	-	-	0.41	-	-	-	-	-	0.16	0.20	-	GN 1024-NI-4-E / ...-D
2342-NI-20-65-B-1	2342-NI-20-65-B-2	0.787 -0.002	2.56	0.18	1.02	-	-	0.41	-	-	-	-	-	0.16	0.20	-	GN 1024-NI-4-E / ...-D
2342-NI-20-70-B-1	2342-NI-20-70-B-2	0.787 -0.002	2.76	0.18	1.02	-	-	0.41	-	-	-	-	-	0.16	0.20	-	GN 1024-NI-4-E / ...-D
2342-NI-20-80-B-1	2342-NI-20-80-B-2	0.787 -0.002	3.15	0.18	1.02	-	-	0.41	-	-	-	-	-	0.16	0.20	-	GN 1024-NI-4-E / ...-D
2342-NI-20-90-B-1	2342-NI-20-90-B-2	0.787 -0.002	3.54	0.18	1.02	-	-	0.41	-	-	-	-	-	0.16	0.20	-	GN 1024-NI-4-E / ...-D
2342-NI-20-100-B-1	2342-NI-20-100-B-2	0.787 -0.002	3.94	0.18	1.02	-	-	0.41	-	-	-	-	-	0.16	0.20	-	GN 1024-NI-4-E / ...-D

Part Number 1 - Without cross hole	Part Number 2 - With cross hole for GN 1024 spring cotter pin	d₁ -0.002	l₁	d₂	d₃	d₄	d₅	l₂	l₃	l₄	l₅	l₆	l₇	s₁	s₂	Suitable key ring Ø for type E	Suitable spring cotter pins for identification no. 2

2342-NI-8-16-E-1	2342-NI-8-16-E-2	0.315 -0.002	0.63	0.10	0.47	0.10	-	0.22	0.28	0.53	-	-	-	0.12	0.16	0.55	GN 1024-NI-2-D
2342-NI-8-20-E-1	2342-NI-8-20-E-2	0.315 -0.002	0.79	0.10	0.47	0.10	-	0.22	0.28	0.53	-	-	-	0.12	0.16	0.55	GN 1024-NI-2-D
2342-NI-8-24-E-1	2342-NI-8-24-E-2	0.315 -0.002	0.94	0.10	0.47	0.10	-	0.22	0.28	0.53	-	-	-	0.12	0.16	0.55	GN 1024-NI-2-D
2342-NI-8-28-E-1	2342-NI-8-28-E-2	0.315 -0.002	1.10	0.10	0.47	0.10	-	0.22	0.28	0.53	-	-	-	0.12	0.16	0.55	GN 1024-NI-2-D
2342-NI-8-30-E-1	2342-NI-8-30-E-2	0.315 -0.002	1.18	0.10	0.47	0.10	-	0.22	0.28	0.53	-	-	-	0.12	0.16	0.55	GN 1024-NI-2-D
2342-NI-8-32-E-1	2342-NI-8-32-E-2	0.315 -0.002	1.26	0.10	0.47	0.10	-	0.22	0.28	0.53	-	-	-	0.12	0.16	0.55	GN 1024-NI-2-D
2342-NI-8-35-E-1	2342-NI-8-35-E-2	0.315 -0.002	1.38	0.10	0.47	0.10	-	0.22	0.28	0.53	-	-	-	0.12	0.16	0.55	GN 1024-NI-2-D
2342-NI-8-40-E-1	2342-NI-8-40-E-2	0.315 -0.002	1.57	0.10	0.47	0.10	-	0.22	0.28	0.53	-	-	-	0.12	0.16	0.55	GN 1024-NI-2-D
2342-NI-8-45-E-1	2342-NI-8-45-E-2	0.315 -0.002	1.77	0.10	0.47	0.10	-	0.22	0.28	0.53	-	-	-	0.12	0.16	0.55	GN 1024-NI-2-D
2342-NI-8-50-E-1	2342-NI-8-50-E-2	0.315 -0.002	1.97	0.10	0.47	0.10	-	0.22	0.28	0.53	-	-	-	0.12	0.16	0.55	GN 1024-NI-2-D
2342-NI-8-55-E-1	2342-NI-8-55-E-2	0.315 -0.002	2.17	0.10	0.47	0.10	-	0.22	0.28	0.53	-	-	-	0.12	0.16	0.55	GN 1024-NI-2-D
2342-NI-8-60-E-1	2342-NI-8-60-E-2	0.315 -0.002	2.36	0.10	0.47	0.10	-	0.22	0.28	0.53	-	-	-	0.12	0.16	0.55	GN 1024-NI-2-D
2342-NI-10-20-E-1	2342-NI-10-20-E-2	0.394 -0.002	0.79	0.10	0.59	0.10	-	0.24	0.28	0.59	-	-	-	0.12	0.16	0.55	GN 1024-NI-2-E / ...-D
2342-NI-10-24-E-1	2342-NI-10-24-E-2	0.394 -0.002	0.94	0.10	0.59	0.10	-	0.24	0.28	0.59	-	-	-	0.12	0.16	0.55	GN 1024-NI-2-E / ...-D
2342-NI-10-30-E-1	2342-NI-10-30-E-2	0.394 -0.002	1.18	0.10	0.59	0.10	-	0.24	0.28	0.59	-	-	-	0.12	0.16	0.55	GN 1024-NI-2-E / ...-D
2342-NI-10-35-E-1	2342-NI-10-35-E-2	0.394 -0.002	1.38	0.10	0.59	0.10	-	0.24	0.28	0.59	-	-	-	0.12	0.16	0.55	GN 1024-NI-2-E / ...-D
2342-NI-10-40-E-1	2342-NI-10-40-E-2	0.394 -0.002	1.57	0.10	0.59	0.10	-	0.24	0.28	0.59	-	-	-	0.12	0.16	0.55	GN 1024-NI-2-E / ...-D
2342-NI-10-45-E-1	2342-NI-10-45-E-2	0.394 -0.002	1.77	0.10	0.59	0.10	-	0.24	0.28	0.59	-	-	-	0.12	0.16	0.55	GN 1024-NI-2-E / ...-D
2342-NI-10-50-E-1	2342-NI-10-50-E-2	0.394 -0.002	1.97	0.10	0.59	0.10	-	0.24	0.28	0.59	-	-	-	0.12	0.16	0.55	GN 1024-NI-2-E / ...-D
2342-NI-10-55-E-1	2342-NI-10-55-E-2	0.394 -0.002	2.17	0.10	0.59	0.10	-	0.24	0.28	0.59	-	-	-	0.12	0.16	0.55	GN 1024-NI-2-E / ...-D
2342-NI-10-60-E-1	2342-NI-10-60-E-2	0.394 -0.002	2.36	0.10	0.59	0.10	-	0.24	0.28	0.59	-	-	-	0.12	0.16	0.55	GN 1024-NI-2-E / ...-D
2342-NI-10-65-E-1	2342-NI-10-65-E-2	0.394 -0.002	2.56	0.10	0.59	0.10	-	0.24	0.28	0.59	-	-	-	0.12	0.16	0.55	GN 1024-NI-2-E / ...-D
2342-NI-10-70-E-1	2342-NI-10-70-E-2	0.394 -0.002	2.76	0.10	0.59	0.10	-	0.24	0.28	0.59	-	-	-	0.12	0.16	0.55	GN 1024-NI-2-E / ...-D
2342-NI-10-80-E-1	2342-NI-10-80-E-2	0.394 -0.002	3.15	0.10	0.59	0.10	-	0.24	0.28	0.59	-	-	-	0.12	0.16	0.55	GN 1024-NI-2-E / ...-D
2342-NI-12-20-E-1	2342-NI-12-20-E-2	0.472 -0.002	0.79	0.10	0.67	0.12	-	0.28	0.35	0.73	-	-	-	0.16	0.18	0.55	GN 1024-NI-2-E / ...-D
2342-NI-12-24-E-1	2342-NI-12-24-E-2	0.472 -0.002	0.94	0.10	0.67	0.12	-	0.28	0.35	0.73	-	-	-	0.16	0.18	0.55	GN 1024-NI-2-E / ...-D
2342-NI-12-30-E-1	2342-NI-12-30-E-2	0.472 -0.002	1.18	0.10	0.67	0.12	-	0.28	0.35	0.73	-	-	-	0.16	0.18	0.55	GN 1024-NI-2-E / ...-D
2342-NI-12-35-E-1	2342-NI-12-35-E-2	0.472 -0.002	1.38	0.10	0.67	0.12	-	0.28	0.35	0.73	-	-	-	0.16	0.18	0.55	GN 1024-NI-2-E / ...-D
2342-NI-12-40-E-1	2342-NI-12-40-E-2	0.472 -0.002	1.57	0.10	0.67	0.12	-	0.28	0.35	0.73	-	-	-	0.16	0.18	0.55	GN 1024-NI-2-E / ...-D
2342-NI-12-45-E-1	2342-NI-12-45-E-2	0.472 -0.002	1.77	0.10	0.67	0.12	-	0.28	0.35	0.73	-	-	-	0.16	0.18	0.55	GN 1024-NI-2-E / ...-D
2342-NI-12-50-E-1	2342-NI-12-50-E-2	0.472 -0.002	1.97	0.10	0.67	0.12	-	0.28	0.35	0.73	-	-	-	0.16	0.18	0.55	GN 1024-NI-2-E / ...-D
2342-NI-12-55-E-1	2342-NI-12-55-E-2	0.472 -0.002	2.17	0.10	0.67	0.12	-	0.28	0.35	0.73	-	-	-	0.16	0.18	0.55	GN 1024-NI-2-E / ...-D
2342-NI-12-60-E-1	2342-NI-12-60-E-2	0.472 -0.002	2.36	0.10	0.67	0.12	-	0.28	0.35	0.73	-	-	-	0.16	0.18	0.55	GN 1024-NI-2-E / ...-D
2342-NI-12-65-E-1	2342-NI-12-65-E-2	0.472 -0.002	2.56	0.10	0.67	0.12	-	0.28	0.35	0.73	-	-	-	0.16	0.18	0.55	GN 1024-NI-2-E / ...-D
2342-NI-12-70-E-1	2342-NI-12-70-E-2	0.472 -0.002	2.76	0.10	0.67	0.12	-	0.28	0.35	0.73	-	-	-	0.16	0.18	0.55	GN 1024-NI-2-E / ...-D
2342-NI-12-80-E-1	2342-NI-12-80-E-2	0.472 -0.002	3.15	0.10	0.67	0.12	-	0.28	0.35	0.73	-	-	-	0.16	0.18	0.55	GN 1024-NI-2-E / ...-D
2342-NI-16-32-E-1	2342-NI-16-32-E-2	0.630 -0.002	1.26	0.14	0.87	0.12	-	0.31	0.35	0.83	-	-	-	0.16	0.18	0.55	GN 1024-NI-3-E / ...-D
2342-NI-16-35-E-1	2342-NI-16-35-E-2	0.630 -0.002	1.38	0.14	0.87	0.12	-	0.31	0.35	0.83	-	-	-	0.16	0.18	0.55	GN 1024-NI-3-E / ...-D
2342-NI-16-40-E-1	2342-NI-16-40-E-2	0.630 -0.002	1.57	0.14	0.87	0.12	-	0.31	0.35	0.83	-	-	-	0.16	0.18	0.55	GN 1024-NI-3-E / ...-D
2342-NI-16-45-E-1	2342-NI-16-45-E-2	0.630 -0.002	1.77	0.14	0.87	0.12	-	0.31	0.35	0.83	-	-	-	0.16	0.18	0.55	GN 1024-NI-3-E / ...-D
2342-NI-16-50-E-1	2342-NI-16-50-E-2	0.630 -0.002	1.97	0.14	0.87	0.12	-	0.31	0.35	0.83	-	-	-	0.16	0.18	0.55	GN 1024-NI-3-E / ...-D
2342-NI-16-55-E-1	2342-NI-16-55-E-2	0.630 -0.002	2.17	0.14	0.87	0.12	-	0.31	0.35	0.83	-	-	-	0.16	0.18	0.55	GN 1024-NI-3-E / ...-D
2342-NI-16-60-E-1	2342-NI-16-60-E-2	0.630 -0.002	2.36	0.14	0.87	0.12	-	0.31	0.35	0.83	-	-	-	0.16	0.18	0.55	GN 1024-NI-3-E / ...-D
2342-NI-16-65-E-1	2342-NI-16-65-E-2	0.630 -0.002	2.56	0.14	0.87	0.12	-	0.31	0.35	0.83	-	-	-	0.16	0.18	0.55	GN 1024-NI-3-E / ...-D
2342-NI-16-70-E-1	2342-NI-16-70-E-2	0.630 -0.002	2.76	0.14	0.87	0.12	-	0.31	0.35	0.83	-	-	-	0.16	0.18	0.55	GN 1024-NI-3-E / ...-D
2342-NI-16-80-E-1	2342-NI-16-80-E-2	0.630 -0.002	3.15	0.14	0.87	0.12	-	0.31	0.35	0.83	-	-	-	0.16	0.18	0.55	GN 1024-NI-3-E / ...-D
2342-NI-16-90-E-1	2342-NI-16-90-E-2	0.630 -0.002	3.54	0.14	0.87	0.12	-	0.31	0.35	0.83	-	-	-	0.16	0.18	0.55	GN 1024-NI-3-E / ...-D
2342-NI-16-100-E-1	2342-NI-16-100-E-2	0.630 -0.002	3.94	0.14	0.87	0.12	-	0.31	0.35	0.83	-	-	-	0.16	0.18	0.55	GN 1024-NI-3-E / ...-D
2342-NI-20-40-E-1	2342-NI-20-40-E-2	0.787 -0.002	1.57	0.18	1.02	0.14	-	0.41	0.35	0.94	-	-	-	0.16	0.20	0.55	GN 1024-NI-4-E / ...-D
2342-NI-20-45-E-1	2342-NI-20-45-E-2	0.787 -0.002	1.77	0.18	1.02	0.14	-	0.41	0.35	0.94	-	-	-	0.16	0.20	0.55	GN 1024-NI-4-E / ...-D
2342-NI-20-50-E-1	2342-NI-20-50-E-2	0.787 -0.002	1.97	0.18	1.02	0.14	-	0.41	0.35	0.94	-	-	-	0.16	0.20	0.55	GN 1024-NI-4-E / ...-D
2342-NI-20-55-E-1	2342-NI-20-55-E-2	0.787 -0.002	2.17	0.18	1.02	0.14	-	0.41	0.35	0.94	-	-	-	0.16	0.20	0.55	GN 1024-NI-4-E / ...-D
2342-NI-20-60-E-1	2342-NI-20-60-E-2	0.787 -0.002	2.36	0.18	1.02	0.14	-	0.41	0.35	0.94	-	-	-	0.16	0.20	0.55	GN 1024-NI-4-E / ...-D
2342-NI-20-65-E-1	2342-NI-20-65-E-2	0.787 -0.002	2.56	0.18	1.02	0.14	-	0.41	0.35	0.94	-	-	-	0.16	0.20	0.55	GN 1024-NI-4-E / ...-D
2342-NI-20-70-E-1	2342-NI-20-70-E-2	0.787 -0.002	2.76	0.18	1.02	0.14	-	0.41	0.35	0.94	-	-	-	0.16	0.20	0.55	GN 1024-NI-4-E / ...-D
2342-NI-20-80-E-1	2342-NI-20-80-E-2	0.787 -0.002	3.15	0.18	1.02	0.14	-	0.41	0.35	0.94	-	-	-	0.16	0.20	0.55	GN 1024-NI-4-E / ...-D
2342-NI-20-90-E-1	2342-NI-20-90-E-2	0.787 -0.002	3.54	0.18	1.02	0.14	-	0.41	0.35	0.94	-	-	-	0.16	0.20	0.55	GN 1024-NI-4-E / ...-D
2342-NI-20-100-E-1	2342-NI-20-100-E-2	0.787 -0.002	3.94	0.18	1.02	0.14	-	0.41	0.35	0.94	-	-	-	0.16	0.20	0.55	GN 1024-NI-4-E / ...-D

Part Number 1 - Without cross hole	d₁ -0.002	l₁	d₂	d₃	d₄	d₅	l₂	l₃	l₄	l₅	l₆	l₇	s₁	s₂	Suitable key ring Ø for type E	Suitable spring cotter pins for identification no. 2

2342-NI-8-16-L-1	0.315 -0.002	0.63	-	0.47	-	0.17	-	-	-	0.71	0.39	0.08	0.12	0.16	-	-
2342-NI-8-20-L-1	0.315 -0.002	0.79	-	0.47	-	0.17	-	-	-	0.71	0.39	0.08	0.12	0.16	-	-
2342-NI-8-24-L-1	0.315 -0.002	0.94	-	0.47	-	0.17	-	-	-	0.71	0.39	0.08	0.12	0.16	-	-
2342-NI-8-28-L-1	0.315 -0.002	1.10	-	0.47	-	0.17	-	-	-	0.71	0.39	0.08	0.12	0.16	-	-
2342-NI-8-30-L-1	0.315 -0.002	1.18	-	0.47	-	0.17	-	-	-	0.71	0.39	0.08	0.12	0.16	-	-
2342-NI-8-32-L-1	0.315 -0.002	1.26	-	0.47	-	0.17	-	-	-	0.71	0.39	0.08	0.12	0.16	-	-
2342-NI-8-35-L-1	0.315 -0.002	1.38	-	0.47	-	0.17	-	-	-	0.71	0.39	0.08	0.12	0.16	-	-
2342-NI-8-40-L-1	0.315 -0.002	1.57	-	0.47	-	0.17	-	-	-	0.71	0.39	0.08	0.12	0.16	-	-
2342-NI-8-45-L-1	0.315 -0.002	1.77	-	0.47	-	0.17	-	-	-	0.71	0.39	0.08	0.12	0.16	-	-
2342-NI-8-50-L-1	0.315 -0.002	1.97	-	0.47	-	0.17	-	-	-	0.71	0.39	0.08	0.12	0.16	-	-
2342-NI-8-55-L-1	0.315 -0.002	2.17	-	0.47	-	0.17	-	-	-	0.71	0.39	0.08	0.12	0.16	-	-
2342-NI-8-60-L-1	0.315 -0.002	2.36	-	0.47	-	0.17	-	-	-	0.71	0.39	0.08	0.12	0.16	-	-
2342-NI-10-20-L-1	0.394 -0.002	0.79	-	0.59	-	0.17	-	-	-	0.83	0.43	0.16	0.12	0.16	-	-
2342-NI-10-24-L-1	0.394 -0.002	0.94	-	0.59	-	0.17	-	-	-	0.83	0.43	0.16	0.12	0.16	-	-
2342-NI-10-30-L-1	0.394 -0.002	1.18	-	0.59	-	0.17	-	-	-	0.83	0.43	0.16	0.12	0.16	-	-
2342-NI-10-35-L-1	0.394 -0.002	1.38	-	0.59	-	0.17	-	-	-	0.83	0.43	0.16	0.12	0.16	-	-
2342-NI-10-40-L-1	0.394 -0.002	1.57	-	0.59	-	0.17	-	-	-	0.83	0.43	0.16	0.12	0.16	-	-
2342-NI-10-45-L-1	0.394 -0.002	1.77	-	0.59	-	0.17	-	-	-	0.83	0.43	0.16	0.12	0.16	-	-
2342-NI-10-50-L-1	0.394 -0.002	1.97	-	0.59	-	0.17	-	-	-	0.83	0.43	0.16	0.12	0.16	-	-
2342-NI-10-55-L-1	0.394 -0.002	2.17	-	0.59	-	0.17	-	-	-	0.83	0.43	0.16	0.12	0.16	-	-
2342-NI-10-60-L-1	0.394 -0.002	2.36	-	0.59	-	0.17	-	-	-	0.83	0.43	0.16	0.12	0.16	-	-
2342-NI-10-65-L-1	0.394 -0.002	2.56	-	0.59	-	0.17	-	-	-	0.83	0.43	0.16	0.12	0.16	-	-
2342-NI-10-70-L-1	0.394 -0.002	2.76	-	0.59	-	0.17	-	-	-	0.83	0.43	0.16	0.12	0.16	-	-
2342-NI-10-80-L-1	0.394 -0.002	3.15	-	0.59	-	0.17	-	-	-	0.83	0.43	0.16	0.12	0.16	-	-
2342-NI-12-20-L-1	0.472 -0.002	0.79	-	0.67	-	0.21	-	-	-	0.91	0.47	0.16	0.16	0.18	-	-
2342-NI-12-24-L-1	0.472 -0.002	0.94	-	0.67	-	0.21	-	-	-	0.91	0.47	0.16	0.16	0.18	-	-
2342-NI-12-30-L-1	0.472 -0.002	1.18	-	0.67	-	0.21	-	-	-	0.91	0.47	0.16	0.16	0.18	-	-
2342-NI-12-35-L-1	0.472 -0.002	1.38	-	0.67	-	0.21	-	-	-	0.91	0.47	0.16	0.16	0.18	-	-
2342-NI-12-40-L-1	0.472 -0.002	1.57	-	0.67	-	0.21	-	-	-	0.91	0.47	0.16	0.16	0.18	-	-
2342-NI-12-45-L-1	0.472 -0.002	1.77	-	0.67	-	0.21	-	-	-	0.91	0.47	0.16	0.16	0.18	-	-
2342-NI-12-50-L-1	0.472 -0.002	1.97	-	0.67	-	0.21	-	-	-	0.91	0.47	0.16	0.16	0.18	-	-
2342-NI-12-55-L-1	0.472 -0.002	2.17	-	0.67	-	0.21	-	-	-	0.91	0.47	0.16	0.16	0.18	-	-
2342-NI-12-60-L-1	0.472 -0.002	2.36	-	0.67	-	0.21	-	-	-	0.91	0.47	0.16	0.16	0.18	-	-
2342-NI-12-65-L-1	0.472 -0.002	2.56	-	0.67	-	0.21	-	-	-	0.91	0.47	0.16	0.16	0.18	-	-
2342-NI-12-70-L-1	0.472 -0.002	2.76	-	0.67	-	0.21	-	-	-	0.91	0.47	0.16	0.16	0.18	-	-
2342-NI-12-80-L-1	0.472 -0.002	3.15	-	0.67	-	0.21	-	-	-	0.91	0.47	0.16	0.16	0.18	-	-
2342-NI-16-32-L-1	0.630 -0.002	1.26	-	0.87	-	0.21	-	-	-	1.10	0.59	0.24	0.16	0.18	-	-
2342-NI-16-35-L-1	0.630 -0.002	1.38	-	0.87	-	0.21	-	-	-	1.10	0.59	0.24	0.16	0.18	-	-
2342-NI-16-40-L-1	0.630 -0.002	1.57	-	0.87	-	0.21	-	-	-	1.10	0.59	0.24	0.16	0.18	-	-
2342-NI-16-45-L-1	0.630 -0.002	1.77	-	0.87	-	0.21	-	-	-	1.10	0.59	0.24	0.16	0.18	-	-
2342-NI-16-50-L-1	0.630 -0.002	1.97	-	0.87	-	0.21	-	-	-	1.10	0.59	0.24	0.16	0.18	-	-
2342-NI-16-55-L-1	0.630 -0.002	2.17	-	0.87	-	0.21	-	-	-	1.10	0.59	0.24	0.16	0.18	-	-
2342-NI-16-60-L-1	0.630 -0.002	2.36	-	0.87	-	0.21	-	-	-	1.10	0.59	0.24	0.16	0.18	-	-
2342-NI-16-65-L-1	0.630 -0.002	2.56	-	0.87	-	0.21	-	-	-	1.10	0.59	0.24	0.16	0.18	-	-
2342-NI-16-70-L-1	0.630 -0.002	2.76	-	0.87	-	0.21	-	-	-	1.10	0.59	0.24	0.16	0.18	-	-
2342-NI-16-80-L-1	0.630 -0.002	3.15	-	0.87	-	0.21	-	-	-	1.10	0.59	0.24	0.16	0.18	-	-
2342-NI-16-90-L-1	0.630 -0.002	3.54	-	0.87	-	0.21	-	-	-	1.10	0.59	0.24	0.16	0.18	-	-
2342-NI-16-100-L-1	0.630 -0.002	3.94	-	0.87	-	0.21	-	-	-	1.10	0.59	0.24	0.16	0.18	-	-
2342-NI-20-40-L-1	0.787 -0.002	1.57	-	1.02	-	0.25	-	-	-	1.22	0.67	0.24	0.16	0.20	-	-
2342-NI-20-45-L-1	0.787 -0.002	1.77	-	1.02	-	0.25	-	-	-	1.22	0.67	0.24	0.16	0.20	-	-
2342-NI-20-50-L-1	0.787 -0.002	1.97	-	1.02	-	0.25	-	-	-	1.22	0.67	0.24	0.16	0.20	-	-
2342-NI-20-55-L-1	0.787 -0.002	2.17	-	1.02	-	0.25	-	-	-	1.22	0.67	0.24	0.16	0.20	-	-
2342-NI-20-60-L-1	0.787 -0.002	2.36	-	1.02	-	0.25	-	-	-	1.22	0.67	0.24	0.16	0.20	-	-
2342-NI-20-65-L-1	0.787 -0.002	2.56	-	1.02	-	0.25	-	-	-	1.22	0.67	0.24	0.16	0.20	-	-
2342-NI-20-70-L-1	0.787 -0.002	2.76	-	1.02	-	0.25	-	-	-	1.22	0.67	0.24	0.16	0.20	-	-
2342-NI-20-80-L-1	0.787 -0.002	3.15	-	1.02	-	0.25	-	-	-	1.22	0.67	0.24	0.16	0.20	-	-
2342-NI-20-90-L-1	0.787 -0.002	3.54	-	1.02	-	0.25	-	-	-	1.22	0.67	0.24	0.16	0.20	-	-
2342-NI-20-100-L-1	0.787 -0.002	3.94	-	1.02	-	0.25	-	-	-	1.22	0.67	0.24	0.16	0.20	-	-

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁ -0.002	l₁						d₂	d₃	d₄	d₅	l₂	l₃	l₄	l₅	l₆	l₇	s₁	s₂	Suitable key ring Ø for type E			Suitable spring cotter pins for identification no. 2

0.315	0.63	0.79	0.94	1.10	1.18	1.26	0.10	0.47	0.10	0.17	0.22	0.28	0.53	0.71	0.39	0.08	0.12	0.16	0.55	-	-	GN 1024-NI-2-D
0.315	1.38	1.57	1.77	1.97	2.17	2.36	0.10	0.47	0.10	0.17	0.22	0.28	0.53	0.71	0.39	0.08	0.12	0.16	0.55	-	-	GN 1024-NI-2-D
0.394	0.79	0.94	1.18	1.38	1.57	1.77	0.10	0.59	0.10	0.17	0.24	0.28	0.59	0.83	0.43	0.16	0.12	0.16	0.55	-	-	GN 1024-NI-2-E / ...-D
0.394	1.97	2.17	2.36	2.56	2.76	3.15	0.10	0.59	0.10	0.17	0.24	0.28	0.59	0.83	0.43	0.16	0.12	0.16	0.55	-	-	GN 1024-NI-2-E / ...-D
0.472	0.79	0.94	1.18	1.38	1.57	1.77	0.10	0.67	0.12	0.21	0.28	0.35	0.73	0.91	0.47	0.16	0.16	0.18	0.55	0.71	-	GN 1024-NI-2-E / ...-D
0.472	1.97	2.17	2.36	2.56	2.76	3.15	0.10	0.67	0.12	0.21	0.28	0.35	0.73	0.91	0.47	0.16	0.16	0.18	0.55	0.71	-	GN 1024-NI-2-E / ...-D
0.630	1.26	1.38	1.57	1.77	1.97	2.17	0.14	0.87	0.12	0.21	0.31	0.35	0.83	1.10	0.59	0.24	0.16	0.18	0.55	0.71	-	GN 1024-NI-3-E / ...-D
0.630	2.36	2.56	2.76	3.15	3.54	3.94	0.14	0.87	0.12	0.21	0.31	0.35	0.83	1.10	0.59	0.24	0.16	0.18	0.55	0.71	-	GN 1024-NI-3-E / ...-D
0.787	1.57	1.77	1.97	2.17	2.36	2.56	0.18	1.02	0.14	0.25	0.41	0.35	0.94	1.22	0.67	0.24	0.16	0.20	0.55	0.71	0.94	GN 1024-NI-4-E / ...-D
0.787	2.76	3.15	3.54	3.94	-	-	0.18	1.02	0.14	0.25	0.41	0.35	0.94	1.22	0.67	0.24	0.16	0.20	0.55	0.71	0.94	GN 1024-NI-4-E / ...-D

Build & Price

Application Example

Load Capacity Rapid Release Pins

Information
The load capacities specified in the table for the double shear strength (breaking strength) have been calculated or theoretically determined in accordance with DIN 50141.

The endangered bolt cross-section S was considered in two shear planes until breakage, according to the sketch shown opposite.

The details given on load capacity are non-binding guide values without any liability. In general, they do not constitute a warranty of quality. The user must determine from case to case if a product is suitable for the application. Ambient influences may affect the specified values.

An appropriate safety factor must be taken into account in the design.

Load capacity F ≈ double shear strength according to DIN 50141 (breaking strength)

Show / Hide columns

d₁ Pin diameter	GN 2342

6	-
8	6744 lbf (30 kN)
10	10341 lbf (46 kN)
12	16636 lbf (74 kN)
16	30574 lbf (136 kN)
20	51032 lbf (227 kN)

Selected Part

Part Number

Total (net)

US$15.16

Call / Email for Delivery Time

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (US Dollars).

Min	Max	Price
1	24	US$15.16
25	49	US$13.89
50	99	US$12.63
≥ 100		US$11.37

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.026 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351

CAD Download

Other Data Formats

About CAD Downloads

Need Help?

Our service team is available from Monday to Friday between 7:30 AM and 5:00 PM Central Time: 800-877-8351

Special Requests | Contact our sales team

JW Winco Services

Request Callback

JW Winco Handbook

Your Contact

JW Winco News

GN 2342 Assembly Pins Stainless Steel

Product Family Stainless Steel

Product description

Specification

Accessory

Part Options / Table

Type

Identification no.

Type: B - With plain washer

Type: E - With eyelet washer

Type: L - With mounting shackle washer (only identification no. 1)

Metric

Build & Price

Application Example

Load Capacity Rapid Release Pins

Selected Part

CAD Download

CAD data

Login

Email CAD File

Need Help?

This could also be interesting...

GN 2344

GN 1024

GN 1024

GN 111.2

GN 111

GN 111.2

GN 111.5

GN 111.3

Your Contact

JW Winco Services
