GN 615.1 Spring Plungers Steel / Stainless Steel, with Nose Pin, with Slot


GN 615.1 Steel / Stainless Steel Spring Plungers, with Nose Pin, with Slot Type: B - Steel, standard spring load

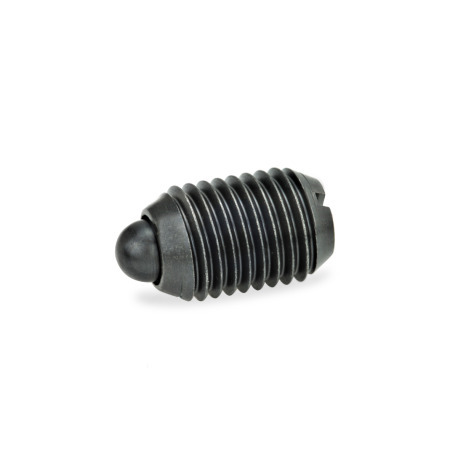

Type: B - Steel, standard spring load
GN 615.1 Steel / Stainless Steel Spring Plungers, with Nose Pin, with Slot Type: B - Steel, standard spring load GN 615.1 Steel / Stainless Steel Spring Plungers, with Nose Pin, with Slot Type: BN - Stainless steel, standard spring load GN 615.1 Steel / Stainless Steel Spring Plungers, with Nose Pin, with Slot Type: BS - Steel, high spring load GN 615.1 Steel / Stainless Steel Spring Plungers, with Nose Pin, with Slot Type: BSN - Stainless steel, high spring load
Stainless-Steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products

Product description

Information

GN 615.1 spring plungers are used as locating devices, detent pins, pressure pins and ejectors. A typical example is push-on / push-off applications.

Spring plungers mounted in various control levers are also perfect solutions for snap-indexing mechanism applications.

Specification

Type B / BS
  • Housing
    Steel, blackened finish
  • Nose pin
    Steel, hardened, blackened finish

Type BN / BSN
  • Housing
    Stainless steel AISI 303
  • Nose pin
    Stainless steel AISI 303
    Hardened

Spring
Stainless steel AISI 631
Identification of Type BS / BSN:
Housing with 2 longitudinal markings

RoHS compliant

Technical drawing

3D
Hide technical drawing
GN 615.1 Steel / Stainless Steel Spring Plungers, with Nose Pin, with Slot sketch

Part Options / Table

Type

BSteel, standard spring load
BSSteel, high spring load
BNStainless steel, standard spring load
BSNStainless steel, high spring load
Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)
d1
Type B
Type BN

Type BS
Type BSN
d2 -0.004Length l ±0.004w
Compression
Spring load ≈
Standard (Type B / BN)
Initial


End
Spring load ≈
High (Type BS / BSN)
Initial


End
M 4-0.070.350.06 +0.012/-0.0161.01 lbf (4.5 N)2.81 lbf (12.5 N)--
M 5-0.090.470.081.12 lbf (5 N)2.92 lbf (13 N)--
M 6M 60.110.550.081.35 lbf (6 N)3.82 lbf (17 N)2.47 lbf (11 N)5.62 lbf (25 N)
M 8M 80.150.630.083.6 lbf (16 N)7.42 lbf (33 N)5.17 lbf (23 N)13.26 lbf (59 N)
M 10M 100.180.750.104.27 lbf (19 N)9.44 lbf (42 N)4.5 lbf (20 N)12.14 lbf (54 N)
M 12M 120.240.870.144.95 lbf (22 N)12.81 lbf (57 N)8.54 lbf (38 N)21.58 lbf (96 N)
M 16M 160.330.940.18 ±0.0128.54 lbf (38 N)17.54 lbf (78 N)11.24 lbf (50 N)22.48 lbf (100 N)
M 20M 200.391.180.268.77 lbf (39 N)18.21 lbf (81 N)11.69 lbf (52 N)29.9 lbf (133 N)
M 24M 240.511.340.3116.19 lbf (72 N)34.85 lbf (155 N)20.46 lbf (91 N)50.13 lbf (223 N)

Build & Price

3D Product Configurator
Thread d1
Type




Selected Part

Total US Dollars (net)
$2.11
In Stock: 269
In Stock
Please note our quantity discounts (US Dollars).
MinMaxPrice
199$2.11
100249$1.94
250499$1.76
≥ 500$1.58
Prop 65: Not compliant
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
RoHS: Compliant
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 0.001 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351
All Prices are in US Dollars. Taxes Not Included.
