Product description
Specification
Heat-treatable steel
- Property class 10.9
- Forged
- Milled T-slot guide face
RoHS

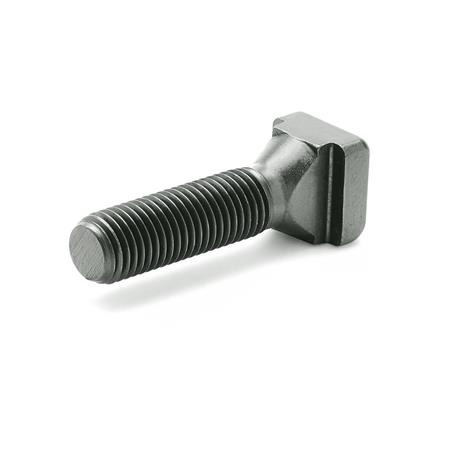

WN 787 T-Slot Bolts Steel
Hide technical drawing
Part Options / Table
Show / Hide columns
Inch
Dimensions in: Inch (change to Metric)
| T-slot width | d | Length l | a | b | e | k |
|---|---|---|---|---|---|---|
| 1.00 | 1 x 8 | 4.00 | 0.92 | 2.56 | 1.65 | 0.63 |
| 1.00 | 1 x 8 | 4.50 | 0.92 | 2.76 | 1.65 | 0.63 |
| 1.00 | 1 x 8 | 6.00 | 0.92 | 4.33 | 1.65 | 0.63 |
| 1.00 | 1 x 8 | 8.00 | 0.92 | 4.92 | 1.65 | 0.63 |
| 1.00 | 1 x 8 | 10.00 | 0.92 | 5.91 | 1.65 | 0.63 |
| 1.00 | 1 x 8 | 12.00 | 0.92 | 7.48 | 1.65 | 0.63 |
Build & Price
Selected Part
Total (net)
US$69.56
In Stock: 486
Save as Favorites
Recommend a product
Please note our quantity discounts (US Dollars).
| Min | Max | Price |
|---|---|---|
| 1 | 99 | US$69.56 |
| 100 | 249 | US$63.77 |
| 250 | 499 | US$57.97 |
| ≥ 500 | US$52.17 |
Prop 65: Not compliant
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
RoHS: Compliant
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 1.250 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
