GN 6322 Locating Pins Steel, with Ball-Type Shoulder


GN 6322 Steel Locating Pins, with Ball-Type Shoulder Type: B - Locating pin, high type, cylindrical

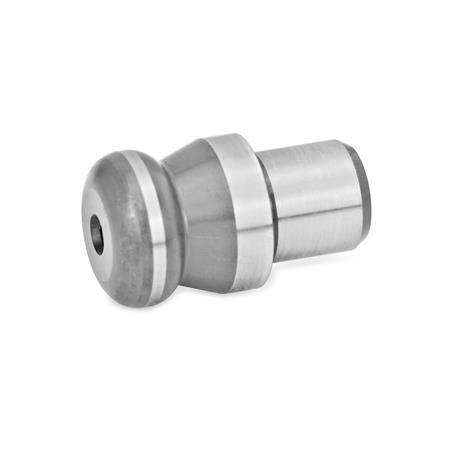

Type: B - Locating pin, high type, cylindrical
GN 6322 Steel Locating Pins, with Ball-Type Shoulder Type: B - Locating pin, high type, cylindrical GN 6322 Steel Locating Pins, with Ball-Type Shoulder Type: C - Locating pin, high type, flattened

Product description

Information

GN 6322 locating pins are inserted into bores for positioning, with the ball-type shoulder facilitating the insertion into the bore.

The flattened design of type C provides tolerance for the spacing of the two bores. Another application of this design is to affix parts to be positioned in one direction only.

Specification

Steel, hardened

RoHS compliant

Technical drawing

3D
Hide technical drawing
GN 6322 Steel Locating Pins, with Ball-Type Shoulder sketch

Part Options / Table

Type

BLocating pin, high type, cylindrical
CLocating pin, high type, flattened
Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)
d1 -0.0002/-0.0007d2 -0.001d3 -0.005/-0.002d4
Thread
h1h2Length ls
Type C
tr
0.390.280.39M 30.390.100.280.100.240.10
0.470.310.47M 40.470.120.310.100.310.12
0.630.470.63M 50.630.160.470.170.390.16
0.790.550.79M 50.790.200.550.200.390.20
0.870.630.87M 50.870.220.630.200.390.22
0.980.710.98M 50.980.240.710.220.390.24

Build & Price

3D Product Configurator
Diameter d1
Diameter d2
Type


Selected Part

Total US Dollars (net)
$31.95
In Stock: 14
In Stock
Please note our quantity discounts (US Dollars).
MinMaxPrice
199$31.95
100249$29.29
250499$26.63
≥ 500$23.96
Prop 65: Not compliant
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
RoHS: Compliant
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 0.014 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351
All Prices are in US Dollars. Taxes Not Included.

CAD Download

Other Data Formats

Email CAD File

To receive an email with a CAD download without creating an account, please enter your e-mail address. Max of 3 CAD files per day unless you create an account.

Please enter the code above.

CAD Download Tutorial About CAD Downloads
Save as Favorites

Please enter the code above.

Need Help?

Our service team is available from Monday to Friday between 7:30 AM and 5:00 PM Central Time: 800-877-8351

Special Requests | Contact our sales team

GN 6322-10-7-BGN 6322-10-7-CGN 6322-12-8-BGN 6322-12-8-CGN 6322-16-12-BGN 6322-16-12-CGN 6322-20-14-BGN 6322-20-14-CGN 6322-22-16-BGN 6322-22-16-CGN 6322-25-18-BGN 6322-25-18-C
