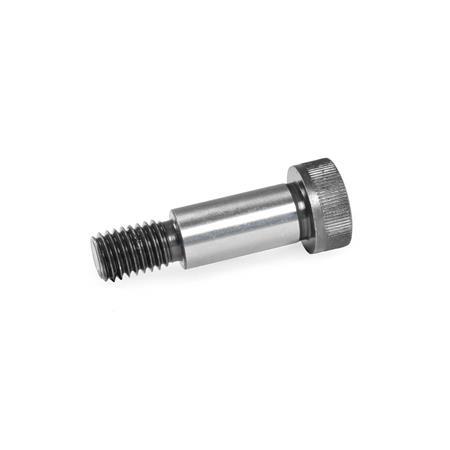

WN 7379 Socket Shoulder Screws Steel, with Collar


WN 7379 Inch Size, Steel Socket Shoulder Screws, with Collar

Product description


Socket shoulder screws WN 7379 are cost-saving construction components for a wide variety of different uses.

The maximum tightening torque should not be defined by the property class, but it is instead limited by the relatively small bearing points (shoulders) on the recesses at the transition point from d1 to d2 and d3.



  • Property class 12.9
  • Blackened finish
  • Adapter dimension d1 ground


Technical drawing

Hide technical drawing
WN 7379 Inch Size, Steel Socket Shoulder Screws, with Collar sketch

Part Options / Table

Show / Hide columns


Dimensions in: Inch (change to Metric)
d1 -0.002/-0.004d2
l1 ±0.005d3l2l3A/F
in inches
0.25010 x 240.2500.3750.5000.6250.7501.0001.2501.5000.37500.37500.18750.125
0.3131/4 x 200.3750.5000.6250.7501.0001.2501.5002.0000.43750.43750.21880.156
0.3755/16 x 180.5000.6250.7501.0001.2501.5002.0002.2500.56250.50000.25000.188
0.5003/8 x 160.6250.7501.0001.2501.5002.0002.250-0.75000.62500.31250.250
0.6251/2 x 131.0001.2501.5002.0002.250---0.87500.75000.37500.313

Build & Price

3D Product Configurator
Collet diameter d1
Thread d2
Length l1

Selected Part

Total US Dollars (net)
In Stock: 5000
In Stock
Please note our quantity discounts (US Dollars).
≥ 500$0.37
Prop 65: Not compliant
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
RoHS: Compliant
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 0.011 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
