GN 451 Vibration Isolation Mounts Rubber, Cylindrical Type, with Stainless Steel Components

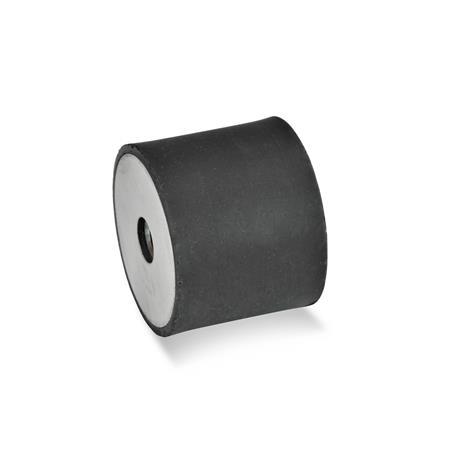

GN 451 Rubber Vibration Isolation Mounts, Cylindrical Type, with Stainless Steel Components Type: EE - With 2 tapped holes
Type: EE - With 2 tapped holes
GN 451 Rubber Vibration Isolation Mounts, Cylindrical Type, with Stainless Steel Components Type: EE - With 2 tapped holes GN 451 Rubber Vibration Isolation Mounts, Cylindrical Type, with Stainless Steel Components Type: ES - With 1 tapped hole and 1 threaded stud GN 451 Rubber Vibration Isolation Mounts, Cylindrical Type, with Stainless Steel Components Type: SS - With 2 threaded studs

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products

Product description


GN 451 vibration isolation mounts are suitable for the anti-vibration mounting of machine units such as motors, compressors and pumps.

These rubber mounts are simple and economical construction elements. Their resilience and their broad range of different sizes and dimensions allow these mounts to be used in many applications that require vibration isolation.


Mount body
Natural rubber (NR)
  • Black
  • Vulcanized to the cover plates
  • Temperature resistant up to 176 °F (80 °C)
  • Shore hardness A ±5

Cover plates / tapped inserts / threaded studs
Stainless steel AISI 304

RoHS compliant

On request

Gray color rubber
Versions with shore hardness A ±5
  • Soft40
  • Hard70

Technical drawing

Hide technical drawing
GN 451 Rubber Vibration Isolation Mounts, Cylindrical Type, with Stainless Steel Components sketch

Part Options / Table


EEWith 2 tapped holes
ESWith 1 tapped hole and 1 threaded stud
SSWith 2 threaded studs
Show / Hide columns


Dimensions in: Inch | Metric
Type EE

Type ES

Type SS
Length lst
0.390.390.590.790.390.590.79-0.390.590.79-M 40.390.050.12
0.590.390.590.790.390.590.790.980.390.590.790.98M 40.390.060.16
0.790.590.790.980.590.790.981.180.590.790.981.18M 60.710.080.24
0.980.790.981.180.590.791.18-0.590.791.18-M 60.710.080.24
1.180.791.181.570.590.791.181.570.591.181.57-M 80.790.080.31
1.570.791.181.570.791.181.57-0.791.181.57-M 80.910.080.31
2.951.181.572.170.981.572.17-0.981.572.17-M 121.460.120.43
3.941.572.172.951.572.172.95-1.572.172.95-M 161.610.120.55
4.922.172.95-2.172.95--2.172.95--M 161.610.120.55
* Not available from stock, requires a minimum order quantity

Build & Price

3D Product Configurator
Outer diameter d1
Height h (Type EE)
Height h (Type ES)
Height h (Type SS)
Thread d2


Selected Part

Total US Dollars (net)
In Stock: 470
In Stock
Please note our quantity discounts (US Dollars).
≥ 250$2.20
Prop 65: Not compliant
Cancer and Reproductive Harm -
RoHS: Compliant
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 0.002 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
