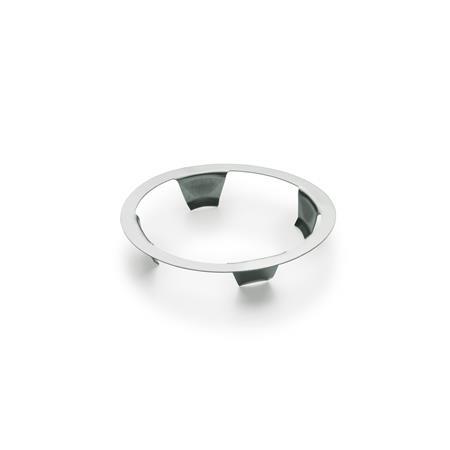

GN 509.3 Spring Retainers Steel / Stainless Steel, for Ball Transfer Units GN 509 / GN 509.1

Spring Retainers GN 509.3: Steel / Stainless Steel, for Ball Transfer Units GN 509 / GN 509.1

Type: A - Mounting from the front

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

Stainless Steel Characteristics

Product description

Spring retainers GN 509.3 are used to securely affix ball transfer units to sheet metal plates. There are no special requirements for the mounting hole tolerance.

Ball transfer units affixed with spring rings of type A can be easily removed again. Removing ball transfer units affixed with spring rings of type B requires a larger amount of force.

Specification

Spring steel

Stainless steel AISI 301 for type A
Steel, zinc plated for type B

RoHS

GN 509.3 Steel / Stainless Steel Spring Retainers, for Ball Transfer Units GN 509 / GN 509.1 sketch

Hide technical drawing

Part Options / Table

Type

A	Mounting from the front
B	Mounting from the back

Part Number	Type	d₁	d₂	d₃	d₄ min.	s₁	s₂	For ball transfer units GN 509 / GN 509.1 Size

24WJS0	A	1.22	-	0.98 -0.008	-	2...3	-	15
36WJS1	A	1.73	-	1.47 -0.011	-	2...4	-	22
45WJS2	A	2.17	-	1.84 -0.011	-	2...4	-	30
509.3-36-B	B	-	1.42	-	0.87	-	0...6	12
509.3-38-B	B	-	1.50	-	0.95	-	0...8	15

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

Type	d₁	d₂	d₃	d₄ min.	s₁	s₂	For ball transfer units GN 509 / GN 509.1 Size

A	1.22	-	0.98 -0.008	-	2...3	-	15
A	1.73	-	1.47 -0.011	-	2...4	-	22
A	2.17	-	1.84 -0.011	-	2...4	-	30
B	-	1.42	-	0.87	-	0...6	12
B	-	1.50	-	0.95	-	0...8	15

Build & Price

Diameter d₁

1.22

1.73

2.17

Diameter d₂

1.42

1.50

Type

A - Mounting from the front

B - Mounting from the back

Selected Part

Part Number

Total (net)

US$2.99

In Stock: 2

In Stock

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (US Dollars).

Min	Max	Price
1	49	US$2.99
50	99	US$2.74
100	249	US$2.50
≥ 250		US$2.25

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.002 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
