DIN 6306 Tommy Screws Stainless Steel, Stud Type, with Movable Bar

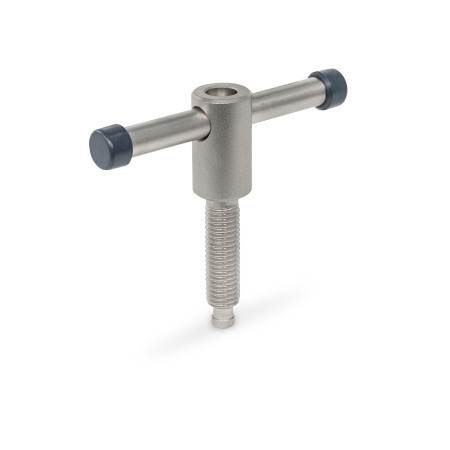

Tommy Screws DIN 6306: Stainless Steel, Stud Type, with Movable Bar

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

ISO Fundamental Tolerances Stainless Steel Characteristics

Product description

Tommy screws DIN 6306 are used for clamping and pressing. Combining them with thrust pads or base plates increases the contact surface and allows for angle compensation.

The sliding bar is protected against loss by the end caps and held in any position by the pressure spring.

Specification

Tommy screw
Stainless steel AISI 304NI

Bar end caps
Plastic, Polyethylene (PE)
Gray

Pressure spring
Stainless steel AISI 301

RoHS

Accessory

Thrust Pads GN 6311.1 (Stainless Steel)
Thrust Pads GN 6311.5 (Stainless Steel)

DIN 6306 Stainless Steel Tommy Screws, Stud Type, with Movable Bar sketch

Hide technical drawing

Part Options / Table

Type

D	Without thrust pad

Part Number D - Without thrust pad	d₁	l₁	d₂	d₃	d₄ h11	l₂	l₃	l₄	l₅ ≈	l₆	l₇	z ≈


6306-M6-20-D-NI	M 6	0.79	0.55	0.24	0.18 h11	1.18	2.36	0.10	0.08	0.59	1.77	0.24
6306-M6-30-D-NI	M 6	1.18	0.55	0.24	0.18 h11	1.18	2.36	0.10	0.08	0.59	1.77	0.24
6306-M8-30-D-NI	M 8	1.18	0.55	0.24	0.24 h11	1.18	2.36	0.20	0.12	0.59	1.77	0.30
6306-M8-40-D-NI	M 8	1.57	0.55	0.24	0.24 h11	1.18	2.36	0.20	0.12	0.59	1.77	0.30
6306-M10-40-D-NI	M 10	1.57	0.71	0.31	0.31 h11	1.26	3.15	0.39	0.14	0.67	2.48	0.32
6306-M10-50-D-NI	M 10	1.97	0.71	0.31	0.31 h11	1.26	3.15	0.39	0.14	0.67	2.48	0.32
6306-M12-50-D-NI	M 12	1.97	0.79	0.39	0.31 h11	1.38	3.94	0.39	0.18	0.75	3.19	0.34
6306-M12-60-D-NI	M 12	2.36	0.79	0.39	0.31 h11	1.38	3.94	0.39	0.18	0.75	3.19	0.34
6306-M16-55-D-NI	M 16	2.17	0.94	0.51	0.47 h11	1.57	4.72	0.39	0.21	0.91	3.82	0.42
6306-M16-70-D-NI	M 16	2.76	0.94	0.51	0.47 h11	1.57	4.72	0.39	0.21	0.91	3.82	0.42
6306-M16-90-D-NI	M 16	3.54	0.94	0.51	0.47 h11	1.57	4.72	0.39	0.21	0.91	3.82	0.42
6306-M20-55-D-NI	M 20	2.17	1.18	0.63	0.61 h11	1.77	5.51	0.39	0.22	1.10	4.41	0.49
6306-M20-70-D-NI	M 20	2.76	1.18	0.63	0.61 h11	1.77	5.51	0.39	0.22	1.10	4.41	0.49
6306-M20-90-D-NI	M 20	3.54	1.18	0.63	0.61 h11	1.77	5.51	0.39	0.22	1.10	4.41	0.49

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁	l₁			d₂	d₃	d₄ h11	l₂	l₃	l₄	l₅ ≈	l₆	l₇	z ≈

M 6	0.79	1.18	-	0.55	0.24	0.18	1.18	2.36	0.10	0.08	0.59	1.77	0.24
M 8	1.18	1.57	-	0.55	0.24	0.24	1.18	2.36	0.20	0.12	0.59	1.77	0.30
M 10	1.57	1.97	-	0.71	0.31	0.31	1.26	3.15	0.39	0.14	0.67	2.48	0.32
M 12	1.97	2.36	-	0.79	0.39	0.31	1.38	3.94	0.39	0.18	0.75	3.19	0.34
M 16	2.17	2.76	3.54	0.94	0.51	0.47	1.57	4.72	0.39	0.21	0.91	3.82	0.42
M 20	2.17	2.76	3.54	1.18	0.63	0.61	1.77	5.51	0.39	0.22	1.10	4.41	0.49

Build & Price

Selected Part

Part Number

Total (net)

US$26.49

Call / Email for Delivery Time

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (US Dollars).

Min	Max	Price
1	99	US$26.49
100	249	US$24.28
250	499	US$22.08
≥ 500		US$19.87

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.092 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
