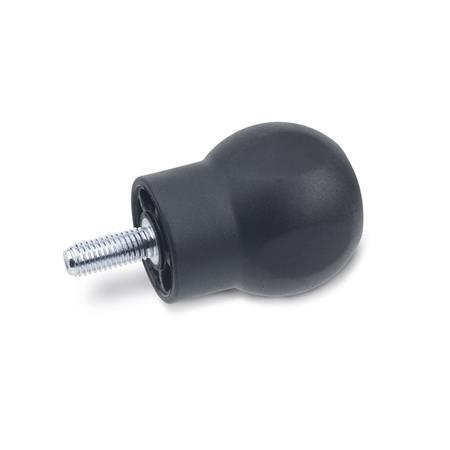

EN 675 Ball Handles Technopolymer Plastic, with Steel Threaded Stud, Ergostyle®, Softline


EN 675 Technopolymer Plastic Ball Handles, with Steel Threaded Stud, Ergostyle®, Softline
ELESA original design
code: EBK-p-SOFT

Product Family Softline

Softline standard parts feature a soft and slip-proof surface and provide better force transfer between hand and operating element – especially in moist, oily, hot or cold ambient conditions.

  • permanent elastomer sheathing
  • better force transfer
  • safe operation in moist or oily conditions
  • ergonomically advantageous
Show all Softline products

Product Family Ergostyle

Ergostyle standard parts combine functional and ergonomic operation with attractive appearance. Numerous design awards are proof of the high quality claim. The hallmark of Ergostyle products are five small dots.

  • functional, ergonomic design
  • ultimate design quality (numerous design awards)
Show all Ergostyle products


The FOOD AND DRUG ADMINISTRATION is a federal agency of the United States Department of Health and Human Services, one of the United States’ executive departments. The FDA is responsible for many things including food safety. The FDA has a positive list of substances that are allowed to come into contact with foods and beverages.

Product description


The Softline coating makes the ball handles EN 675 particularly ergonomic and easy to grip.

The soft, slip-proof contact area improves the grip both in damp (hand perspiration) and in dry ambient conditions, as well as in the event of oily surfaces and in very high or very low temperatures.

The ball handles are suitable for use both as operating elements and for clamping. The "hard" plastic core guarantees the perfect anchoring of the insert with threaded stud even under heavier clamping or torqueing loads.


Technopolymer (Polypropylene PP)

Softline coating

  • Elastomer (TPE) 70 Shore A
  • Chemically bonded with the plastic body
  • FDA compliant plastic granulate
  • Temperature resistant up to 176 °F (80 °C)
  • Black, matte finish

Threaded stud
Steel, zinc plated, blue passivated finish


On request

Revolving ball handles

Technical drawing

Hide technical drawing
EN 675 Technopolymer Plastic Ball Handles, with Steel Threaded Stud, Ergostyle®, Softline sketch

Part Options / Table

Show / Hide columns


Dimensions in: Inch (change to Metric)
d1d2Length ld3h1h2
1.975/16 x 180.751.422.520.79
1.973/8 x 160.981.422.520.79
Show / Hide columns


Dimensions in: Inch (change to Metric)
d1d2Length ld3h1h2
1.69M 60.630.790.98-
1.69M 80.630.790.981.
1.69M 100.790.981.181.971.282.170.69
1.97M 80.630.790.981.181.462.520.79
1.97M 100.790.981.181.971.462.520.79

Build & Price

3D Product Configurator
Ball diameter d1
Thread d2



Length l

Selected Part

Total US Dollars (net)
In Stock: 7
In Stock
Please note our quantity discounts (US Dollars).
≥ 500$5.92
Prop 65: Not compliant
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
RoHS: Compliant
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 0.195 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351
All Prices are in US Dollars. Taxes Not Included.
