GN 3310 Push Button Switches Stainless Steel, with LED Light


GN 3310 Stainless Steel Push Button Switches, with LED Light Lighting: RG - Red / green (bi-color)
Connection type: K - PUR cable
Lighting: RG - Red / green (bi-color)
Connection type: K - PUR cable
GN 3310 Stainless Steel Push Button Switches, with LED Light Lighting: RG - Red / green (bi-color)
Connection type: K - PUR cable GN 3310 Stainless Steel Push Button Switches, with LED Light Lighting: RG - Red / green (bi-color)
Connection type: KS - 5-pin connector

Product description

Information

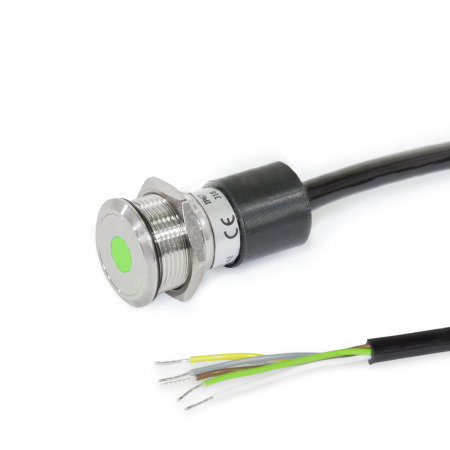

GN 3310 push button switches come with a changeover switch and integrated LED ring light.

When the button is pressed, an electrical control impulse to switch off a machine, for example, can be triggered based on the wiring of the contacts (NC or NO).

Independent of whether or not the button is actuated, the integrated LED ring lighting shines either red or green depending on the polarity of connections 1 and 2 of the LED.



Specification

Button
Stainless steel
European Standard No. 1.4301 (AISI 304)

Cable (outer sheath)
Polyurethan PUR
Black

Hexagon nut
Stainless steel
European Standard No. 1.4301 (AISI 304)

RoHS compliant

Accessory

Cables with connector coupling GN 330 (M12x1)

Technical drawing

3D
Hide technical drawing
GN 3310 Stainless Steel Push Button Switches, with LED Light sketch

Part Options / Table

Contact type

WChangeover contact

Lighting

RGRed / green (bi-color)

Identification no.

2Button rounded

Connection type

KPUR cable
KS5-pin connector
Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)
Cable length l in meter
Connection type K

Connection type KS
d
Connection type K

Connection type KS
A/F
250.25.24.20.87

Build & Price

Contact type

Lighting

Identification no.

Connection type


Cable length l (Connection type K)
Cable length l (Connection type KS)

Electrical and mechanical properties

Button
Contacts
Contact material
Switching voltages

Switching current
mech. lifespan
elect. lifespan


Changeover contact, snap contact
silver alloy
max. 125 V (connector)
max. 240 V (cable)
max. 3 A
106 switching cycles
50,000 switching cycles (under full load)

LED ring lighting
Operating voltage /
Operating current
bi-color (red / green)




24 Vdc ± 10 % / 7 mA

Category of use (button)

AC 15: 24 Vac / 1 A / DC 13: 24 Vdc / 0.7 A
AC 15: 110 Vac / 1 A / DC 13: 110 Vdc / 0.2 A
AC 15: 220 Vac / 0.5 A / DC 13: 220 Vdc / 0.1 A

according to IEC 60947-5-1

one operating cycle includes one opening and one closing action

AC: 120 Vac / 5 A / DC: 12 Vdc / 1 A
AC: 240 Vac / 3 A

according to UL 508

Connection type
Cable (K)
or
connector (KS)

Protection class


PUR cable with open stranded wires (2 m or 5 m)

5-pin connector M12x1 with PUR cable 0.25 m

IP 67

Tightening torque

5 - 12 Nm

Mounting cut-out

Ø 19 mm +0.3/+0.1

Approvals, conformity declarations
CE-marking

Selected Part

Total US Dollars (net)
$93.04
In stock: 0
Call / Email for Delivery Time
Please note our quantity discounts (US Dollars).
MinMaxPrice
19$93.04
1024$85.29
2549$77.54
≥ 50$69.78
Weight: -
If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351
RoHS compliant: -
This part is new in our product range, no details are available at this time. For more recent details on the RoHS compatibility, please contact our Sales Department!
Phone: 800-877-8351
All Prices are in US Dollars. Taxes Not Included.

CAD Download

Email CAD File

To receive an email with a CAD download without creating an account, please enter your e-mail address. Max of 3 CAD files per day unless you create an account.

Please enter the code you can find in the picture.



Save as Favorites

Please enter the code you can find in the picture.

Need Help?

Our service team is available from Monday to Friday between 7:30 AM and 5:00 PM Central Time: 800-877-8351

Special Requests | Contact our sales team
