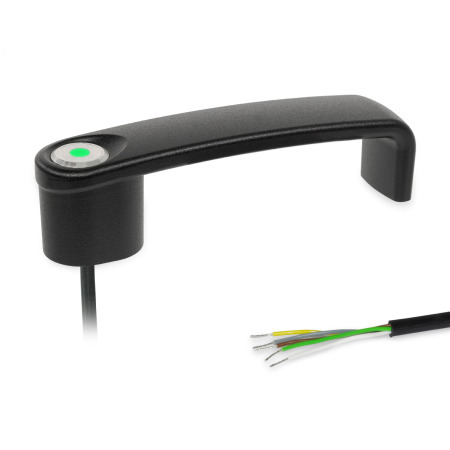

GN 422 Cabinet "U" Handles Zinc Die-Cast, with Power Switching Function, with 5-Pin Connector


GN 422 Zinc Die-Cast Cabinet "U" Handles, with Power Switching Function, with 5-Pin Connector Type: T1 - With 1 button
Color: SR - Silver, RAL 9006, textured finish
Type: T1 - With 1 button
Color: SR - Silver, RAL 9006, textured finish
GN 422 Zinc Die-Cast Cabinet "U" Handles, with Power Switching Function, with 5-Pin Connector Type: T1 - With 1 button
Color: SR - Silver, RAL 9006, textured finish GN 422 Zinc Die-Cast Cabinet "U" Handles, with Power Switching Function, with 5-Pin Connector Type: T1 - With 1 button
Color: SW - Black, RAL 9005, textured finish GN 422 Zinc Die-Cast Cabinet "U" Handles, with Power Switching Function, with 5-Pin Connector Type: T2 - With 2 buttons
Color: SR - Silver, RAL 9006, textured finish GN 422 Zinc Die-Cast Cabinet "U" Handles, with Power Switching Function, with 5-Pin Connector Type: T2 - With 2 buttons
Color: SW - Black, RAL 9005, textured finish

Product description

Information

GN 422 cabinet "U" handles come with one or two push buttons. Each button has a changeover switch and integrated LED ring lighting.

When the button is pressed, an electrical control impulse to switch off a machine, for example, can be triggered based on the wiring of the contacts (NC or NO).

Independent of whether or not the button is actuated, the integrated LED ring lighting shines either red or green depending on the polarity of connections 1 and 2 of the LED.

The cabinet "U" handle is functional and highly compact and can be used for any application due to its universal design.


Specification

Zinc die-castZD
Powder coated
Black, RAL 9005, textured finishSWSW
Silver, RAL 9006, textured finishSRSR

Button
Stainless steel
European Standard No. 1.4301 (AISI 304)

Cable (outer sheath)
Polyurethan PUR
Black


RoHS compliant

Accessory

Cables with connector coupling GN 330 (M12x1)

Technical drawing

3D
Hide technical drawing
GN 422 Zinc Die-Cast Cabinet "U" Handles, with Power Switching Function, with 5-Pin Connector sketch

Part Options / Table

Type

T1With 1 button
T2With 2 buttons

Connection type

S5-pin connector (with 0.25 m cable)
Show / Hide columns

Metric

Dimensions in: Inch | Metric
l1 ±0.0079l2
Type T1

Type T2
l3abd
Thread
ht
4.616.227.154.15.401.30M 61.73.47

Build & Price

Material

Type


Connection type

Color
SR
SW

Electrical and mechanical properties

Button
Contacts
Contact material
Switching voltage
Switching current
mech. lifespan
elect. lifespan


changeover contact, snap contact
silver alloy
max. 125 V (connector)
max. 3 A
106 switching cycles
50,000 switching cycles (under full load)

LED ring lighting
Operating voltage /
Operating current
bi-color (red / green)




24 Vdc ± 10 % / 7 mA

Category of use (button)

AC 15: 24 Vac / 1 A / DC 13: 24 Vdc / 0.7 A
AC 15: 110 Vac / 1 A / DC 13: 110 Vdc / 0.2 A
AC 15: 220 Vac / 0.5 A / DC 13: 220 Vdc / 0.1 A

according to IEC 60947-5-1

one operating cycle includes one opening and one closing action

AC: 120 Vac / 5 A / DC: 12 Vdc / 1 A
AC: 240 Vac / 3 A

according to UL 508

Connection type
Cable (K)
or
Connector (s)

Protection class


5-pin connector M12x1 with PUR cable 0.25 m



IP 67

Approvals, conformity declarations
CE-marking

Installation holes

The holes must be free of burrs to prevent damage to the cable.

Selected Part

Total US Dollars (net)
$139.57
In stock: 0
Call / Email for Delivery Time
Please note our quantity discounts (US Dollars).
MinMaxPrice
19$139.57
1024$127.94
2549$116.31
≥ 50$104.67
Weight: -
If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351
RoHS compliant: -
This part is new in our product range, no details are available at this time. For more recent details on the RoHS compatibility, please contact our Sales Department!
Phone: 800-877-8351
All Prices are in US Dollars. Taxes Not Included.
