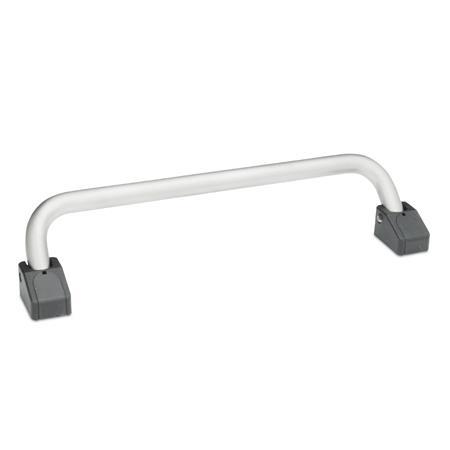

GN 425.5 Folding Handles Stainless Steel


Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products

Product description

Information

GN 425.5 folding handles are used in applications where the handle must not protrude or protrude only slightly. The handle is held in both end positions by means of a spring-loaded (spring disks) thrust bolt.

The static load capacity value given in the table is an approximate value which, if exceeded, may result in permanent deformation or fracture of the plastic attachment part. Folding handles GN 425.2 may be used as an alternative.

Specification

Handle
Stainless steelNI
European Standard No. 1.4305 (AISI 303),
matte shot-blasted finish

Attachment parts
Plastic
Technopolymer (Polyamide PA)
  • Temperature resistant up to 480 °F (250 °C)
  • Black, matte finish

Covers
Plastic
Technopolymer (Polyamide PA)
  • Temperature resistant up to 212 °F (100 °C)
  • Black-gray, matte finish



RoHS compliant

Technical drawing

Hide technical drawing
GN 425.5 Stainless Steel Folding Handles sketch

Part Options / Table

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)
Length±0.01h1h2h3F1
Static load
Folded out
3.941.341.752.17112 lbf (500 N)
4.721.341.752.17112 lbf (500 N)
7.091.341.752.17112 lbf (500 N)

Build & Price

Length l
Material

Selected Part

Total USD (net)
$29.09
In stock: 0
Call / Email for Delivery Time
Please note our quantity discounts (USD).
MinMaxPrice
199$29.09
100249$26.66
250499$24.24
≥ 500$21.82
Weight: 0.243 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351
RoHS compliant: Yes
This article conforms to RoHS, which means it complies with EU Directive 2011/65/EU for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
All Prices are in US Dollars. Taxes Not Included.
