Part Options / Table

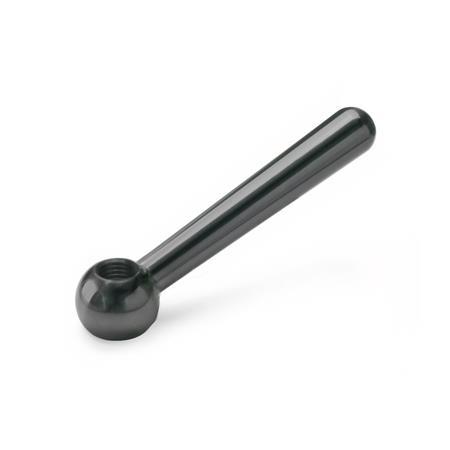

Type K Straight lever with plain bore M Straight lever with tapped bore L Angled lever with plain bore N Angled lever with tapped bore
Show / Hide columns Part Number M - Straight lever with tapped bore Part Number N - Angled lever with tapped bore Part Number K - Straight lever with plain bore Part Number L - Angled lever with plain bore l1 d1
Thread
Type M
Type Nd2 +0.001
Bore
Type K
Type Lb d3 d4 ≈ d5 -0.008 h ≈ l2 ≈
1.97 2.48 3.15 3.94 4.92 6.30 M 6 M 8 M 10 M 12 M 16 M 20 M 6 M 8 M 10 M 12 M 16 M 20 B 6 B 8 B 10 B 12 B 16 B 20 B 6 B 8 B 10 B 12 B 16 B 20 0.37 0.47 0.57 0.73 0.94 1.18 0.31 0.39 0.51 0.63 0.79 0.98 0.30 0.43 0.59 0.75 0.93 1.16 0.47 0.63 0.79 0.98 1.26 1.57 0.94 1.20 1.50 1.85 2.34 2.99 1.89 2.36 2.99 3.74 4.69 5.98 6NA53/M 6NA53/N 1.97 M 6 M 6 B 6 B 6 0.37 0.31 0.30 0.47 0.94 1.89
6MA53/K 6MA53/L 1.97 M 6 M 6 B 6 B 6 0.37 0.31 0.30 0.47 0.94 1.89
8NA54/M 8NA54/N 2.48 M 8 M 8 B 8 B 8 0.47 0.39 0.43 0.63 1.20 2.36
8MA54/K 8MA54/L 2.48 M 8 M 8 B 8 B 8 0.47 0.39 0.43 0.63 1.20 2.36
10NA55/M 10NA55/N 3.15 M 10 M 10 B 10 B 10 0.57 0.51 0.59 0.79 1.50 2.99
10MA55/K 10MA55/L 3.15 M 10 M 10 B 10 B 10 0.57 0.51 0.59 0.79 1.50 2.99
12NA56/M 12NA56/N 3.94 M 12 M 12 B 12 B 12 0.73 0.63 0.75 0.98 1.85 3.74
12MA56/K 12MA56/L 3.94 M 12 M 12 B 12 B 12 0.73 0.63 0.75 0.98 1.85 3.74
16NA57/M 16NA57/N 4.92 M 16 M 16 B 16 B 16 0.94 0.79 0.93 1.26 2.34 4.69
16MA57/K 16MA57/L 4.92 M 16 M 16 B 16 B 16 0.94 0.79 0.93 1.26 2.34 4.69
20NA58/M 20NA58/N 6.30 M 20 M 20 B 20 B 20 1.18 0.98 1.16 1.57 2.99 5.98
20MA58/K 20MA58/L 6.30 M 20 M 20 B 20 B 20 1.18 0.98 1.16 1.57 2.99 5.98
Filter combination produces no result.
Show / Hide columns Metric l1 d1
Thread
Type M
Type Nd2 +0.001
Bore
Type K
Type Lb d3 d4 ≈ d5 -0.008 h ≈ l2 ≈
1.97 2.48 3.15 3.94 4.92 6.30 7.87 M 6 M 8 M 10 M 12 M 16 M 20 M 6 M 8 M 10 M 12 M 16 M 20 M 24 B 6 B 8 B 10 B 12 B 16 B 20 B 6 B 8 B 10 B 12 B 16 B 20 B 24 0.37 0.47 0.57 0.73 0.94 1.18 1.57 0.31 0.39 0.51 0.63 0.79 0.98 1.26 0.30 0.43 0.59 0.75 0.93 1.16 1.30 0.47 0.63 0.79 0.98 1.26 1.57 1.97 0.94 1.20 1.50 1.85 2.34 2.99 3.82 1.89 2.36 2.99 3.74 4.69 5.98 7.48
1.97 M 6 M 6 B 6 B 6 0.37 0.31 0.30 0.47 0.94 1.89
2.48 M 8 M 8 B 8 B 8 0.47 0.39 0.43 0.63 1.20 2.36
3.15 M 10 M 10 B 10 B 10 0.57 0.51 0.59 0.79 1.50 2.99
3.94 M 12 M 12 B 12 B 12 0.73 0.63 0.75 0.98 1.85 3.74
4.92 M 16 M 16 B 16 B 16 0.94 0.79 0.93 1.26 2.34 4.69
6.30 M 20 M 20 B 20 B 20 1.18 0.98 1.16 1.57 2.99 5.98
7.87 - M 24 - B 24 1.57 1.26 1.30 1.97 3.82 7.48
Filter combination produces no result.
Build & Price
3D Product Configurator
Lever length l1
Thread d1
Bore d2
Type
Lever length l1
Thread d1
Bore d2
Type
Selected Part
Part Number
Total US Dollars (net)
$6.33
In Stock: 88
In Stock
Quantity
Please note our quantity discounts (US Dollars).
Min Max Price 1 99 $6.33 100 249 $5.80 250 499 $5.28 ≥ 500 $4.75
Prop 65: Not compliant
RoHS: Compliant
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS (R estriction o f (the use of certain) h azardous s ubstances)).
Weight: 0.037 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight. Phone: 800-877-8351
All Prices are in US Dollars. Taxes Not Included.
