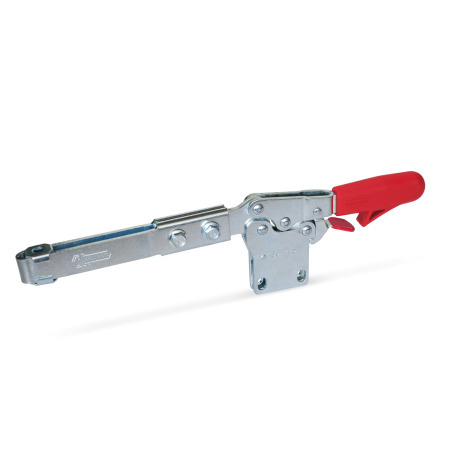

GN 820.4 Extended Arm Horizontal Acting Toggle Clamps Steel, with Safety Hook, with Vertical Mounting Base


GN 820.4 Steel Extended Arm Horizontal Acting Toggle Clamps, with Safety Hook, with Vertical Mounting Base Type: VLC - Clamping arm extended, with slotted hole, two flanged washers and GN 708.1 spindle assembly
Type: VLC - Clamping arm extended, with slotted hole, two flanged washers and GN 708.1 spindle assembly
GN 820.4 Steel Extended Arm Horizontal Acting Toggle Clamps, with Safety Hook, with Vertical Mounting Base Type: VLC - Clamping arm extended, with slotted hole, two flanged washers and GN 708.1 spindle assembly GN 820.4 Steel Extended Arm Horizontal Acting Toggle Clamps, with Safety Hook, with Vertical Mounting Base Type: VL - Clamping arm extended, with slotted hole and with two flanged washers

Product description

Information

GN 820.4 extended arm horizontal acting toggle clamps have a safety function whereby, during closing, a spring loaded safety hook latch ensures a secure locking connection. It prevents the inadvertent unlocking of the clamp due to vibrations or an accidental attempt of loosening / opening of the clamp. To open and release the clamp, pull up on the finger grip to disengage the safety hook latch mechanism (one hand operation).

They work according to the toggle principle: lever and clamping bar move in the opposite direction. They require less space for the clamping action.

Extended arm horizontal acting toggle clamps in the U-bar version with two flanged washers (Type VL) can accommodate an application specific spindle assembly. A spindle assembly with neoprene rubber tip is also included for Type VLC.

Specification

Toggle clamp
Case-hardened steel C10
  • Zinc plated, blue passivated finish
  • Tempered bearing pins
  • Case-hardened bearing rivets

All moving parts lubricated with special grease

Hand grip
High quality, oil resistant red plastic

Spindle assembly GN 708.1, Type A
  • Steel, zinc plated, blue passivated finish
  • Rubber tip 85 shore A

RoHS compliant

Accessory

Spindle assemblies
GN 801 clamp mounts (for Type VL)
GN 801.1 clamping arm extenders (for Type VL)
GN 801.2 clamping arm extenders (for Type VL)

Technical drawing

3D
Hide technical drawing
GN 820.4 Steel Extended Arm Horizontal Acting Toggle Clamps, with Safety Hook, with Vertical Mounting Base sketch

Part Options / Table

Type

VLClamping arm extended, with slotted hole and with two flanged washers
VLCClamping arm extended, with slotted hole, two flanged washers and GN 708.1 spindle assembly
Show / Hide columns

Metric

Dimensions in: Inch | Metric
SizeFH
Holding
capacity
a ≈b1b2b3b4d1
Thread
d2h1h2h3
130135 lbf (600 N)2.661.420.390.200.25M 60.222.541.730.63
230247 lbf (1100 N)2.811.730.470.240.32M 80.262.972.010.71
Show / Hide columns
Dimensions in: Inch (change to Metric)
Sizeh4h5
max.
l1l2l3l4
max.
m1m2m3m4r ≈w
Adjustable
range
1301.001.089.886.735.202.521.020.230.350.305.550.69
2301.181.0611.147.725.933.071.020.260.260.266.300.79

Build & Price

Size
Type


Selected Part

Total US Dollars (net)
$31.25
In stock: 4
In stock
Please note our quantity discounts (US Dollars).
MinMaxPrice
149$31.25
5099$28.64
100249$26.04
≥ 250$23.44
Weight: -
If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351
RoHS compliant: -
This part is new in our product range, no details are available at this time. For more recent details on the RoHS compatibility, please contact our Sales Department!
Phone: 800-877-8351
All Prices are in US Dollars. Taxes Not Included.
