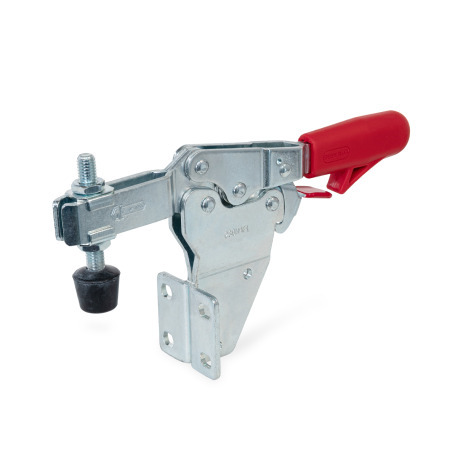

GN 820.5Horizontal Acting Toggle ClampsSteel / Stainless Steel, with Safety Hook, with Vertical Mounting Base
Product Family Stainless Steel
Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.
Horizontal acting toggle clamps GN 820.5 are securely locked while in the clamped position to prevent release by accident or due to vibrations. To release the clamp, the safety hook is disengaged with a single-handed operation.
Clamping is based on the toggle lever principle, with the clamping lever and clamping arm moving in opposite directions. The mounting surface, rotated by 90°, allows for compact installation next to the clamping point. The low overall height in the clamped position is another distinguishing feature of these clamps.
Horizontal acting toogle clamps in the u-bar version (type MFL) accommodate an application-specific screw via two flanged washers. A spindle assembly with rubber thrust pad is additionally included with type MFLC.
Specification
Tensioning mechanism
SteelST
Sheet metal parts
Case hardening steel C10, zinc plated,
blue passivated finish
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 0.231 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight. Phone: 800-877-8351
