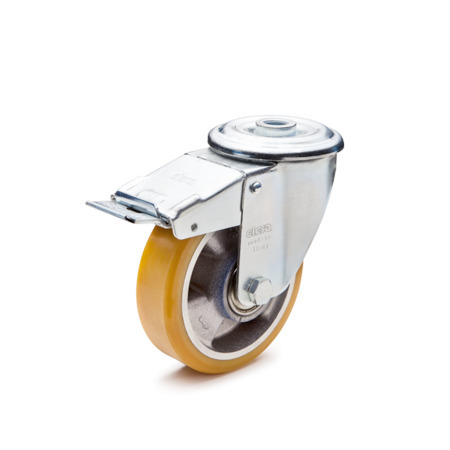

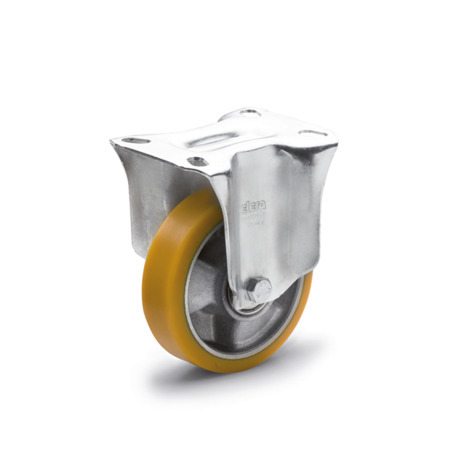

EN 22885 Medium Duty Casters Polyurethane Wheel Tread, Aluminum Wheel Core, Light Version

Medium Duty Casters EN 22885: Polyurethane Wheel Tread, Aluminum Wheel Core, Light Version
Original design RE.F5-N / -N-ESD / -SST-N-ESD
Bearing type: K - Ball bearing
Bracket type: RF - Swivel bracket with center hole, with total lock brake
Coding: L - Light version
Bracket material: ST - Steel sheet metal, zinc plated
ESD

Product Family ESD

ESD standard parts are made of conductive materials which help to eliminate static charges. They are used in applications where components sensitive to static charges are handled.

  • antistatic properties
  • complying with IEC 61340-5-1.
Show all ESD products
Application Video - Wheels and Casters General Notes and Overview of Types Operating Conditions and Technical Information Plastic Characteristics Stainless Steel Characteristics

Product description

Medium duty casters EN 22885 are used in industrial and public indoor areas for moving lightweight carts, for example.

The wheel tread offers low rolling resistance and high elasticity as well as good wear and tearing resistance.

Medium duty casters in versions STE / NIE are suitable for use in an electrostatic protected area (EPA). The plastic used for the wheel tread provides for controlled conduction of electrostatic charges.

The low wear on the ball bearing increases the service life, and the mounting to the inner ring can be accomplished with zero axial backlash.

Specification

Wheel tread

  • Plastic, polyurethane (PUR) for ST
    • Cast
    • Yellow
    • Hardness 92 Shore A
  • Plastic, polyurethane (PUR) at STE / NIE
    • Electrically conductive (ESD)
      Resistance < 109 Ω (ISO 22878:2004)
    • Cast
    • Dark gray
    • Wear resistant
    • Hardness 90 Shore A

Wheel core
Aluminum die-cast

Bracket

  • Steel sheet metal, zinc platedST
  • Steel sheet metal, zinc plated, with ESD wheelSTE
  • Stainless steel sheet metal AISI 304, with ESD wheelNIE

Swivel head bracket

  • Dual grease-lubricated ball bearing
  • Dust protection ring on type L / LF
    Plastic, polyethylene (PE)

Operating temperature
-4 °F to 176 °F (-20 °C to +80 °C)

RoHS

EN 22885 Steel Medium Duty Casters, Polyurethane Wheel Tread, Aluminum Wheel Core, Light Version sketch
Hide technical drawing
EN 22885 Steel Medium Duty Casters, Polyurethane Wheel Tread, Aluminum Wheel Core, Light Version sketch

Part Options / Table

Bearing type

KBall bearing

Bracket type

BRigid bracket
LSwivel bracket with mounting plate
LFSwivel bracket with mounting plate, with total lock brake
RSwivel bracket with center hole
RFSwivel bracket with center hole, with total lock brake

Coding

LLight version
Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)
d1
Wheel Ø		bd2d3d4h
Type B / L / LF
Type R / RF		l1l2l3m1m2m3m4rMax. dynamic
load capacity
Material ST
Material STE / NIE
3.150.980.350.472.874.214.213.943.351.571.772.362.953.154.72450 lbf (2000 N)382 lbf (1700 N)
3.941.180.350.472.875.045.043.943.351.381.772.362.953.154.72450 lbf (2000 N)450 lbf (2000 N)
4.921.380.350.472.876.146.143.943.351.461.772.362.953.154.72495 lbf (2200 N)495 lbf (2200 N)
5.911.570.430.794.027.647.405.514.332.202.873.434.134.136.14674 lbf (3000 N)674 lbf (3000 N)
7.871.970.430.794.029.459.295.514.332.202.873.434.134.136.14674 lbf (3000 N)674 lbf (3000 N)

Build & Price
Wheel diameter d1
Bearing type

Bracket type





Coding

Bracket material



Wheel diameter d1
Bearing type

Bracket type





Coding

Bracket material



Suitable for Floor Type

The type of the floor and the possible obstacles are factors that influence the amount of force required to move the cart as well as the transmission of vibrations and the wear on the wheel.
Based on the characteristics of the floor, the guidelines apply to selecting the right wheel:

  • For irregular floors and in the case of obstacles, the wheels should have soft and thick tread and large diameter.
  • For smooth floors and heavy loads, the wheels should have hard tread.

The following table shows the suitable floor type for each wheel in simplified form.
Show / Hide columns
StandardTilesAsphaltCement-resin,
concrete		Unpaved floorGrate floorFloor with chipsFloor with obstacles
EN 22870x-----x
EN 22872x-x----
EN 22873xxxxxxx
EN 22874xxxxxxx
EN 22875xxxxxxx
EN 22880x-x---x
EN 22882x-x----
EN 22884x-x---x
EN 22885x-x----
EN 22886xxxxxxx
EN 22887x-x----
EN 22892x-x----
EN 22894x-x----
EN 22868x-x----

Selected Part

Total (net)
US$26.21
Call / Email for Delivery Time
Create Project List
Save as Favorites
Recommend a product
Please note our quantity discounts (US Dollars).
MinMaxPrice
124US$26.21
2549US$24.02
5099US$21.84
≥ 100US$19.66
Prop 65: Not compliant
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
RoHS: Compliant
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 1.146 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
