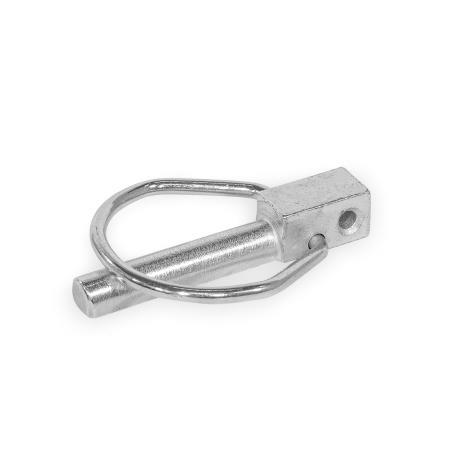

GN 1023 Linch Pins Steel

Type: B - Angled spring retainer, with hole for loss prevention

Product description

Linch pins GN 1023 are used for quick and easy axial securing of bolts and axles in mounting holes. For example, they are suitable for lugs and flanges that must be frequently assembled and disassembled.

Type B has an additional hole in which a key ring or retaining cable can be attached to prevent loss.

Linch pins are simple standard parts that have larger tolerances due to their manufacturing process.

Specification

SteelST
Galvanic zinc plated

RoHS

Accessory

Key Rings GN 111.3
Retaining Cables GN 111.2
Spiral Retaining Cables GN 111.4
Ball Chains GN 111 (Brass)
Ball Chains GN 111.5 (Stainless Steel)

Hide technical drawing

Part Options / Table

Type

A	Round spring retainer
B	Angled spring retainer, with hole for loss prevention

Part Number	Type	d₁ ≈	l₁	a ≈	b max.	d₂ H11	d₃ Shaft Ø max.	d₄	l₂ ≈	m₁ max.	m₂ min.	Suitable key ring

1023-ST-4.5-40-A	A	0.18	1.57	-	1.85	0.20 H11	1.04	0.13	1.77	0.31	0.23	-
1023-ST-6-42-A	A	0.24	1.65	-	1.89	0.26 H11	1.06	0.13	1.85	0.39	0.28	-
1023-ST-7-42-A	A	0.28	1.65	0.22	1.89	0.30 H11	1.06	0.13	1.85	0.43	0.30	-
1023-ST-8-42-A	A	0.31	1.65	0.26	1.89	0.33 H11	1.06	0.13	1.85	0.47	0.30	-
1023-ST-9-42-A	A	0.35	1.65	0.30	1.89	0.37 H11	1.06	0.13	1.89	0.51	0.30	-
1023-ST-10-42-A	A	0.39	1.65	0.31	1.89	0.43 H11	1.06	0.13	1.89	0.59	0.30	-
1023-ST-11-42-A	A	0.43	1.65	0.35	1.89	0.47 H11	1.06	0.13	1.93	0.71	0.30	-

Part Number	Type	d₁ ≈	l₁	a ≈	b max.	d₂ H11	d₃ Shaft Ø max.	d₄	l₂ ≈	m₁ max.	m₂ min.	Suitable key ring

1023-ST-5-32-B	B	0.20	1.26	-	1.42	0.20 H11	0.98	0.10	1.40	0.31	0.23	111.3-18
1023-ST-6-42-B	B	0.24	1.65	-	2.05	0.24 H11	1.26	0.14	1.77	0.39	0.28	111.3-24
1023-ST-8-42-B	B	0.31	1.65	-	2.05	0.31 H11	1.26	0.14	1.81	0.47	0.30	111.3-24
1023-ST-10-45-B	B	0.39	1.77	0.31	2.05	0.39 H11	1.26	0.14	1.89	0.55	0.30	111.3-30
1023-ST-12-55-B	B	0.47	2.17	0.35	2.36	0.47 H11	1.77	0.16	2.48	0.71	0.30	111.3-38

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

Type	d₁ ≈	l₁	a ≈	b max.	d₂ H11	d₃ Shaft Ø max.	d₄	l₂ ≈	m₁ max.	m₂ min.	Suitable key ring

A	0.18	1.57	-	1.85	0.20	1.04	0.13	1.77	0.31	0.23	-
A	0.24	1.65	-	1.89	0.26	1.06	0.13	1.85	0.39	0.28	-
A	0.28	1.65	0.22	1.89	0.30	1.06	0.13	1.85	0.43	0.30	-
A	0.31	1.65	0.26	1.89	0.33	1.06	0.13	1.85	0.47	0.30	-
A	0.35	1.65	0.30	1.89	0.37	1.06	0.13	1.89	0.51	0.30	-
A	0.39	1.65	0.31	1.89	0.43	1.06	0.13	1.89	0.59	0.30	-
A	0.43	1.65	0.35	1.89	0.47	1.06	0.13	1.93	0.71	0.30	-
B	0.20	1.26	-	1.42	0.20	0.98	0.10	1.40	0.31	0.23	111.3-18
B	0.24	1.65	-	2.05	0.24	1.26	0.14	1.77	0.39	0.28	111.3-24
B	0.31	1.65	-	2.05	0.31	1.26	0.14	1.81	0.47	0.30	111.3-24
B	0.39	1.77	0.31	2.05	0.39	1.26	0.14	1.89	0.55	0.30	111.3-30
B	0.47	2.17	0.35	2.36	0.47	1.77	0.16	2.48	0.71	0.30	111.3-38

Build & Price

Selected Part

Part Number

Total (net)

US$0.85

Call / Email for Delivery Time

Create Project List

Save as Favorites

Please note our quantity discounts (US Dollars).

Min	Max	Price
1	99	US$0.85
100	249	US$0.78
250	499	US$0.71
≥ 500		US$0.63

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.044 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
