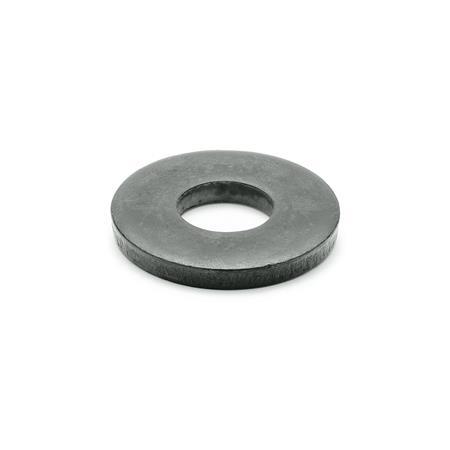

DIN 6340 Heavy Duty Washers Steel


DIN 6340 Steel Heavy Duty Washers

Product description

Information

DIN 6340 heavy duty washers are mainly used for elongated holes.

Specification

Heat-treated steel

  • Tempered
  • Hardness (350 + 80) HV 30
  • Phosphate-treated
  • Punched, not deburred

RoHS

Technical drawing

3D
Hide technical drawing
DIN 6340 Steel Heavy Duty Washers sketch

Part Options / Table

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)
d1d2sFor screws
with thread size
0.250.670.12M 6
0.330.910.16M 8
0.411.100.16M 10
0.511.380.20M 12
0.591.570.20M 14
0.671.770.24M 16
0.751.770.24M 18
0.831.970.24M 20
0.911.970.31M 22
0.982.360.31M 24
1.102.680.39M 27
1.222.680.39M 30
1.503.150.47M 36
1.733.940.59M 42
1.974.330.67M 48

Build & Price

3D Product Configurator
Inner diameter d1

Selected Part

Total US Dollars (net)
$0.20
In Stock: 579
In Stock
Please note our quantity discounts (US Dollars).
MinMaxPrice
199$0.20
100249$0.19
250499$0.17
≥ 500$0.15
Prop 65: Not compliant
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
RoHS: Compliant
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 0.009 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351
All Prices are in US Dollars. Taxes Not Included.
