GN 337 Lift-Off Hinges Stainless Steel, with Countersunk Bores

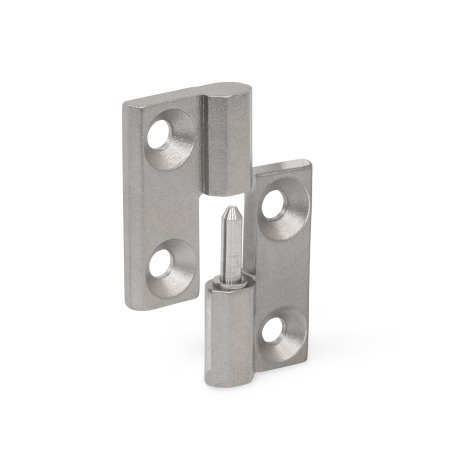

GN 337 Stainless Steel Lift-Off Hinges, with Countersunk Bores Material: NI - Stainless steel
Identification No.: 1 - Fixed bearing (pin) right
Material: NI - Stainless steel
Identification No.: 1 - Fixed bearing (pin) right
GN 337 Stainless Steel Lift-Off Hinges, with Countersunk Bores Material: NI - Stainless steel
Identification No.: 1 - Fixed bearing (pin) right GN 337 Stainless Steel Lift-Off Hinges, with Countersunk Bores Material: NI - Stainless steel
Identification No.: 2 - Fixed bearing (pin) left
Stainless-Steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products

Product description

Information

GN 337 lift-off hinges are a variation of GN 237 hinges, which are designed so the two sides of the hinge can be easily detached from one another.

Specification

Body
Stainless steelNI AISI CF-8
Matte shot-blasted finishGS
Pin
Stainless steel AISI 303
Washer
Plastic

RoHS compliant

Technical drawing

3D
Hide technical drawing
GN 337 Stainless Steel Lift-Off Hinges, with Countersunk Bores sketch

Part Options / Table

Type

A2x2 bores for countersunk screws

Identification no.

1Fixed bearing (pin) right
2Fixed bearing (pin) left
Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)
l1l2d1d2h1h2h3h4 +0.02l3m1m2
1.571.570.210.160.350.200.220.430.630.980.98
1.971.970.250.240.450.240.260.510.831.181.18
2.362.360.330.310.590.310.330.671.021.421.42

Build & Price

3D Product Configurator
Material

Width l1
Length l2
Type

Identification No.


Finish

Selected Part

Total US Dollars (net)
$20.95
In Stock: 27
In Stock
Please note our quantity discounts (US Dollars).
MinMaxPrice
199$20.95
100249$19.20
250499$17.46
≥ 500$15.71
Prop 65: Not compliant
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
RoHS: Compliant
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 0.114 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351
All Prices are in US Dollars. Taxes Not Included.

CAD Download

Other Data Formats

Email CAD File

To receive an email with a CAD download without creating an account, please enter your e-mail address. Max of 3 CAD files per day unless you create an account.

Please enter the code above.

CAD Download Tutorial About CAD Downloads
Save as Favorites

Please enter the code above.

Need Help?

Our service team is available from Monday to Friday between 7:30 AM and 5:00 PM Central Time: 800-877-8351

Special Requests | Contact our sales team

GN 337-NI-40-40-A-1-GSGN 337-NI-40-40-A-2-GSGN 337-NI-50-50-A-1-GSGN 337-NI-50-50-A-2-GSGN 337-NI-60-60-A-1-GSGN 337-NI-60-60-A-2-GS
