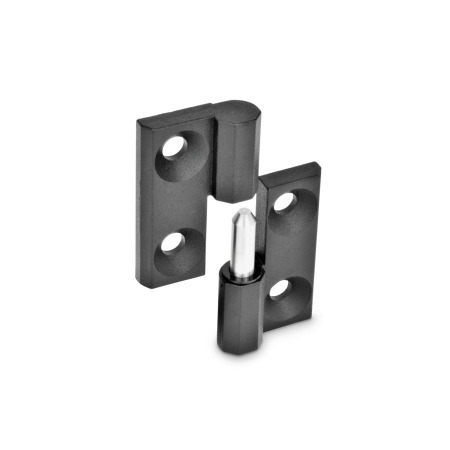

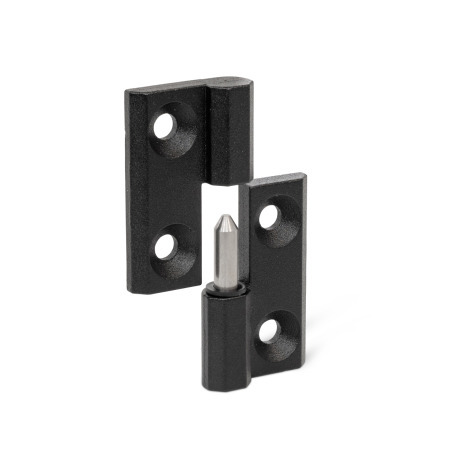

GN 337 Lift-Off Hinges Zinc Die-Cast, with Countersunk Bores


GN 337 Zinc Die-Cast Lift-Off Hinges, with Countersunk Bores Material: ZD - Zinc die-cast
Finish: SW - Black, RAL 9005, textured finish
Identification no.: 1 - Fixed bearing (pin) right
Material: ZD - Zinc die-cast
Finish: SW - Black, RAL 9005, textured finish
Identification no.: 1 - Fixed bearing (pin) right
GN 337 Zinc Die-Cast Lift-Off Hinges, with Countersunk Bores Material: ZD - Zinc die-cast
Finish: SW - Black, RAL 9005, textured finish
Identification no.: 1 - Fixed bearing (pin) right GN 337 Zinc Die-Cast Lift-Off Hinges, with Countersunk Bores Material: ZD - Zinc die-cast
Finish: SR - Silver, RAL 9006, textured finish
Identification no.: 1 - Fixed bearing (pin) right GN 337 Zinc Die-Cast Lift-Off Hinges, with Countersunk Bores Material: ZD - Zinc die-cast
Finish: SR - Silver, RAL 9006, textured finish
Identification no.: 2 - Fixed bearing (pin) left GN 337 Zinc Die-Cast Lift-Off Hinges, with Countersunk Bores Material: ZD - Zinc die-cast
Finish: SW - Black, RAL 9005, textured finish
Identification no.: 2 - Fixed bearing (pin) left

Product description

Information

GN 337 lift-off hinges are a variation of GN 237 hinges, which are designed so the two sides of the hinge can be easily detached from one another.

Specification

Body
Zinc die-castZD
Powder coated
Black, RAL 9005, textured finishSWSW
Silver, RAL 9006, textured finishSRSR

Pin
Stainless steel AISI 303

Washer
Plastic

RoHS compliant

Technical drawing

3D
Hide technical drawing
GN 337 Zinc Die-Cast Lift-Off Hinges, with Countersunk Bores sketch

Part Options / Table

Type

A2x2 bores for countersunk screws

Identification no.

1Fixed bearing (pin) right
2Fixed bearing (pin) left
Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)
l1l2d1d2h1h2h3h4 +0.02l3m1m2
1.571.570.210.160.350.200.220.430.630.980.98
1.971.970.250.240.450.240.260.510.831.181.18
2.362.360.330.310.590.310.330.671.021.421.42

Build & Price

3D Product Configurator
Material

Width l1
Length l2
Type

Identification no.


Finish
SR
SW

Selected Part

Total US Dollars (net)
$12.26
In Stock: 42
In Stock
Please note our quantity discounts (US Dollars).
MinMaxPrice
199$12.26
100249$11.24
250499$10.22
≥ 500$9.19
Prop 65: Not compliant
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
RoHS: Compliant
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 0.088 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351
All Prices are in US Dollars. Taxes Not Included.

CAD Download

Other Data Formats

Email CAD File

To receive an email with a CAD download without creating an account, please enter your e-mail address. Max of 3 CAD files per day unless you create an account.

Please enter the code above.

CAD Download Tutorial About CAD Downloads
Save as Favorites

Please enter the code above.

Need Help?

Our service team is available from Monday to Friday between 7:30 AM and 5:00 PM Central Time: 800-877-8351

Special Requests | Contact our sales team

GN 337-ZD-60-60-A-2-SWGN 337-ZD-50-50-A-1-SWGN 337-ZD-40-40-A-2-SRGN 337-ZD-50-50-A-1-SRGN 337-ZD-40-40-A-1-SRGN 337-ZD-50-50-A-2-SRGN 337-ZD-60-60-A-2-SRGN 337-ZD-40-40-A-2-SWGN 337-ZD-50-50-A-2-SWGN 337-ZD-60-60-A-1-SRGN 337-ZD-60-60-A-1-SWGN 337-ZD-40-40-A-1-SW
