Load Rings GN 587.2

Type: P - For flat surfaces

Operating Instruction GN 587.2 (Type P) Operating Instruction GN 587.2 (Type K)

Product description

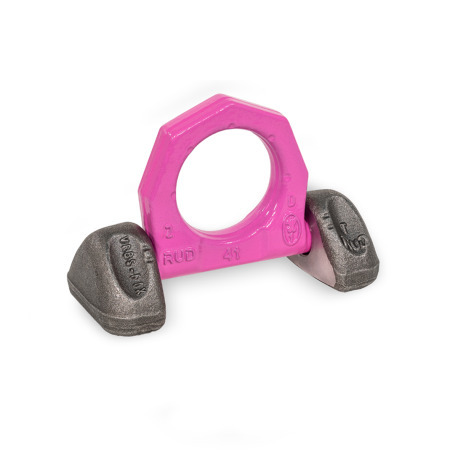

Load rings GN 587.2 are used with separate lifting gear and lashing equipment. They are welded to load-bearing equipment or directly onto the load itself and absorb loads in any direction.

Load rings of type K can be attached directly to the edge and have a large swivel range. The spacer blocks allow a circumferential weld seam in accordance with the instructions for welding on the standard sheet.

The radial clamping springs hold the ring in any position and dampen any noise caused by vibrations. All parts are captive and connected to each other.

The nominal load capacity is indicated on the load ring. Load rings GN 587.2 comply with the Machinery Directive 2006/42/EC and DGUV rules GS-HM-36.

Specification

Load ring
Steel, German Material No. 1.6541

Forged
High-tensile tempered
100 % electro magnetic tensile tested to
EN 1677-1
Powder coated, pink

Weld-on blocks
Steel, German Material No. 1.0577+N (ST52-3)

Forged, plain finish
100 % electro magnetic tensile tested to
EN 1677-1

RoHS

Your Contact

You are looking for a Winco partner near you?

Part Number K - For 90° edges	Part Number P - For flat surfaces	d Type K	Type P	b	h₁	h₂	h₃	h₄ Type K	k₁	k₂ Type K	k₃ Type P	Length l	Nominal load capacity in t (WLL)


587.2-48-K		1.89	-	5.55	3.11	2.56	1.10	1.14	0.55	1.20	-	2.72	4
	587.2-48-P	-	1.89	5.20	3.07	2.91	1.54	-	0.55	-	2.36	2.72	4
587.2-60-K		2.36	-	7.13	4.09	3.31	1.38	1.30	0.79	1.46	-	3.56	6.7
	587.2-60-P	-	2.36	6.57	4.61	3.82	1.97	-	0.79	-	3.46	3.56	6.7
587.2-65-K		2.56	-	8.35	4.57	3.70	1.81	1.81	0.98	1.97	-	3.84	10
	587.2-65-P	-	2.56	7.52	5.12	4.25	2.36	-	0.98	-	3.94	3.84	10

d Type K	Type P	b	h₁	h₂	h₃	h₄ Type K	k₁	k₂ Type K	k₃ Type P	Length l	Nominal load capacity in t (WLL)

1.89	-	5.55	3.11	2.56	1.10	1.14	0.55	1.20	-	2.72	4
-	1.89	5.20	3.07	2.91	1.54	-	0.55	-	2.36	2.72	4
2.36	-	7.13	4.09	3.31	1.38	1.30	0.79	1.46	-	3.56	6.7
-	2.36	6.57	4.61	3.82	1.97	-	0.79	-	3.46	3.56	6.7
2.56	-	8.35	4.57	3.70	1.81	1.81	0.98	1.97	-	3.84	10
-	2.56	7.52	5.12	4.25	2.36	-	0.98	-	3.94	3.84	10
