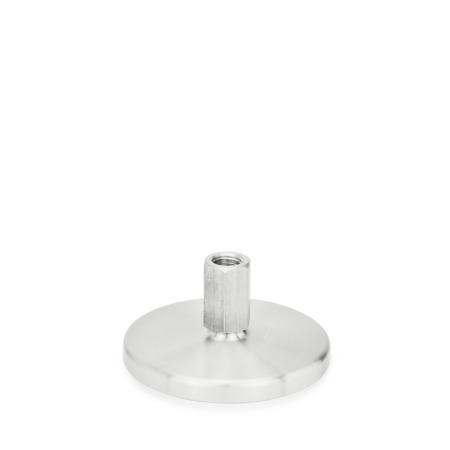

Version (Stud / Socket): X - External hex, tapped socket type

Type (Base): D0 - Fine turned, without rubber pad
Version (Stud / Socket): X - External hex, tapped socket type

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

Standard Sheet GN 21 Print This Page Load Rating Information Plastic Characteristics Stainless Steel Characteristics

Product description

Information

Leveling feet GN 21 have a machined base and higher load ratings. The unique design of the base with the convex mounting area for the concave ended stud provides not only the ability for the stud to swivel, but also does not allow liquids to build up as it will with other ball socket leveling feet.

These leveling feet are supplied fully assembled and cannot be disassembled.

Specification

Base
Stainless steel AISI 304

Threaded stud / tapped socket
Stainless steel AISI 303

Hex nut ISO 4032
Stainless steel AISI 304

Rubber pad inlay
NBR (Perbunan^®) 70 Shore A, black

RoHS

Technical drawing

GN 21 Metric Thread, Stainless Steel Leveling Feet, Tapped Socket or Threaded Stud Type, with Turned Base, without Mounting Holes sketch

Hide technical drawing

Part Options / Table

Type (Base)

D0	Fine turned, without rubber pad
D1	Fine turned, with rubber pad inlay, black

Version (Stud / Socket)

S	Without nut, external hex at the bottom
SK	With nut, external hex at the bottom
T	Without nut, wrench flat at the bottom
TK	With nut, wrench flat at the bottom
U	Without nut, internal hex at the top, wrench flat at the bottom
UK	With nut, internal hex at the top, wrench flat at the bottom
V	Without nut, external hex at the top, wrench flat at the bottom
VK	With nut, external hex at the top, wrench flat at the bottom
W	With adjustable sleeve, covered thread, wrench flat at the bottom
X	External hex, tapped socket type

Part Number D0 - Fine turned, without rubber pad	Part Number D1 - Fine turned, with rubber pad inlay, black	d₁	d₂	l₁ Version S / SK	Version T / TK and U / UK	l₂ Version V / VK	l₃ ≈ Version W	l₇ Version X	h₁	h₂

21-80-M8-34-D0-X		3.15	M 8	-	-	-	-	1.34	0.33	-
	21-80-M8-34-D1-X	3.15	M 8	-	-	-	-	1.34	-	0.08
21-80-M10-37-D0-X		3.15	M 10	-	-	-	-	1.46	0.33	-
	21-80-M10-37-D1-X	3.15	M 10	-	-	-	-	1.46	-	0.08
21-80-M12-40-D0-X		3.15	M 12	-	-	-	-	1.57	0.33	-
	21-80-M12-40-D1-X	3.15	M 12	-	-	-	-	1.57	-	0.08
21-80-M16-46-D0-X		3.15	M 16	-	-	-	-	1.81	0.33	-
	21-80-M16-46-D1-X	3.15	M 16	-	-	-	-	1.81	-	0.08
21-80-M20-54-D0-X		3.15	M 20	-	-	-	-	2.13	0.33	-
	21-80-M20-54-D1-X	3.15	M 20	-	-	-	-	2.13	-	0.08
21-100-M8-35-D0-X		3.94	M 8	-	-	-	-	1.38	0.35	-
	21-100-M8-35-D1-X	3.94	M 8	-	-	-	-	1.38	-	0.12
21-100-M10-38-D0-X		3.94	M 10	-	-	-	-	1.50	0.35	-
	21-100-M10-38-D1-X	3.94	M 10	-	-	-	-	1.50	-	0.12
21-100-M12-41-D0-X		3.94	M 12	-	-	-	-	1.61	0.35	-
	21-100-M12-41-D1-X	3.94	M 12	-	-	-	-	1.61	-	0.12
21-100-M16-47-D0-X		3.94	M 16	-	-	-	-	1.85	0.35	-
	21-100-M16-47-D1-X	3.94	M 16	-	-	-	-	1.85	-	0.12
21-100-M20-55-D0-X		3.94	M 20	-	-	-	-	2.17	0.35	-
	21-100-M20-55-D1-X	3.94	M 20	-	-	-	-	2.17	-	0.12
21-120-M20-59-D0-X		4.72	M 20	-	-	-	-	2.32	0.47	-
	21-120-M20-59-D1-X	4.72	M 20	-	-	-	-	2.32	-	0.14

Part Number D0 - Fine turned, without rubber pad	Part Number D1 - Fine turned, with rubber pad inlay, black	d₁	d₂	l₁ Version S / SK	Version T / TK and U / UK	l₂ Version V / VK	l₃ ≈ Version W	l₇ Version X	h₁	h₂

21-80-M8-40-D0-S		3.15	M 8	1.57	-	-	-	-	0.33	-
	21-80-M8-40-D1-S	3.15	M 8	1.57	-	-	-	-	-	0.08
21-80-M8-50-D0-S		3.15	M 8	1.97	-	-	-	-	0.33	-
	21-80-M8-50-D1-S	3.15	M 8	1.97	-	-	-	-	-	0.08
21-80-M8-63-D0-S		3.15	M 8	2.48	-	-	-	-	0.33	-
	21-80-M8-63-D1-S	3.15	M 8	2.48	-	-	-	-	-	0.08
21-80-M10-50-D0-S		3.15	M 10	1.97	-	-	-	-	0.33	-
	21-80-M10-50-D1-S	3.15	M 10	1.97	-	-	-	-	-	0.08
21-80-M10-60-D0-S		3.15	M 10	2.36	-	-	-	-	0.33	-
	21-80-M10-60-D1-S	3.15	M 10	2.36	-	-	-	-	-	0.08
21-80-M10-80-D0-S		3.15	M 10	3.15	-	-	-	-	0.33	-
	21-80-M10-80-D1-S	3.15	M 10	3.15	-	-	-	-	-	0.08
21-80-M10-100-D0-S		3.15	M 10	3.94	-	-	-	-	0.33	-
	21-80-M10-100-D1-S	3.15	M 10	3.94	-	-	-	-	-	0.08
21-80-M12-60-D0-S		3.15	M 12	2.36	-	-	-	-	0.33	-
	21-80-M12-60-D1-S	3.15	M 12	2.36	-	-	-	-	-	0.08
21-80-M12-80-D0-S		3.15	M 12	3.15	-	-	-	-	0.33	-
	21-80-M12-80-D1-S	3.15	M 12	3.15	-	-	-	-	-	0.08
21-80-M12-100-D0-S		3.15	M 12	3.94	-	-	-	-	0.33	-
	21-80-M12-100-D1-S	3.15	M 12	3.94	-	-	-	-	-	0.08
21-80-M12-125-D0-S		3.15	M 12	4.92	-	-	-	-	0.33	-
	21-80-M12-125-D1-S	3.15	M 12	4.92	-	-	-	-	-	0.08
21-100-M8-40-D0-S		3.94	M 8	1.57	-	-	-	-	0.35	-
	21-100-M8-40-D1-S	3.94	M 8	1.57	-	-	-	-	-	0.12
21-100-M8-50-D0-S		3.94	M 8	1.97	-	-	-	-	0.35	-
	21-100-M8-50-D1-S	3.94	M 8	1.97	-	-	-	-	-	0.12
21-100-M8-63-D0-S		3.94	M 8	2.48	-	-	-	-	0.35	-
	21-100-M8-63-D1-S	3.94	M 8	2.48	-	-	-	-	-	0.12
21-100-M10-50-D0-S		3.94	M 10	1.97	-	-	-	-	0.35	-
	21-100-M10-50-D1-S	3.94	M 10	1.97	-	-	-	-	-	0.12
21-100-M10-60-D0-S		3.94	M 10	2.36	-	-	-	-	0.35	-
	21-100-M10-60-D1-S	3.94	M 10	2.36	-	-	-	-	-	0.12
21-100-M10-80-D0-S		3.94	M 10	3.15	-	-	-	-	0.35	-
	21-100-M10-80-D1-S	3.94	M 10	3.15	-	-	-	-	-	0.12
21-100-M10-100-D0-S		3.94	M 10	3.94	-	-	-	-	0.35	-
	21-100-M10-100-D1-S	3.94	M 10	3.94	-	-	-	-	-	0.12
21-100-M12-60-D0-S		3.94	M 12	2.36	-	-	-	-	0.35	-
	21-100-M12-60-D1-S	3.94	M 12	2.36	-	-	-	-	-	0.12
21-100-M12-80-D0-S		3.94	M 12	3.15	-	-	-	-	0.35	-
	21-100-M12-80-D1-S	3.94	M 12	3.15	-	-	-	-	-	0.12
21-100-M12-100-D0-S		3.94	M 12	3.94	-	-	-	-	0.35	-
	21-100-M12-100-D1-S	3.94	M 12	3.94	-	-	-	-	-	0.12
21-100-M12-125-D0-S		3.94	M 12	4.92	-	-	-	-	0.35	-
	21-100-M12-125-D1-S	3.94	M 12	4.92	-	-	-	-	-	0.12

Part Number D0 - Fine turned, without rubber pad	Part Number D1 - Fine turned, with rubber pad inlay, black	d₁	d₂	l₁ Version S / SK	Version T / TK and U / UK	l₂ Version V / VK	l₃ ≈ Version W	l₇ Version X	h₁	h₂

21-80-M8-40-D0-SK		3.15	M 8	1.57	-	-	-	-	0.33	-
	21-80-M8-40-D1-SK	3.15	M 8	1.57	-	-	-	-	-	0.08
21-80-M8-50-D0-SK		3.15	M 8	1.97	-	-	-	-	0.33	-
	21-80-M8-50-D1-SK	3.15	M 8	1.97	-	-	-	-	-	0.08
21-80-M8-63-D0-SK		3.15	M 8	2.48	-	-	-	-	0.33	-
	21-80-M8-63-D1-SK	3.15	M 8	2.48	-	-	-	-	-	0.08
21-80-M10-50-D0-SK		3.15	M 10	1.97	-	-	-	-	0.33	-
	21-80-M10-50-D1-SK	3.15	M 10	1.97	-	-	-	-	-	0.08
21-80-M10-60-D0-SK		3.15	M 10	2.36	-	-	-	-	0.33	-
	21-80-M10-60-D1-SK	3.15	M 10	2.36	-	-	-	-	-	0.08
21-80-M10-80-D0-SK		3.15	M 10	3.15	-	-	-	-	0.33	-
	21-80-M10-80-D1-SK	3.15	M 10	3.15	-	-	-	-	-	0.08
21-80-M10-100-D0-SK		3.15	M 10	3.94	-	-	-	-	0.33	-
	21-80-M10-100-D1-SK	3.15	M 10	3.94	-	-	-	-	-	0.08
21-80-M12-60-D0-SK		3.15	M 12	2.36	-	-	-	-	0.33	-
	21-80-M12-60-D1-SK	3.15	M 12	2.36	-	-	-	-	-	0.08
21-80-M12-80-D0-SK		3.15	M 12	3.15	-	-	-	-	0.33	-
	21-80-M12-80-D1-SK	3.15	M 12	3.15	-	-	-	-	-	0.08
21-80-M12-100-D0-SK		3.15	M 12	3.94	-	-	-	-	0.33	-
	21-80-M12-100-D1-SK	3.15	M 12	3.94	-	-	-	-	-	0.08
21-80-M12-125-D0-SK		3.15	M 12	4.92	-	-	-	-	0.33	-
	21-80-M12-125-D1-SK	3.15	M 12	4.92	-	-	-	-	-	0.08
21-100-M8-40-D0-SK		3.94	M 8	1.57	-	-	-	-	0.35	-
	21-100-M8-40-D1-SK	3.94	M 8	1.57	-	-	-	-	-	0.12
21-100-M8-50-D0-SK		3.94	M 8	1.97	-	-	-	-	0.35	-
	21-100-M8-50-D1-SK	3.94	M 8	1.97	-	-	-	-	-	0.12
21-100-M8-63-D0-SK		3.94	M 8	2.48	-	-	-	-	0.35	-
	21-100-M8-63-D1-SK	3.94	M 8	2.48	-	-	-	-	-	0.12
21-100-M10-50-D0-SK		3.94	M 10	1.97	-	-	-	-	0.35	-
	21-100-M10-50-D1-SK	3.94	M 10	1.97	-	-	-	-	-	0.12
21-100-M10-60-D0-SK		3.94	M 10	2.36	-	-	-	-	0.35	-
	21-100-M10-60-D1-SK	3.94	M 10	2.36	-	-	-	-	-	0.12
21-100-M10-80-D0-SK		3.94	M 10	3.15	-	-	-	-	0.35	-
	21-100-M10-80-D1-SK	3.94	M 10	3.15	-	-	-	-	-	0.12
21-100-M10-100-D0-SK		3.94	M 10	3.94	-	-	-	-	0.35	-
	21-100-M10-100-D1-SK	3.94	M 10	3.94	-	-	-	-	-	0.12
21-100-M12-60-D0-SK		3.94	M 12	2.36	-	-	-	-	0.35	-
	21-100-M12-60-D1-SK	3.94	M 12	2.36	-	-	-	-	-	0.12
21-100-M12-80-D0-SK		3.94	M 12	3.15	-	-	-	-	0.35	-
	21-100-M12-80-D1-SK	3.94	M 12	3.15	-	-	-	-	-	0.12
21-100-M12-100-D0-SK		3.94	M 12	3.94	-	-	-	-	0.35	-
	21-100-M12-100-D1-SK	3.94	M 12	3.94	-	-	-	-	-	0.12
21-100-M12-125-D0-SK		3.94	M 12	4.92	-	-	-	-	0.35	-
	21-100-M12-125-D1-SK	3.94	M 12	4.92	-	-	-	-	-	0.12

Part Number D0 - Fine turned, without rubber pad	Part Number D1 - Fine turned, with rubber pad inlay, black	d₁	d₂	l₁ Version S / SK	Version T / TK and U / UK	l₂ Version V / VK	l₃ ≈ Version W	l₇ Version X	h₁	h₂

21-80-M16-75-D0-T		3.15	M 16	-	2.95	-	-	-	0.33	-
	21-80-M16-75-D1-T	3.15	M 16	-	2.95	-	-	-	-	0.08
21-80-M16-100-D0-T		3.15	M 16	-	3.94	-	-	-	0.33	-
	21-80-M16-100-D1-T	3.15	M 16	-	3.94	-	-	-	-	0.08
21-80-M16-125-D0-T		3.15	M 16	-	4.92	-	-	-	0.33	-
	21-80-M16-125-D1-T	3.15	M 16	-	4.92	-	-	-	-	0.08
21-80-M16-150-D0-T		3.15	M 16	-	5.91	-	-	-	0.33	-
	21-80-M16-150-D1-T	3.15	M 16	-	5.91	-	-	-	-	0.08
21-80-M16-200-D0-T		3.15	M 16	-	7.87	-	-	-	0.33	-
	21-80-M16-200-D1-T	3.15	M 16	-	7.87	-	-	-	-	0.08
21-80-M16-250-D0-T		3.15	M 16	-	9.84	-	-	-	0.33	-
	21-80-M16-250-D1-T	3.15	M 16	-	9.84	-	-	-	-	0.08
21-80-M20-75-D0-T		3.15	M 20	-	2.95	-	-	-	0.33	-
	21-80-M20-75-D1-T	3.15	M 20	-	2.95	-	-	-	-	0.08
21-80-M20-100-D0-T		3.15	M 20	-	3.94	-	-	-	0.33	-
	21-80-M20-100-D1-T	3.15	M 20	-	3.94	-	-	-	-	0.08
21-80-M20-125-D0-T		3.15	M 20	-	4.92	-	-	-	0.33	-
	21-80-M20-125-D1-T	3.15	M 20	-	4.92	-	-	-	-	0.08
21-80-M20-150-D0-T		3.15	M 20	-	5.91	-	-	-	0.33	-
	21-80-M20-150-D1-T	3.15	M 20	-	5.91	-	-	-	-	0.08
21-80-M20-200-D0-T		3.15	M 20	-	7.87	-	-	-	0.33	-
	21-80-M20-200-D1-T	3.15	M 20	-	7.87	-	-	-	-	0.08
21-80-M20-250-D0-T		3.15	M 20	-	9.84	-	-	-	0.33	-
	21-80-M20-250-D1-T	3.15	M 20	-	9.84	-	-	-	-	0.08
21-80-M24-100-D0-T		3.15	M 24	-	3.94	-	-	-	0.33	-
	21-80-M24-100-D1-T	3.15	M 24	-	3.94	-	-	-	-	0.08
21-80-M24-125-D0-T		3.15	M 24	-	4.92	-	-	-	0.33	-
	21-80-M24-125-D1-T	3.15	M 24	-	4.92	-	-	-	-	0.08
21-80-M24-150-D0-T		3.15	M 24	-	5.91	-	-	-	0.33	-
	21-80-M24-150-D1-T	3.15	M 24	-	5.91	-	-	-	-	0.08
21-80-M24-200-D0-T		3.15	M 24	-	7.87	-	-	-	0.33	-
	21-80-M24-200-D1-T	3.15	M 24	-	7.87	-	-	-	-	0.08
21-80-M24-300-D0-T		3.15	M 24	-	11.81	-	-	-	0.33	-
	21-80-M24-300-D1-T	3.15	M 24	-	11.81	-	-	-	-	0.08
21-100-M16-75-D0-T		3.94	M 16	-	2.95	-	-	-	0.35	-
	21-100-M16-75-D1-T	3.94	M 16	-	2.95	-	-	-	-	0.12
21-100-M16-100-D0-T		3.94	M 16	-	3.94	-	-	-	0.35	-
	21-100-M16-100-D1-T	3.94	M 16	-	3.94	-	-	-	-	0.12
21-100-M16-125-D0-T		3.94	M 16	-	4.92	-	-	-	0.35	-
	21-100-M16-125-D1-T	3.94	M 16	-	4.92	-	-	-	-	0.12
21-100-M16-150-D0-T		3.94	M 16	-	5.91	-	-	-	0.35	-
	21-100-M16-150-D1-T	3.94	M 16	-	5.91	-	-	-	-	0.12
21-100-M16-200-D0-T		3.94	M 16	-	7.87	-	-	-	0.35	-
	21-100-M16-200-D1-T	3.94	M 16	-	7.87	-	-	-	-	0.12
21-100-M16-250-D0-T		3.94	M 16	-	9.84	-	-	-	0.35	-
	21-100-M16-250-D1-T	3.94	M 16	-	9.84	-	-	-	-	0.12
21-100-M20-75-D0-T		3.94	M 20	-	2.95	-	-	-	0.35	-
	21-100-M20-75-D1-T	3.94	M 20	-	2.95	-	-	-	-	0.12
21-100-M20-100-D0-T		3.94	M 20	-	3.94	-	-	-	0.35	-
	21-100-M20-100-D1-T	3.94	M 20	-	3.94	-	-	-	-	0.12
21-100-M20-125-D0-T		3.94	M 20	-	4.92	-	-	-	0.35	-
	21-100-M20-125-D1-T	3.94	M 20	-	4.92	-	-	-	-	0.12
21-100-M20-150-D0-T		3.94	M 20	-	5.91	-	-	-	0.35	-
	21-100-M20-150-D1-T	3.94	M 20	-	5.91	-	-	-	-	0.12
21-100-M20-200-D0-T		3.94	M 20	-	7.87	-	-	-	0.35	-
	21-100-M20-200-D1-T	3.94	M 20	-	7.87	-	-	-	-	0.12
21-100-M20-250-D0-T		3.94	M 20	-	9.84	-	-	-	0.35	-
	21-100-M20-250-D1-T	3.94	M 20	-	9.84	-	-	-	-	0.12
21-100-M24-100-D0-T		3.94	M 24	-	3.94	-	-	-	0.35	-
	21-100-M24-100-D1-T	3.94	M 24	-	3.94	-	-	-	-	0.12
21-100-M24-125-D0-T		3.94	M 24	-	4.92	-	-	-	0.35	-
	21-100-M24-125-D1-T	3.94	M 24	-	4.92	-	-	-	-	0.12
21-100-M24-150-D0-T		3.94	M 24	-	5.91	-	-	-	0.35	-
	21-100-M24-150-D1-T	3.94	M 24	-	5.91	-	-	-	-	0.12
21-100-M24-200-D0-T		3.94	M 24	-	7.87	-	-	-	0.35	-
	21-100-M24-200-D1-T	3.94	M 24	-	7.87	-	-	-	-	0.12
21-100-M24-300-D0-T		3.94	M 24	-	11.81	-	-	-	0.35	-
	21-100-M24-300-D1-T	3.94	M 24	-	11.81	-	-	-	-	0.12
21-120-M20-75-D0-T		4.72	M 20	-	2.95	-	-	-	0.47	-
	21-120-M20-75-D1-T	4.72	M 20	-	2.95	-	-	-	-	0.14
21-120-M20-100-D0-T		4.72	M 20	-	3.94	-	-	-	0.47	-
	21-120-M20-100-D1-T	4.72	M 20	-	3.94	-	-	-	-	0.14
21-120-M20-125-D0-T		4.72	M 20	-	4.92	-	-	-	0.47	-
	21-120-M20-125-D1-T	4.72	M 20	-	4.92	-	-	-	-	0.14
21-120-M20-150-D0-T		4.72	M 20	-	5.91	-	-	-	0.47	-
	21-120-M20-150-D1-T	4.72	M 20	-	5.91	-	-	-	-	0.14
21-120-M20-200-D0-T		4.72	M 20	-	7.87	-	-	-	0.47	-
	21-120-M20-200-D1-T	4.72	M 20	-	7.87	-	-	-	-	0.14
21-120-M20-250-D0-T		4.72	M 20	-	9.84	-	-	-	0.47	-
	21-120-M20-250-D1-T	4.72	M 20	-	9.84	-	-	-	-	0.14
21-120-M24-100-D0-T		4.72	M 24	-	3.94	-	-	-	0.47	-
	21-120-M24-100-D1-T	4.72	M 24	-	3.94	-	-	-	-	0.14
21-120-M24-125-D0-T		4.72	M 24	-	4.92	-	-	-	0.47	-
	21-120-M24-125-D1-T	4.72	M 24	-	4.92	-	-	-	-	0.14
21-120-M24-150-D0-T		4.72	M 24	-	5.91	-	-	-	0.47	-
	21-120-M24-150-D1-T	4.72	M 24	-	5.91	-	-	-	-	0.14
21-120-M24-200-D0-T		4.72	M 24	-	7.87	-	-	-	0.47	-
	21-120-M24-200-D1-T	4.72	M 24	-	7.87	-	-	-	-	0.14
21-120-M24-300-D0-T		4.72	M 24	-	11.81	-	-	-	0.47	-
	21-120-M24-300-D1-T	4.72	M 24	-	11.81	-	-	-	-	0.14
21-120-M30-100-D0-T		4.72	M 30	-	3.94	-	-	-	0.47	-
	21-120-M30-100-D1-T	4.72	M 30	-	3.94	-	-	-	-	0.14
21-120-M30-125-D0-T		4.72	M 30	-	4.92	-	-	-	0.47	-
	21-120-M30-125-D1-T	4.72	M 30	-	4.92	-	-	-	-	0.14
21-120-M30-150-D0-T		4.72	M 30	-	5.91	-	-	-	0.47	-
	21-120-M30-150-D1-T	4.72	M 30	-	5.91	-	-	-	-	0.14
21-120-M30-200-D0-T		4.72	M 30	-	7.87	-	-	-	0.47	-
	21-120-M30-200-D1-T	4.72	M 30	-	7.87	-	-	-	-	0.14
21-120-M30-300-D0-T		4.72	M 30	-	11.81	-	-	-	0.47	-
	21-120-M30-300-D1-T	4.72	M 30	-	11.81	-	-	-	-	0.14

Part Number D0 - Fine turned, without rubber pad	Part Number D1 - Fine turned, with rubber pad inlay, black	d₁	d₂	l₁ Version S / SK	Version T / TK and U / UK	l₂ Version V / VK	l₃ ≈ Version W	l₇ Version X	h₁	h₂

21-80-M16-75-D0-TK		3.15	M 16	-	2.95	-	-	-	0.33	-
	21-80-M16-75-D1-TK	3.15	M 16	-	2.95	-	-	-	-	0.08
21-80-M16-100-D0-TK		3.15	M 16	-	3.94	-	-	-	0.33	-
	21-80-M16-100-D1-TK	3.15	M 16	-	3.94	-	-	-	-	0.08
21-80-M16-125-D0-TK		3.15	M 16	-	4.92	-	-	-	0.33	-
	21-80-M16-125-D1-TK	3.15	M 16	-	4.92	-	-	-	-	0.08
21-80-M16-150-D0-TK		3.15	M 16	-	5.91	-	-	-	0.33	-
	21-80-M16-150-D1-TK	3.15	M 16	-	5.91	-	-	-	-	0.08
21-80-M16-200-D0-TK		3.15	M 16	-	7.87	-	-	-	0.33	-
	21-80-M16-200-D1-TK	3.15	M 16	-	7.87	-	-	-	-	0.08
21-80-M16-250-D0-TK		3.15	M 16	-	9.84	-	-	-	0.33	-
	21-80-M16-250-D1-TK	3.15	M 16	-	9.84	-	-	-	-	0.08
21-80-M20-75-D0-TK		3.15	M 20	-	2.95	-	-	-	0.33	-
	21-80-M20-75-D1-TK	3.15	M 20	-	2.95	-	-	-	-	0.08
21-80-M20-100-D0-TK		3.15	M 20	-	3.94	-	-	-	0.33	-
	21-80-M20-100-D1-TK	3.15	M 20	-	3.94	-	-	-	-	0.08
21-80-M20-125-D0-TK		3.15	M 20	-	4.92	-	-	-	0.33	-
	21-80-M20-125-D1-TK	3.15	M 20	-	4.92	-	-	-	-	0.08
21-80-M20-150-D0-TK		3.15	M 20	-	5.91	-	-	-	0.33	-
	21-80-M20-150-D1-TK	3.15	M 20	-	5.91	-	-	-	-	0.08
21-80-M20-200-D0-TK		3.15	M 20	-	7.87	-	-	-	0.33	-
	21-80-M20-200-D1-TK	3.15	M 20	-	7.87	-	-	-	-	0.08
21-80-M20-250-D0-TK		3.15	M 20	-	9.84	-	-	-	0.33	-
	21-80-M20-250-D1-TK	3.15	M 20	-	9.84	-	-	-	-	0.08
21-80-M24-100-D0-TK		3.15	M 24	-	3.94	-	-	-	0.33	-
	21-80-M24-100-D1-TK	3.15	M 24	-	3.94	-	-	-	-	0.08
21-80-M24-125-D0-TK		3.15	M 24	-	4.92	-	-	-	0.33	-
	21-80-M24-125-D1-TK	3.15	M 24	-	4.92	-	-	-	-	0.08
21-80-M24-150-D0-TK		3.15	M 24	-	5.91	-	-	-	0.33	-
	21-80-M24-150-D1-TK	3.15	M 24	-	5.91	-	-	-	-	0.08
21-80-M24-200-D0-TK		3.15	M 24	-	7.87	-	-	-	0.33	-
	21-80-M24-200-D1-TK	3.15	M 24	-	7.87	-	-	-	-	0.08
21-80-M24-300-D0-TK		3.15	M 24	-	11.81	-	-	-	0.33	-
	21-80-M24-300-D1-TK	3.15	M 24	-	11.81	-	-	-	-	0.08
21-100-M16-75-D0-TK		3.94	M 16	-	2.95	-	-	-	0.35	-
	21-100-M16-75-D1-TK	3.94	M 16	-	2.95	-	-	-	-	0.12
21-100-M16-100-D0-TK		3.94	M 16	-	3.94	-	-	-	0.35	-
	21-100-M16-100-D1-TK	3.94	M 16	-	3.94	-	-	-	-	0.12
21-100-M16-125-D0-TK		3.94	M 16	-	4.92	-	-	-	0.35	-
	21-100-M16-125-D1-TK	3.94	M 16	-	4.92	-	-	-	-	0.12
21-100-M16-150-D0-TK		3.94	M 16	-	5.91	-	-	-	0.35	-
	21-100-M16-150-D1-TK	3.94	M 16	-	5.91	-	-	-	-	0.12
21-100-M16-200-D0-TK		3.94	M 16	-	7.87	-	-	-	0.35	-
	21-100-M16-200-D1-TK	3.94	M 16	-	7.87	-	-	-	-	0.12
21-100-M16-250-D0-TK		3.94	M 16	-	9.84	-	-	-	0.35	-
	21-100-M16-250-D1-TK	3.94	M 16	-	9.84	-	-	-	-	0.12
21-100-M20-75-D0-TK		3.94	M 20	-	2.95	-	-	-	0.35	-
	21-100-M20-75-D1-TK	3.94	M 20	-	2.95	-	-	-	-	0.12
21-100-M20-100-D0-TK		3.94	M 20	-	3.94	-	-	-	0.35	-
	21-100-M20-100-D1-TK	3.94	M 20	-	3.94	-	-	-	-	0.12
21-100-M20-125-D0-TK		3.94	M 20	-	4.92	-	-	-	0.35	-
	21-100-M20-125-D1-TK	3.94	M 20	-	4.92	-	-	-	-	0.12
21-100-M20-150-D0-TK		3.94	M 20	-	5.91	-	-	-	0.35	-
	21-100-M20-150-D1-TK	3.94	M 20	-	5.91	-	-	-	-	0.12
21-100-M20-200-D0-TK		3.94	M 20	-	7.87	-	-	-	0.35	-
	21-100-M20-200-D1-TK	3.94	M 20	-	7.87	-	-	-	-	0.12
21-100-M20-250-D0-TK		3.94	M 20	-	9.84	-	-	-	0.35	-
	21-100-M20-250-D1-TK	3.94	M 20	-	9.84	-	-	-	-	0.12
21-100-M24-100-D0-TK		3.94	M 24	-	3.94	-	-	-	0.35	-
	21-100-M24-100-D1-TK	3.94	M 24	-	3.94	-	-	-	-	0.12
21-100-M24-125-D0-TK		3.94	M 24	-	4.92	-	-	-	0.35	-
	21-100-M24-125-D1-TK	3.94	M 24	-	4.92	-	-	-	-	0.12
21-100-M24-150-D0-TK		3.94	M 24	-	5.91	-	-	-	0.35	-
	21-100-M24-150-D1-TK	3.94	M 24	-	5.91	-	-	-	-	0.12
21-100-M24-200-D0-TK		3.94	M 24	-	7.87	-	-	-	0.35	-
	21-100-M24-200-D1-TK	3.94	M 24	-	7.87	-	-	-	-	0.12
21-100-M24-300-D0-TK		3.94	M 24	-	11.81	-	-	-	0.35	-
	21-100-M24-300-D1-TK	3.94	M 24	-	11.81	-	-	-	-	0.12
21-120-M20-75-D0-TK		4.72	M 20	-	2.95	-	-	-	0.47	-
	21-120-M20-75-D1-TK	4.72	M 20	-	2.95	-	-	-	-	0.14
21-120-M20-100-D0-TK		4.72	M 20	-	3.94	-	-	-	0.47	-
	21-120-M20-100-D1-TK	4.72	M 20	-	3.94	-	-	-	-	0.14
21-120-M20-125-D0-TK		4.72	M 20	-	4.92	-	-	-	0.47	-
	21-120-M20-125-D1-TK	4.72	M 20	-	4.92	-	-	-	-	0.14
21-120-M20-150-D0-TK		4.72	M 20	-	5.91	-	-	-	0.47	-
	21-120-M20-150-D1-TK	4.72	M 20	-	5.91	-	-	-	-	0.14
21-120-M20-200-D0-TK		4.72	M 20	-	7.87	-	-	-	0.47	-
	21-120-M20-200-D1-TK	4.72	M 20	-	7.87	-	-	-	-	0.14
21-120-M20-250-D0-TK		4.72	M 20	-	9.84	-	-	-	0.47	-
	21-120-M20-250-D1-TK	4.72	M 20	-	9.84	-	-	-	-	0.14
21-120-M24-100-D0-TK		4.72	M 24	-	3.94	-	-	-	0.47	-
	21-120-M24-100-D1-TK	4.72	M 24	-	3.94	-	-	-	-	0.14
21-120-M24-125-D0-TK		4.72	M 24	-	4.92	-	-	-	0.47	-
	21-120-M24-125-D1-TK	4.72	M 24	-	4.92	-	-	-	-	0.14
21-120-M24-150-D0-TK		4.72	M 24	-	5.91	-	-	-	0.47	-
	21-120-M24-150-D1-TK	4.72	M 24	-	5.91	-	-	-	-	0.14
21-120-M24-200-D0-TK		4.72	M 24	-	7.87	-	-	-	0.47	-
	21-120-M24-200-D1-TK	4.72	M 24	-	7.87	-	-	-	-	0.14
21-120-M24-300-D0-TK		4.72	M 24	-	11.81	-	-	-	0.47	-
	21-120-M24-300-D1-TK	4.72	M 24	-	11.81	-	-	-	-	0.14
21-120-M30-100-D0-TK		4.72	M 30	-	3.94	-	-	-	0.47	-
	21-120-M30-100-D1-TK	4.72	M 30	-	3.94	-	-	-	-	0.14
21-120-M30-125-D0-TK		4.72	M 30	-	4.92	-	-	-	0.47	-
	21-120-M30-125-D1-TK	4.72	M 30	-	4.92	-	-	-	-	0.14
21-120-M30-150-D0-TK		4.72	M 30	-	5.91	-	-	-	0.47	-
	21-120-M30-150-D1-TK	4.72	M 30	-	5.91	-	-	-	-	0.14
21-120-M30-200-D0-TK		4.72	M 30	-	7.87	-	-	-	0.47	-
	21-120-M30-200-D1-TK	4.72	M 30	-	7.87	-	-	-	-	0.14
21-120-M30-300-D0-TK		4.72	M 30	-	11.81	-	-	-	0.47	-
	21-120-M30-300-D1-TK	4.72	M 30	-	11.81	-	-	-	-	0.14

Part Number D0 - Fine turned, without rubber pad	Part Number D1 - Fine turned, with rubber pad inlay, black	d₁	d₂	l₁ Version S / SK	Version T / TK and U / UK	l₂ Version V / VK	l₃ ≈ Version W	l₇ Version X	h₁	h₂

21-80-M16-75-D0-U		3.15	M 16	-	2.95	-	-	-	0.33	-
	21-80-M16-75-D1-U	3.15	M 16	-	2.95	-	-	-	-	0.08
21-80-M16-100-D0-U		3.15	M 16	-	3.94	-	-	-	0.33	-
	21-80-M16-100-D1-U	3.15	M 16	-	3.94	-	-	-	-	0.08
21-80-M16-125-D0-U		3.15	M 16	-	4.92	-	-	-	0.33	-
	21-80-M16-125-D1-U	3.15	M 16	-	4.92	-	-	-	-	0.08
21-80-M16-150-D0-U		3.15	M 16	-	5.91	-	-	-	0.33	-
	21-80-M16-150-D1-U	3.15	M 16	-	5.91	-	-	-	-	0.08
21-80-M16-200-D0-U		3.15	M 16	-	7.87	-	-	-	0.33	-
	21-80-M16-200-D1-U	3.15	M 16	-	7.87	-	-	-	-	0.08
21-80-M16-250-D0-U		3.15	M 16	-	9.84	-	-	-	0.33	-
	21-80-M16-250-D1-U	3.15	M 16	-	9.84	-	-	-	-	0.08
21-80-M20-75-D0-U		3.15	M 20	-	2.95	-	-	-	0.33	-
	21-80-M20-75-D1-U	3.15	M 20	-	2.95	-	-	-	-	0.08
21-80-M20-100-D0-U		3.15	M 20	-	3.94	-	-	-	0.33	-
	21-80-M20-100-D1-U	3.15	M 20	-	3.94	-	-	-	-	0.08
21-80-M20-125-D0-U		3.15	M 20	-	4.92	-	-	-	0.33	-
	21-80-M20-125-D1-U	3.15	M 20	-	4.92	-	-	-	-	0.08
21-80-M20-150-D0-U		3.15	M 20	-	5.91	-	-	-	0.33	-
	21-80-M20-150-D1-U	3.15	M 20	-	5.91	-	-	-	-	0.08
21-80-M20-200-D0-U		3.15	M 20	-	7.87	-	-	-	0.33	-
	21-80-M20-200-D1-U	3.15	M 20	-	7.87	-	-	-	-	0.08
21-80-M20-250-D0-U		3.15	M 20	-	9.84	-	-	-	0.33	-
	21-80-M20-250-D1-U	3.15	M 20	-	9.84	-	-	-	-	0.08
21-80-M24-100-D0-U		3.15	M 24	-	3.94	-	-	-	0.33	-
	21-80-M24-100-D1-U	3.15	M 24	-	3.94	-	-	-	-	0.08
21-80-M24-125-D0-U		3.15	M 24	-	4.92	-	-	-	0.33	-
	21-80-M24-125-D1-U	3.15	M 24	-	4.92	-	-	-	-	0.08
21-80-M24-150-D0-U		3.15	M 24	-	5.91	-	-	-	0.33	-
	21-80-M24-150-D1-U	3.15	M 24	-	5.91	-	-	-	-	0.08
21-80-M24-200-D0-U		3.15	M 24	-	7.87	-	-	-	0.33	-
	21-80-M24-200-D1-U	3.15	M 24	-	7.87	-	-	-	-	0.08
21-80-M24-300-D0-U		3.15	M 24	-	11.81	-	-	-	0.33	-
	21-80-M24-300-D1-U	3.15	M 24	-	11.81	-	-	-	-	0.08
21-100-M16-75-D0-U		3.94	M 16	-	2.95	-	-	-	0.35	-
	21-100-M16-75-D1-U	3.94	M 16	-	2.95	-	-	-	-	0.12
21-100-M16-100-D0-U		3.94	M 16	-	3.94	-	-	-	0.35	-
	21-100-M16-100-D1-U	3.94	M 16	-	3.94	-	-	-	-	0.12
21-100-M16-125-D0-U		3.94	M 16	-	4.92	-	-	-	0.35	-
	21-100-M16-125-D1-U	3.94	M 16	-	4.92	-	-	-	-	0.12
21-100-M16-150-D0-U		3.94	M 16	-	5.91	-	-	-	0.35	-
	21-100-M16-150-D1-U	3.94	M 16	-	5.91	-	-	-	-	0.12
21-100-M16-200-D0-U		3.94	M 16	-	7.87	-	-	-	0.35	-
	21-100-M16-200-D1-U	3.94	M 16	-	7.87	-	-	-	-	0.12
21-100-M16-250-D0-U		3.94	M 16	-	9.84	-	-	-	0.35	-
	21-100-M16-250-D1-U	3.94	M 16	-	9.84	-	-	-	-	0.12
21-100-M20-75-D0-U		3.94	M 20	-	2.95	-	-	-	0.35	-
	21-100-M20-75-D1-U	3.94	M 20	-	2.95	-	-	-	-	0.12
21-100-M20-100-D0-U		3.94	M 20	-	3.94	-	-	-	0.35	-
	21-100-M20-100-D1-U	3.94	M 20	-	3.94	-	-	-	-	0.12
21-100-M20-125-D0-U		3.94	M 20	-	4.92	-	-	-	0.35	-
	21-100-M20-125-D1-U	3.94	M 20	-	4.92	-	-	-	-	0.12
21-100-M20-150-D0-U		3.94	M 20	-	5.91	-	-	-	0.35	-
	21-100-M20-150-D1-U	3.94	M 20	-	5.91	-	-	-	-	0.12
21-100-M20-200-D0-U		3.94	M 20	-	7.87	-	-	-	0.35	-
	21-100-M20-200-D1-U	3.94	M 20	-	7.87	-	-	-	-	0.12
21-100-M20-250-D0-U		3.94	M 20	-	9.84	-	-	-	0.35	-
	21-100-M20-250-D1-U	3.94	M 20	-	9.84	-	-	-	-	0.12
21-100-M24-100-D0-U		3.94	M 24	-	3.94	-	-	-	0.35	-
	21-100-M24-100-D1-U	3.94	M 24	-	3.94	-	-	-	-	0.12
21-100-M24-125-D0-U		3.94	M 24	-	4.92	-	-	-	0.35	-
	21-100-M24-125-D1-U	3.94	M 24	-	4.92	-	-	-	-	0.12
21-100-M24-150-D0-U		3.94	M 24	-	5.91	-	-	-	0.35	-
	21-100-M24-150-D1-U	3.94	M 24	-	5.91	-	-	-	-	0.12
21-100-M24-200-D0-U		3.94	M 24	-	7.87	-	-	-	0.35	-
	21-100-M24-200-D1-U	3.94	M 24	-	7.87	-	-	-	-	0.12
21-100-M24-300-D0-U		3.94	M 24	-	11.81	-	-	-	0.35	-
	21-100-M24-300-D1-U	3.94	M 24	-	11.81	-	-	-	-	0.12
21-120-M20-75-D0-U		4.72	M 20	-	2.95	-	-	-	0.47	-
	21-120-M20-75-D1-U	4.72	M 20	-	2.95	-	-	-	-	0.14
21-120-M20-100-D0-U		4.72	M 20	-	3.94	-	-	-	0.47	-
	21-120-M20-100-D1-U	4.72	M 20	-	3.94	-	-	-	-	0.14
21-120-M20-125-D0-U		4.72	M 20	-	4.92	-	-	-	0.47	-
	21-120-M20-125-D1-U	4.72	M 20	-	4.92	-	-	-	-	0.14
21-120-M20-150-D0-U		4.72	M 20	-	5.91	-	-	-	0.47	-
	21-120-M20-150-D1-U	4.72	M 20	-	5.91	-	-	-	-	0.14
21-120-M20-200-D0-U		4.72	M 20	-	7.87	-	-	-	0.47	-
	21-120-M20-200-D1-U	4.72	M 20	-	7.87	-	-	-	-	0.14
21-120-M20-250-D0-U		4.72	M 20	-	9.84	-	-	-	0.47	-
	21-120-M20-250-D1-U	4.72	M 20	-	9.84	-	-	-	-	0.14
21-120-M24-100-D0-U		4.72	M 24	-	3.94	-	-	-	0.47	-
	21-120-M24-100-D1-U	4.72	M 24	-	3.94	-	-	-	-	0.14
21-120-M24-125-D0-U		4.72	M 24	-	4.92	-	-	-	0.47	-
	21-120-M24-125-D1-U	4.72	M 24	-	4.92	-	-	-	-	0.14
21-120-M24-150-D0-U		4.72	M 24	-	5.91	-	-	-	0.47	-
	21-120-M24-150-D1-U	4.72	M 24	-	5.91	-	-	-	-	0.14
21-120-M24-200-D0-U		4.72	M 24	-	7.87	-	-	-	0.47	-
	21-120-M24-200-D1-U	4.72	M 24	-	7.87	-	-	-	-	0.14
21-120-M24-300-D0-U		4.72	M 24	-	11.81	-	-	-	0.47	-
	21-120-M24-300-D1-U	4.72	M 24	-	11.81	-	-	-	-	0.14
21-120-M30-100-D0-U		4.72	M 30	-	3.94	-	-	-	0.47	-
	21-120-M30-100-D1-U	4.72	M 30	-	3.94	-	-	-	-	0.14
21-120-M30-125-D0-U		4.72	M 30	-	4.92	-	-	-	0.47	-
	21-120-M30-125-D1-U	4.72	M 30	-	4.92	-	-	-	-	0.14
21-120-M30-150-D0-U		4.72	M 30	-	5.91	-	-	-	0.47	-
	21-120-M30-150-D1-U	4.72	M 30	-	5.91	-	-	-	-	0.14
21-120-M30-200-D0-U		4.72	M 30	-	7.87	-	-	-	0.47	-
	21-120-M30-200-D1-U	4.72	M 30	-	7.87	-	-	-	-	0.14
21-120-M30-300-D0-U		4.72	M 30	-	11.81	-	-	-	0.47	-
	21-120-M30-300-D1-U	4.72	M 30	-	11.81	-	-	-	-	0.14

Part Number D0 - Fine turned, without rubber pad	Part Number D1 - Fine turned, with rubber pad inlay, black	d₁	d₂	l₁ Version S / SK	Version T / TK and U / UK	l₂ Version V / VK	l₃ ≈ Version W	l₇ Version X	h₁	h₂

21-80-M16-75-D0-UK		3.15	M 16	-	2.95	-	-	-	0.33	-
	21-80-M16-75-D1-UK	3.15	M 16	-	2.95	-	-	-	-	0.08
21-80-M16-100-D0-UK		3.15	M 16	-	3.94	-	-	-	0.33	-
	21-80-M16-100-D1-UK	3.15	M 16	-	3.94	-	-	-	-	0.08
21-80-M16-125-D0-UK		3.15	M 16	-	4.92	-	-	-	0.33	-
	21-80-M16-125-D1-UK	3.15	M 16	-	4.92	-	-	-	-	0.08
21-80-M16-150-D0-UK		3.15	M 16	-	5.91	-	-	-	0.33	-
	21-80-M16-150-D1-UK	3.15	M 16	-	5.91	-	-	-	-	0.08
21-80-M16-200-D0-UK		3.15	M 16	-	7.87	-	-	-	0.33	-
	21-80-M16-200-D1-UK	3.15	M 16	-	7.87	-	-	-	-	0.08
21-80-M16-250-D0-UK		3.15	M 16	-	9.84	-	-	-	0.33	-
	21-80-M16-250-D1-UK	3.15	M 16	-	9.84	-	-	-	-	0.08
21-80-M20-75-D0-UK		3.15	M 20	-	2.95	-	-	-	0.33	-
	21-80-M20-75-D1-UK	3.15	M 20	-	2.95	-	-	-	-	0.08
21-80-M20-100-D0-UK		3.15	M 20	-	3.94	-	-	-	0.33	-
	21-80-M20-100-D1-UK	3.15	M 20	-	3.94	-	-	-	-	0.08
21-80-M20-125-D0-UK		3.15	M 20	-	4.92	-	-	-	0.33	-
	21-80-M20-125-D1-UK	3.15	M 20	-	4.92	-	-	-	-	0.08
21-80-M20-150-D0-UK		3.15	M 20	-	5.91	-	-	-	0.33	-
	21-80-M20-150-D1-UK	3.15	M 20	-	5.91	-	-	-	-	0.08
21-80-M20-200-D0-UK		3.15	M 20	-	7.87	-	-	-	0.33	-
	21-80-M20-200-D1-UK	3.15	M 20	-	7.87	-	-	-	-	0.08
21-80-M20-250-D0-UK		3.15	M 20	-	9.84	-	-	-	0.33	-
	21-80-M20-250-D1-UK	3.15	M 20	-	9.84	-	-	-	-	0.08
21-80-M24-100-D0-UK		3.15	M 24	-	3.94	-	-	-	0.33	-
	21-80-M24-100-D1-UK	3.15	M 24	-	3.94	-	-	-	-	0.08
21-80-M24-125-D0-UK		3.15	M 24	-	4.92	-	-	-	0.33	-
	21-80-M24-125-D1-UK	3.15	M 24	-	4.92	-	-	-	-	0.08
21-80-M24-150-D0-UK		3.15	M 24	-	5.91	-	-	-	0.33	-
	21-80-M24-150-D1-UK	3.15	M 24	-	5.91	-	-	-	-	0.08
21-80-M24-200-D0-UK		3.15	M 24	-	7.87	-	-	-	0.33	-
	21-80-M24-200-D1-UK	3.15	M 24	-	7.87	-	-	-	-	0.08
21-80-M24-300-D0-UK		3.15	M 24	-	11.81	-	-	-	0.33	-
	21-80-M24-300-D1-UK	3.15	M 24	-	11.81	-	-	-	-	0.08
21-100-M16-75-D0-UK		3.94	M 16	-	2.95	-	-	-	0.35	-
	21-100-M16-75-D1-UK	3.94	M 16	-	2.95	-	-	-	-	0.12
21-100-M16-100-D0-UK		3.94	M 16	-	3.94	-	-	-	0.35	-
	21-100-M16-100-D1-UK	3.94	M 16	-	3.94	-	-	-	-	0.12
21-100-M16-125-D0-UK		3.94	M 16	-	4.92	-	-	-	0.35	-
	21-100-M16-125-D1-UK	3.94	M 16	-	4.92	-	-	-	-	0.12
21-100-M16-150-D0-UK		3.94	M 16	-	5.91	-	-	-	0.35	-
	21-100-M16-150-D1-UK	3.94	M 16	-	5.91	-	-	-	-	0.12
21-100-M16-200-D0-UK		3.94	M 16	-	7.87	-	-	-	0.35	-
	21-100-M16-200-D1-UK	3.94	M 16	-	7.87	-	-	-	-	0.12
21-100-M16-250-D0-UK		3.94	M 16	-	9.84	-	-	-	0.35	-
	21-100-M16-250-D1-UK	3.94	M 16	-	9.84	-	-	-	-	0.12
21-100-M20-75-D0-UK		3.94	M 20	-	2.95	-	-	-	0.35	-
	21-100-M20-75-D1-UK	3.94	M 20	-	2.95	-	-	-	-	0.12
21-100-M20-100-D0-UK		3.94	M 20	-	3.94	-	-	-	0.35	-
	21-100-M20-100-D1-UK	3.94	M 20	-	3.94	-	-	-	-	0.12
21-100-M20-125-D0-UK		3.94	M 20	-	4.92	-	-	-	0.35	-
	21-100-M20-125-D1-UK	3.94	M 20	-	4.92	-	-	-	-	0.12
21-100-M20-150-D0-UK		3.94	M 20	-	5.91	-	-	-	0.35	-
	21-100-M20-150-D1-UK	3.94	M 20	-	5.91	-	-	-	-	0.12
21-100-M20-200-D0-UK		3.94	M 20	-	7.87	-	-	-	0.35	-
	21-100-M20-200-D1-UK	3.94	M 20	-	7.87	-	-	-	-	0.12
21-100-M20-250-D0-UK		3.94	M 20	-	9.84	-	-	-	0.35	-
	21-100-M20-250-D1-UK	3.94	M 20	-	9.84	-	-	-	-	0.12
21-100-M24-100-D0-UK		3.94	M 24	-	3.94	-	-	-	0.35	-
	21-100-M24-100-D1-UK	3.94	M 24	-	3.94	-	-	-	-	0.12
21-100-M24-125-D0-UK		3.94	M 24	-	4.92	-	-	-	0.35	-
	21-100-M24-125-D1-UK	3.94	M 24	-	4.92	-	-	-	-	0.12
21-100-M24-150-D0-UK		3.94	M 24	-	5.91	-	-	-	0.35	-
	21-100-M24-150-D1-UK	3.94	M 24	-	5.91	-	-	-	-	0.12
21-100-M24-200-D0-UK		3.94	M 24	-	7.87	-	-	-	0.35	-
	21-100-M24-200-D1-UK	3.94	M 24	-	7.87	-	-	-	-	0.12
21-100-M24-300-D0-UK		3.94	M 24	-	11.81	-	-	-	0.35	-
	21-100-M24-300-D1-UK	3.94	M 24	-	11.81	-	-	-	-	0.12
21-120-M20-75-D0-UK		4.72	M 20	-	2.95	-	-	-	0.47	-
	21-120-M20-75-D1-UK	4.72	M 20	-	2.95	-	-	-	-	0.14
21-120-M20-100-D0-UK		4.72	M 20	-	3.94	-	-	-	0.47	-
	21-120-M20-100-D1-UK	4.72	M 20	-	3.94	-	-	-	-	0.14
21-120-M20-125-D0-UK		4.72	M 20	-	4.92	-	-	-	0.47	-
	21-120-M20-125-D1-UK	4.72	M 20	-	4.92	-	-	-	-	0.14
21-120-M20-150-D0-UK		4.72	M 20	-	5.91	-	-	-	0.47	-
	21-120-M20-150-D1-UK	4.72	M 20	-	5.91	-	-	-	-	0.14
21-120-M20-200-D0-UK		4.72	M 20	-	7.87	-	-	-	0.47	-
	21-120-M20-200-D1-UK	4.72	M 20	-	7.87	-	-	-	-	0.14
21-120-M20-250-D0-UK		4.72	M 20	-	9.84	-	-	-	0.47	-
	21-120-M20-250-D1-UK	4.72	M 20	-	9.84	-	-	-	-	0.14
21-120-M24-100-D0-UK		4.72	M 24	-	3.94	-	-	-	0.47	-
	21-120-M24-100-D1-UK	4.72	M 24	-	3.94	-	-	-	-	0.14
21-120-M24-125-D0-UK		4.72	M 24	-	4.92	-	-	-	0.47	-
	21-120-M24-125-D1-UK	4.72	M 24	-	4.92	-	-	-	-	0.14
21-120-M24-150-D0-UK		4.72	M 24	-	5.91	-	-	-	0.47	-
	21-120-M24-150-D1-UK	4.72	M 24	-	5.91	-	-	-	-	0.14
21-120-M24-200-D0-UK		4.72	M 24	-	7.87	-	-	-	0.47	-
	21-120-M24-200-D1-UK	4.72	M 24	-	7.87	-	-	-	-	0.14
21-120-M24-300-D0-UK		4.72	M 24	-	11.81	-	-	-	0.47	-
	21-120-M24-300-D1-UK	4.72	M 24	-	11.81	-	-	-	-	0.14
21-120-M30-100-D0-UK		4.72	M 30	-	3.94	-	-	-	0.47	-
	21-120-M30-100-D1-UK	4.72	M 30	-	3.94	-	-	-	-	0.14
21-120-M30-125-D0-UK		4.72	M 30	-	4.92	-	-	-	0.47	-
	21-120-M30-125-D1-UK	4.72	M 30	-	4.92	-	-	-	-	0.14
21-120-M30-150-D0-UK		4.72	M 30	-	5.91	-	-	-	0.47	-
	21-120-M30-150-D1-UK	4.72	M 30	-	5.91	-	-	-	-	0.14
21-120-M30-200-D0-UK		4.72	M 30	-	7.87	-	-	-	0.47	-
	21-120-M30-200-D1-UK	4.72	M 30	-	7.87	-	-	-	-	0.14
21-120-M30-300-D0-UK		4.72	M 30	-	11.81	-	-	-	0.47	-
	21-120-M30-300-D1-UK	4.72	M 30	-	11.81	-	-	-	-	0.14

Part Number D0 - Fine turned, without rubber pad	Part Number D1 - Fine turned, with rubber pad inlay, black	d₁	d₂	l₁ Version S / SK	Version T / TK and U / UK	l₂ Version V / VK	l₃ ≈ Version W	l₇ Version X	h₁	h₂

21-80-M16-75-D0-V		3.15	M 16	-	-	2.95	-	-	0.33	-
	21-80-M16-75-D1-V	3.15	M 16	-	-	2.95	-	-	-	0.08
21-80-M16-100-D0-V		3.15	M 16	-	-	3.94	-	-	0.33	-
	21-80-M16-100-D1-V	3.15	M 16	-	-	3.94	-	-	-	0.08
21-80-M16-125-D0-V		3.15	M 16	-	-	4.92	-	-	0.33	-
	21-80-M16-125-D1-V	3.15	M 16	-	-	4.92	-	-	-	0.08
21-80-M16-150-D0-V		3.15	M 16	-	-	5.91	-	-	0.33	-
	21-80-M16-150-D1-V	3.15	M 16	-	-	5.91	-	-	-	0.08
21-80-M20-100-D0-V		3.15	M 20	-	-	3.94	-	-	0.33	-
	21-80-M20-100-D1-V	3.15	M 20	-	-	3.94	-	-	-	0.08
21-80-M20-125-D0-V		3.15	M 20	-	-	4.92	-	-	0.33	-
	21-80-M20-125-D1-V	3.15	M 20	-	-	4.92	-	-	-	0.08
21-80-M20-150-D0-V		3.15	M 20	-	-	5.91	-	-	0.33	-
	21-80-M20-150-D1-V	3.15	M 20	-	-	5.91	-	-	-	0.08
21-80-M20-200-D0-V		3.15	M 20	-	-	7.87	-	-	0.33	-
	21-80-M20-200-D1-V	3.15	M 20	-	-	7.87	-	-	-	0.08
21-80-M24-100-D0-V		3.15	M 24	-	-	3.94	-	-	0.33	-
	21-80-M24-100-D1-V	3.15	M 24	-	-	3.94	-	-	-	0.08
21-80-M24-150-D0-V		3.15	M 24	-	-	5.91	-	-	0.33	-
	21-80-M24-150-D1-V	3.15	M 24	-	-	5.91	-	-	-	0.08
21-80-M24-200-D0-V		3.15	M 24	-	-	7.87	-	-	0.33	-
	21-80-M24-200-D1-V	3.15	M 24	-	-	7.87	-	-	-	0.08
21-100-M16-75-D0-V		3.94	M 16	-	-	2.95	-	-	0.35	-
	21-100-M16-75-D1-V	3.94	M 16	-	-	2.95	-	-	-	0.12
21-100-M16-100-D0-V		3.94	M 16	-	-	3.94	-	-	0.35	-
	21-100-M16-100-D1-V	3.94	M 16	-	-	3.94	-	-	-	0.12
21-100-M16-125-D0-V		3.94	M 16	-	-	4.92	-	-	0.35	-
	21-100-M16-125-D1-V	3.94	M 16	-	-	4.92	-	-	-	0.12
21-100-M16-150-D0-V		3.94	M 16	-	-	5.91	-	-	0.35	-
	21-100-M16-150-D1-V	3.94	M 16	-	-	5.91	-	-	-	0.12
21-100-M20-100-D0-V		3.94	M 20	-	-	3.94	-	-	0.35	-
	21-100-M20-100-D1-V	3.94	M 20	-	-	3.94	-	-	-	0.12
21-100-M20-125-D0-V		3.94	M 20	-	-	4.92	-	-	0.35	-
	21-100-M20-125-D1-V	3.94	M 20	-	-	4.92	-	-	-	0.12
21-100-M20-150-D0-V		3.94	M 20	-	-	5.91	-	-	0.35	-
	21-100-M20-150-D1-V	3.94	M 20	-	-	5.91	-	-	-	0.12
21-100-M20-200-D0-V		3.94	M 20	-	-	7.87	-	-	0.35	-
	21-100-M20-200-D1-V	3.94	M 20	-	-	7.87	-	-	-	0.12
21-100-M24-100-D0-V		3.94	M 24	-	-	3.94	-	-	0.35	-
	21-100-M24-100-D1-V	3.94	M 24	-	-	3.94	-	-	-	0.12
21-100-M24-150-D0-V		3.94	M 24	-	-	5.91	-	-	0.35	-
	21-100-M24-150-D1-V	3.94	M 24	-	-	5.91	-	-	-	0.12
21-100-M24-200-D0-V		3.94	M 24	-	-	7.87	-	-	0.35	-
	21-100-M24-200-D1-V	3.94	M 24	-	-	7.87	-	-	-	0.12

Part Number D0 - Fine turned, without rubber pad	Part Number D1 - Fine turned, with rubber pad inlay, black	d₁	d₂	l₁ Version S / SK	Version T / TK and U / UK	l₂ Version V / VK	l₃ ≈ Version W	l₇ Version X	h₁	h₂

21-80-M16-75-D0-VK		3.15	M 16	-	-	2.95	-	-	0.33	-
	21-80-M16-75-D1-VK	3.15	M 16	-	-	2.95	-	-	-	0.08
21-80-M16-100-D0-VK		3.15	M 16	-	-	3.94	-	-	0.33	-
	21-80-M16-100-D1-VK	3.15	M 16	-	-	3.94	-	-	-	0.08
21-80-M16-125-D0-VK		3.15	M 16	-	-	4.92	-	-	0.33	-
	21-80-M16-125-D1-VK	3.15	M 16	-	-	4.92	-	-	-	0.08
21-80-M16-150-D0-VK		3.15	M 16	-	-	5.91	-	-	0.33	-
	21-80-M16-150-D1-VK	3.15	M 16	-	-	5.91	-	-	-	0.08
21-80-M20-100-D0-VK		3.15	M 20	-	-	3.94	-	-	0.33	-
	21-80-M20-100-D1-VK	3.15	M 20	-	-	3.94	-	-	-	0.08
21-80-M20-125-D0-VK		3.15	M 20	-	-	4.92	-	-	0.33	-
	21-80-M20-125-D1-VK	3.15	M 20	-	-	4.92	-	-	-	0.08
21-80-M20-150-D0-VK		3.15	M 20	-	-	5.91	-	-	0.33	-
	21-80-M20-150-D1-VK	3.15	M 20	-	-	5.91	-	-	-	0.08
21-80-M20-200-D0-VK		3.15	M 20	-	-	7.87	-	-	0.33	-
	21-80-M20-200-D1-VK	3.15	M 20	-	-	7.87	-	-	-	0.08
21-80-M24-100-D0-VK		3.15	M 24	-	-	3.94	-	-	0.33	-
	21-80-M24-100-D1-VK	3.15	M 24	-	-	3.94	-	-	-	0.08
21-80-M24-150-D0-VK		3.15	M 24	-	-	5.91	-	-	0.33	-
	21-80-M24-150-D1-VK	3.15	M 24	-	-	5.91	-	-	-	0.08
21-80-M24-200-D0-VK		3.15	M 24	-	-	7.87	-	-	0.33	-
	21-80-M24-200-D1-VK	3.15	M 24	-	-	7.87	-	-	-	0.08
21-100-M16-75-D0-VK		3.94	M 16	-	-	2.95	-	-	0.35	-
	21-100-M16-75-D1-VK	3.94	M 16	-	-	2.95	-	-	-	0.12
21-100-M16-100-D0-VK		3.94	M 16	-	-	3.94	-	-	0.35	-
	21-100-M16-100-D1-VK	3.94	M 16	-	-	3.94	-	-	-	0.12
21-100-M16-125-D0-VK		3.94	M 16	-	-	4.92	-	-	0.35	-
	21-100-M16-125-D1-VK	3.94	M 16	-	-	4.92	-	-	-	0.12
21-100-M16-150-D0-VK		3.94	M 16	-	-	5.91	-	-	0.35	-
	21-100-M16-150-D1-VK	3.94	M 16	-	-	5.91	-	-	-	0.12
21-100-M20-100-D0-VK		3.94	M 20	-	-	3.94	-	-	0.35	-
	21-100-M20-100-D1-VK	3.94	M 20	-	-	3.94	-	-	-	0.12
21-100-M20-125-D0-VK		3.94	M 20	-	-	4.92	-	-	0.35	-
	21-100-M20-125-D1-VK	3.94	M 20	-	-	4.92	-	-	-	0.12
21-100-M20-150-D0-VK		3.94	M 20	-	-	5.91	-	-	0.35	-
	21-100-M20-150-D1-VK	3.94	M 20	-	-	5.91	-	-	-	0.12
21-100-M20-200-D0-VK		3.94	M 20	-	-	7.87	-	-	0.35	-
	21-100-M20-200-D1-VK	3.94	M 20	-	-	7.87	-	-	-	0.12
21-100-M24-100-D0-VK		3.94	M 24	-	-	3.94	-	-	0.35	-
	21-100-M24-100-D1-VK	3.94	M 24	-	-	3.94	-	-	-	0.12
21-100-M24-150-D0-VK		3.94	M 24	-	-	5.91	-	-	0.35	-
	21-100-M24-150-D1-VK	3.94	M 24	-	-	5.91	-	-	-	0.12
21-100-M24-200-D0-VK		3.94	M 24	-	-	7.87	-	-	0.35	-
	21-100-M24-200-D1-VK	3.94	M 24	-	-	7.87	-	-	-	0.12

Part Number D0 - Fine turned, without rubber pad	Part Number D1 - Fine turned, with rubber pad inlay, black	d₁	d₂	l₁ Version S / SK	Version T / TK and U / UK	l₂ Version V / VK	l₃ ≈ Version W	l₇ Version X	h₁	h₂

21-80-M16-118-D0-W		3.15	M 16	-	-	-	4.65	-	0.33	-
	21-80-M16-118-D1-W	3.15	M 16	-	-	-	4.65	-	-	0.08
21-80-M16-143-D0-W		3.15	M 16	-	-	-	5.63	-	0.33	-
	21-80-M16-143-D1-W	3.15	M 16	-	-	-	5.63	-	-	0.08
21-80-M16-168-D0-W		3.15	M 16	-	-	-	6.61	-	0.33	-
	21-80-M16-168-D1-W	3.15	M 16	-	-	-	6.61	-	-	0.08
21-80-M16-193-D0-W		3.15	M 16	-	-	-	7.60	-	0.33	-
	21-80-M16-193-D1-W	3.15	M 16	-	-	-	7.60	-	-	0.08
21-80-M20-143-D0-W		3.15	M 20	-	-	-	5.63	-	0.33	-
	21-80-M20-143-D1-W	3.15	M 20	-	-	-	5.63	-	-	0.08
21-80-M20-168-D0-W		3.15	M 20	-	-	-	6.61	-	0.33	-
	21-80-M20-168-D1-W	3.15	M 20	-	-	-	6.61	-	-	0.08
21-80-M20-193-D0-W		3.15	M 20	-	-	-	7.60	-	0.33	-
	21-80-M20-193-D1-W	3.15	M 20	-	-	-	7.60	-	-	0.08
21-80-M20-243-D0-W		3.15	M 20	-	-	-	9.57	-	0.33	-
	21-80-M20-243-D1-W	3.15	M 20	-	-	-	9.57	-	-	0.08
21-80-M24-168-D0-W		3.15	M 24	-	-	-	6.61	-	0.33	-
	21-80-M24-168-D1-W	3.15	M 24	-	-	-	6.61	-	-	0.08
21-80-M24-218-D0-W		3.15	M 24	-	-	-	8.58	-	0.33	-
	21-80-M24-218-D1-W	3.15	M 24	-	-	-	8.58	-	-	0.08
21-80-M24-268-D0-W		3.15	M 24	-	-	-	10.55	-	0.33	-
	21-80-M24-268-D1-W	3.15	M 24	-	-	-	10.55	-	-	0.08
21-100-M16-119-D0-W		3.94	M 16	-	-	-	4.69	-	0.35	-
	21-100-M16-119-D1-W	3.94	M 16	-	-	-	4.69	-	-	0.12
21-100-M16-144-D0-W		3.94	M 16	-	-	-	5.67	-	0.35	-
	21-100-M16-144-D1-W	3.94	M 16	-	-	-	5.67	-	-	0.12
21-100-M16-169-D0-W		3.94	M 16	-	-	-	6.65	-	0.35	-
	21-100-M16-169-D1-W	3.94	M 16	-	-	-	6.65	-	-	0.12
21-100-M16-194-D0-W		3.94	M 16	-	-	-	7.64	-	0.35	-
	21-100-M16-194-D1-W	3.94	M 16	-	-	-	7.64	-	-	0.12
21-100-M20-144-D0-W		3.94	M 20	-	-	-	5.67	-	0.35	-
	21-100-M20-144-D1-W	3.94	M 20	-	-	-	5.67	-	-	0.12
21-100-M20-169-D0-W		3.94	M 20	-	-	-	6.65	-	0.35	-
	21-100-M20-169-D1-W	3.94	M 20	-	-	-	6.65	-	-	0.12
21-100-M20-194-D0-W		3.94	M 20	-	-	-	7.64	-	0.35	-
	21-100-M20-194-D1-W	3.94	M 20	-	-	-	7.64	-	-	0.12
21-100-M20-244-D0-W		3.94	M 20	-	-	-	9.61	-	0.35	-
	21-100-M20-244-D1-W	3.94	M 20	-	-	-	9.61	-	-	0.12
21-100-M24-169-D0-W		3.94	M 24	-	-	-	6.65	-	0.35	-
	21-100-M24-169-D1-W	3.94	M 24	-	-	-	6.65	-	-	0.12
21-100-M24-219-D0-W		3.94	M 24	-	-	-	8.62	-	0.35	-
	21-100-M24-219-D1-W	3.94	M 24	-	-	-	8.62	-	-	0.12
21-100-M24-269-D0-W		3.94	M 24	-	-	-	10.59	-	0.35	-
	21-100-M24-269-D1-W	3.94	M 24	-	-	-	10.59	-	-	0.12

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁	d₂	l₁ Version S / SK				Version T / TK and U / UK						l₂ Version V / VK				l₃ ≈ Version W				l₇ Version X	h₁	h₂

3.15	M 8	1.57	1.97	2.48	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	1.34	0.33	0.08
3.15	M 10	1.97	2.36	3.15	3.94	-	-	-	-	-	-	-	-	-	-	-	-	-	-	1.46	0.33	0.08
3.15	M 12	2.36	3.15	3.94	4.92	-	-	-	-	-	-	-	-	-	-	-	-	-	-	1.57	0.33	0.08
3.15	M 16	-	-	-	-	2.95	3.94	4.92	5.91	7.87	9.84	2.95	3.94	4.92	5.91	4.65	5.63	6.61	7.60	1.81	0.33	0.08
3.15	M 20	-	-	-	-	2.95	3.94	4.92	5.91	7.87	9.84	3.94	4.92	5.91	7.87	5.63	6.61	7.60	9.57	2.13	0.33	0.08
3.15	M 24	-	-	-	-	3.94	4.92	5.91	7.87	11.81	-	3.94	5.91	7.87	-	6.61	8.58	10.55	-	-	0.33	0.08
3.94	M 8	1.57	1.97	2.48	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	1.38	0.35	0.12
3.94	M 10	1.97	2.36	3.15	3.94	-	-	-	-	-	-	-	-	-	-	-	-	-	-	1.50	0.35	0.12
3.94	M 12	2.36	3.15	3.94	4.92	-	-	-	-	-	-	-	-	-	-	-	-	-	-	1.61	0.35	0.12
3.94	M 16	-	-	-	-	2.95	3.94	4.92	5.91	7.87	9.84	2.95	3.94	4.92	5.91	4.69	5.67	6.65	7.64	1.85	0.35	0.12
3.94	M 20	-	-	-	-	2.95	3.94	4.92	5.91	7.87	9.84	3.94	4.92	5.91	7.87	5.67	6.65	7.64	9.61	2.17	0.35	0.12
3.94	M 24	-	-	-	-	3.94	4.92	5.91	7.87	11.81	-	3.94	5.91	7.87	-	6.65	8.62	10.59	-	-	0.35	0.12
4.72	M 20	-	-	-	-	2.95	3.94	4.92	5.91	7.87	9.84	-	-	-	-	-	-	-	-	2.32	0.47	0.14
4.72	M 24	-	-	-	-	3.94	4.92	5.91	7.87	11.81	-	-	-	-	-	-	-	-	-	-	0.47	0.14
4.72	M 30	-	-	-	-	3.94	4.92	5.91	7.87	11.81	-	-	-	-	-	-	-	-	-	-	0.47	0.14

Show / Hide columns

Dimensions in: Inch (change to Metric)

d₁	d₂	d₃	h₃	h₄	h₅	l₄	l₅	l₆	A/F₁	A/F₂	A/F₃	A/F₄	A/F₅	A/F₆	A/F₇	t

3.15	M 8	-	0.77	-	-	-	-	-	0.67	-	-	-	-	-	0.55	0.31
3.15	M 10	-	0.77	-	-	-	-	-	0.67	-	-	-	-	-	0.55	0.39
3.15	M 12	-	0.77	-	-	-	-	-	0.67	-	-	-	-	-	0.67	0.47
3.15	M 16	0.94	-	1.00	0.85	1.77	1.77	1.14	-	0.47	0.31	0.39	0.47	0.79	0.87	0.63
3.15	M 20	1.18	-	1.06	0.91	2.20	2.20	1.42	-	0.59	0.39	0.51	0.63	0.94	1.06	0.79
3.15	M 24	1.38	-	1.20	1.02	2.64	2.64	1.65	-	0.75	0.47	0.67	0.79	1.18	-	-
3.94	M 8	-	0.81	-	-	-	-	-	0.67	-	-	-	-	-	0.55	0.31
3.94	M 10	-	0.81	-	-	-	-	-	0.67	-	-	-	-	-	0.55	0.39
3.94	M 12	-	0.81	-	-	-	-	-	0.67	-	-	-	-	-	0.67	0.47
3.94	M 16	0.94	-	1.04	0.89	1.77	1.77	1.26	-	0.47	0.31	0.39	0.47	0.79	0.87	0.63
3.94	M 20	1.18	-	1.10	0.94	2.20	2.20	1.57	-	0.59	0.39	0.51	0.63	0.94	1.06	0.79
3.94	M 24	1.38	-	1.24	1.06	2.64	2.64	1.89	-	0.75	0.47	0.67	0.79	1.18	-	-
4.72	M 20	-	-	1.26	-	-	-	-	-	0.59	0.39	-	-	-	1.06	0.79
4.72	M 24	-	-	1.40	-	-	-	-	-	0.75	0.47	-	-	-	-	-
4.72	M 30	-	-	1.56	-	-	-	-	-	0.94	0.47	-	-	-	-	-

Build & Price

3D Product Configurator

Selected Part

Part Number

Total US Dollars (net)

$68.72

Call / Email for Delivery Time

Quantity

Please note our quantity discounts (US Dollars).

Min	Max	Price
1	49	$68.72
50	99	$62.99
100	249	$57.27
≥ 250		$51.54

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.714 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351

All Prices are in US Dollars. Taxes Not Included.

CAD Download

Other Data Formats

About CAD Downloads

Save as Favorites

Need Help?

Our service team is available from Monday to Friday between 7:30 AM and 5:00 PM Central Time: 800-877-8351

Special Requests | Contact our sales team

GN 21 Leveling Feet Stainless Steel, Tapped Socket or Threaded Stud Type, with Turned Base, without Mounting Holes


Product Family Stainless Steel

Product description

Information

Specification

Technical drawing

Part Options / Table

Type (Base)

Version (Stud / Socket)

Version (Stud / Socket): X - External hex, tapped socket type

Version (Stud / Socket): S - Without nut, external hex at the bottom

Version (Stud / Socket): SK - With nut, external hex at the bottom

Version (Stud / Socket): T - Without nut, wrench flat at the bottom

Version (Stud / Socket): TK - With nut, wrench flat at the bottom

Version (Stud / Socket): U - Without nut, internal hex at the top, wrench flat at the bottom

Version (Stud / Socket): UK - With nut, internal hex at the top, wrench flat at the bottom

Version (Stud / Socket): V - Without nut, external hex at the top, wrench flat at the bottom

Version (Stud / Socket): VK - With nut, external hex at the top, wrench flat at the bottom

Version (Stud / Socket): W - With adjustable sleeve, covered thread, wrench flat at the bottom
