WN 9100.1 "NY-LEV®" Leveling Mounts Stainless Steel, Plastic Base, Threaded Stud Type, without Mounting Holes

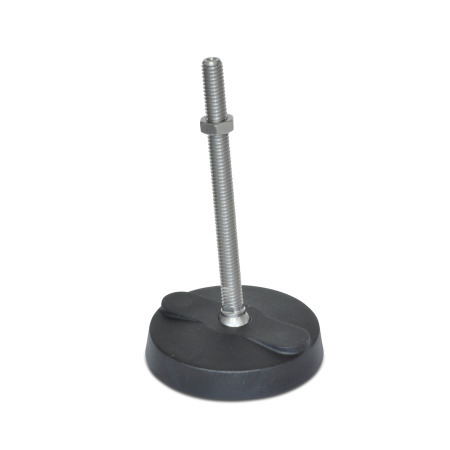

WN 9100.1 Stainless Steel "NY-LEV®" Leveling Mounts, Plastic Base, Threaded Stud Type, without Mounting Holes

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

Standard Sheet WN 9100.1 Print This Page Stainless Steel Characteristics

Product description

Information

Made in the U.S.A., "NY-LEV^®" leveling mounts WN 9100.1 are a quality and economical solution to your leveling and height adjustment needs.

The threaded stud swivels freely 15° in all directions. It is not recommended to move the stud beyond the 15° mark, otherwise the ball end of the stud can pop out of its seat and both stud and base will separate.

A coupling nut is not recommended to use for installation. Use a nut or tapped hole of 1 - 1 1/2 times the thread diameter of the threaded stud.

The optional rubber pad is used for non-skid, noise and vibration reduction. A unique solid squared waffle pattern on the pad provides for a more positive non-skid surface. The rubber pad resists many organic acids, most chemicals, alkalines, salt, water and corrosion.

To insure a proper leveling mount size, divide the machine weight by the number of mounts required. This will equal the pounds or load per mount.

The maximum load ratings for these leveling mounts are based on a calculation of 40% distortion to the rubber pad. This insures the proper application requirements when using the base with the non-skid pad.

Specification

Base
Nylon plastic, glass filled

Threaded stud
Stainless steel AISI 303

Hex nut
Stainless steel AISI 303

Rubber pad
Elastomer, non-skid

RoHS

Technical drawing

WN 9100.1 Stainless Steel "NY-LEV®" Leveling Mounts, Plastic Base, Threaded Stud Type, without Mounting Holes sketch

Hide technical drawing

Part Options / Table

Type

A	Without rubber pad
G	With rubber pad

Show / Hide columns

Dimensions in: Inch (change to Metric)

Part Number	d₁	d₂ Thread	l₁	l₂	l₃	l₄	A/F	Max. load Without rubber pad	With rubber pad

10N3W10	1.97	M 10	3.00	1.56	0.70	0.125	0.314	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
10N3W10N	1.97	M 10	3.00	1.56	0.70	0.125	0.314	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
10N4W10	1.97	M 10	4.00	1.56	0.70	0.125	0.314	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
10N4W10N	1.97	M 10	4.00	1.56	0.70	0.125	0.314	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
10N5W10	1.97	M 10	5.00	1.56	0.70	0.125	0.314	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
10N5W10N	1.97	M 10	5.00	1.56	0.70	0.125	0.314	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
12N3W10	1.97	M 12	3.00	1.56	0.70	0.125	0.393	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
12N3W10N	1.97	M 12	3.00	1.56	0.70	0.125	0.393	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
12N4W10	1.97	M 12	4.00	1.56	0.70	0.125	0.393	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
12N4W10N	1.97	M 12	4.00	1.56	0.70	0.125	0.393	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
12N5W10	1.97	M 12	5.00	1.56	0.70	0.125	0.393	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
12N5W10N	1.97	M 12	5.00	1.56	0.70	0.125	0.393	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
12N6W10	1.97	M 12	6.00	1.60	0.70	0.125	0.393	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
12N6W10N	1.97	M 12	6.00	1.60	0.70	0.125	0.393	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
16N3W10	1.97	M 16	3.00	1.56	0.70	0.125	0.511	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
16N3W10N	1.97	M 16	3.00	1.56	0.70	0.125	0.511	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
16N4W10	1.97	M 16	4.00	1.56	0.70	0.125	0.511	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
16N4W10N	1.97	M 16	4.00	1.56	0.70	0.125	0.511	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
16N5W10	1.97	M 16	5.00	1.56	0.70	0.125	0.511	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
16N5W10N	1.97	M 16	5.00	1.56	0.70	0.125	0.511	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
16N6W10	1.97	M 16	6.00	1.60	0.70	0.125	0.511	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
16N6W10N	1.97	M 16	6.00	1.60	0.70	0.125	0.511	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
16N8W10	1.97	M 16	8.00	1.64	0.70	0.125	0.511	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
16N8W10N	1.97	M 16	8.00	1.64	0.70	0.125	0.511	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
10N3W11	3.15	M 10	3.00	1.56	0.70	0.125	0.314	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
10N3W11N	3.15	M 10	3.00	1.56	0.70	0.125	0.314	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
10N4W11	3.15	M 10	4.00	1.56	0.70	0.125	0.314	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
10N4W11N	3.15	M 10	4.00	1.56	0.70	0.125	0.314	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
10N5W11	3.15	M 10	5.00	1.56	0.70	0.125	0.314	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
10N5W11N	3.15	M 10	5.00	1.56	0.70	0.125	0.314	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
12N3W11	3.15	M 12	3.00	1.56	0.70	0.125	0.393	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
12N3W11N	3.15	M 12	3.00	1.56	0.70	0.125	0.393	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
12N4W11	3.15	M 12	4.00	1.56	0.70	0.125	0.393	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
12N4W11N	3.15	M 12	4.00	1.56	0.70	0.125	0.393	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
12N5W11	3.15	M 12	5.00	1.56	0.70	0.125	0.393	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
12N5W11N	3.15	M 12	5.00	1.56	0.70	0.125	0.393	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
12N6W11	3.15	M 12	6.00	1.60	0.70	0.125	0.393	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
12N6W11N	3.15	M 12	6.00	1.60	0.70	0.125	0.393	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
16N3W11	3.15	M 16	3.00	1.56	0.70	0.125	0.511	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
16N3W11N	3.15	M 16	3.00	1.56	0.70	0.125	0.511	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
16N4W11	3.15	M 16	4.00	1.56	0.70	0.125	0.511	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
16N4W11N	3.15	M 16	4.00	1.56	0.70	0.125	0.511	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
16N5W11	3.15	M 16	5.00	1.56	0.70	0.125	0.511	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
16N5W11N	3.15	M 16	5.00	1.56	0.70	0.125	0.511	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
16N6W11	3.15	M 16	6.00	1.60	0.70	0.125	0.511	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
16N6W11N	3.15	M 16	6.00	1.60	0.70	0.125	0.511	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
16N8W11	3.15	M 16	8.00	1.64	0.70	0.125	0.511	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
16N8W11N	3.15	M 16	8.00	1.64	0.70	0.125	0.511	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
20N3W11	3.15	M 20	3.00	1.56	0.70	0.125	0.628	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
20N3W11N	3.15	M 20	3.00	1.56	0.70	0.125	0.628	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
20N4W11	3.15	M 20	4.00	1.56	0.70	0.125	0.628	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
20N4W11N	3.15	M 20	4.00	1.56	0.70	0.125	0.628	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
20N5W11	3.15	M 20	5.00	1.56	0.70	0.125	0.628	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
20N5W11N	3.15	M 20	5.00	1.56	0.70	0.125	0.628	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
20N6W11	3.15	M 20	6.00	1.60	0.70	0.125	0.628	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
20N6W11N	3.15	M 20	6.00	1.60	0.70	0.125	0.628	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
20N8W11	3.15	M 20	8.00	1.64	0.70	0.125	0.628	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
20N8W11N	3.15	M 20	8.00	1.64	0.70	0.125	0.628	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
16N4W12	4.33	M 16	4.00	1.65	0.95	0.125	0.511	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
16N4W12N	4.33	M 16	4.00	1.65	0.95	0.125	0.511	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
16N5W12	4.33	M 16	5.00	1.66	0.95	0.125	0.511	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
16N5W12N	4.33	M 16	5.00	1.66	0.95	0.125	0.511	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
16N8W12	4.33	M 16	8.00	1.66	0.95	0.125	0.511	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
16N8W12N	4.33	M 16	8.00	1.66	0.95	0.125	0.511	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
16N6W12	4.33	M 16	6.00	1.67	0.95	0.125	0.511	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
16N6W12N	4.33	M 16	6.00	1.67	0.95	0.125	0.511	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
20N4W12	4.33	M 20	4.00	1.65	0.95	0.125	0.669	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
20N4W12N	4.33	M 20	4.00	1.65	0.95	0.125	0.669	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
20N5W12	4.33	M 20	5.00	1.66	0.95	0.125	0.669	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
20N5W12N	4.33	M 20	5.00	1.66	0.95	0.125	0.669	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
20N8W12	4.33	M 20	8.00	1.66	0.95	0.125	0.669	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
20N8W12N	4.33	M 20	8.00	1.66	0.95	0.125	0.669	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
20N6W12	4.33	M 20	6.00	1.67	0.95	0.125	0.669	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
20N6W12N	4.33	M 20	6.00	1.67	0.95	0.125	0.669	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
24N5W12	4.33	M 24	5.00	1.66	0.95	0.125	0.750	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
24N5W12N	4.33	M 24	5.00	1.66	0.95	0.125	0.750	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
24N8W12	4.33	M 24	8.00	1.66	0.95	0.125	0.750	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
24N8W12N	4.33	M 24	8.00	1.66	0.95	0.125	0.750	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
24N6W12	4.33	M 24	6.00	1.67	0.95	0.125	0.750	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
24N6W12N	4.33	M 24	6.00	1.67	0.95	0.125	0.750	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
24N10W12	4.33	M 24	10.00	1.82	0.95	0.125	0.750	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
24N10W12N	4.33	M 24	10.00	1.82	0.95	0.125	0.750	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
6T3W10	1.97	3/8 x 16	3.00	1.38	0.70	0.125	0.313	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
6T3W10N	1.97	3/8 x 16	3.00	1.38	0.70	0.125	0.313	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
6T4W10	1.97	3/8 x 16	4.00	1.38	0.70	0.125	0.313	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
6T4W10N	1.97	3/8 x 16	4.00	1.38	0.70	0.125	0.313	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
6T5W10	1.97	3/8 x 16	5.00	1.38	0.70	0.125	0.313	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
6T5W10N	1.97	3/8 x 16	5.00	1.38	0.70	0.125	0.313	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
8T3W10	1.97	1/2 x 13	3.00	1.38	0.70	0.125	0.438	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
8T3W10N	1.97	1/2 x 13	3.00	1.38	0.70	0.125	0.438	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
8T4W10	1.97	1/2 x 13	4.00	1.38	0.70	0.125	0.438	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
8T4W10N	1.97	1/2 x 13	4.00	1.38	0.70	0.125	0.438	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
8T5W10	1.97	1/2 x 13	5.00	1.38	0.70	0.125	0.438	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
8T5W10N	1.97	1/2 x 13	5.00	1.38	0.70	0.125	0.438	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
8T6W10	1.97	1/2 x 13	6.00	1.38	0.70	0.125	0.438	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
8T6W10N	1.97	1/2 x 13	6.00	1.38	0.70	0.125	0.438	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
10T3W10	1.97	5/8 x 11	3.00	1.38	0.70	0.125	0.500	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
10T3W10N	1.97	5/8 x 11	3.00	1.38	0.70	0.125	0.500	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
10T4W10	1.97	5/8 x 11	4.00	1.38	0.70	0.125	0.500	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
10T4W10N	1.97	5/8 x 11	4.00	1.38	0.70	0.125	0.500	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
10T5W10	1.97	5/8 x 11	5.00	1.38	0.70	0.125	0.500	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
10T5W10N	1.97	5/8 x 11	5.00	1.38	0.70	0.125	0.500	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
10T6W10	1.97	5/8 x 11	6.00	1.38	0.70	0.125	0.500	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
10T6W10N	1.97	5/8 x 11	6.00	1.38	0.70	0.125	0.500	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
6T3W11	3.15	3/8 x 16	3.00	1.38	0.70	0.125	0.313	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
6T3W11N	3.15	3/8 x 16	3.00	1.38	0.70	0.125	0.313	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
6T4W11	3.15	3/8 x 16	4.00	1.38	0.70	0.125	0.313	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
6T4W11N	3.15	3/8 x 16	4.00	1.38	0.70	0.125	0.313	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
6T5W11	3.15	3/8 x 16	5.00	1.38	0.70	0.125	0.313	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
6T5W11N	3.15	3/8 x 16	5.00	1.38	0.70	0.125	0.313	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
8T3W11	3.15	1/2 x 13	3.00	1.38	0.70	0.125	0.438	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
8T3W11N	3.15	1/2 x 13	3.00	1.38	0.70	0.125	0.438	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
8T4W11	3.15	1/2 x 13	4.00	1.38	0.70	0.125	0.438	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
8T4W11N	3.15	1/2 x 13	4.00	1.38	0.70	0.125	0.438	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
8T5W11	3.15	1/2 x 13	5.00	1.38	0.70	0.125	0.438	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
8T5W11N	3.15	1/2 x 13	5.00	1.38	0.70	0.125	0.438	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
8T6W11	3.15	1/2 x 13	6.00	1.38	0.70	0.125	0.438	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
8T6W11N	3.15	1/2 x 13	6.00	1.38	0.70	0.125	0.438	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
10T3W11	3.15	5/8 x 11	3.00	1.38	0.70	0.125	0.500	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
10T3W11N	3.15	5/8 x 11	3.00	1.38	0.70	0.125	0.500	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
10T4W11	3.15	5/8 x 11	4.00	1.38	0.70	0.125	0.500	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
10T4W11N	3.15	5/8 x 11	4.00	1.38	0.70	0.125	0.500	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
10T5W11	3.15	5/8 x 11	5.00	1.38	0.70	0.125	0.500	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
10T5W11N	3.15	5/8 x 11	5.00	1.38	0.70	0.125	0.500	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
10T6W11	3.15	5/8 x 11	6.00	1.38	0.70	0.125	0.500	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
10T6W11N	3.15	5/8 x 11	6.00	1.38	0.70	0.125	0.500	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
11T3W11	3.15	3/4 x 10	3.00	1.38	0.70	0.125	0.625	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
11T3W11N	3.15	3/4 x 10	3.00	1.38	0.70	0.125	0.625	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
11T4W11	3.15	3/4 x 10	4.00	1.38	0.70	0.125	0.625	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
11T4W11N	3.15	3/4 x 10	4.00	1.38	0.70	0.125	0.625	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
11T5W11	3.15	3/4 x 10	5.00	1.38	0.70	0.125	0.625	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
11T5W11N	3.15	3/4 x 10	5.00	1.38	0.70	0.125	0.625	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
11T6W11	3.15	3/4 x 10	6.00	1.38	0.70	0.125	0.625	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
11T6W11N	3.15	3/4 x 10	6.00	1.38	0.70	0.125	0.625	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
11T8W11	3.15	3/4 x 10	8.00	1.38	0.70	0.125	0.625	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
11T8W11N	3.15	3/4 x 10	8.00	1.38	0.70	0.125	0.625	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
10T4W12	4.33	5/8 x 11	4.00	1.66	0.95	0.125	0.500	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
10T4W12N	4.33	5/8 x 11	4.00	1.66	0.95	0.125	0.500	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
10T5W12	4.33	5/8 x 11	5.00	1.66	0.95	0.125	0.500	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
10T5W12N	4.33	5/8 x 11	5.00	1.66	0.95	0.125	0.500	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
10T6W12	4.33	5/8 x 11	6.00	1.66	0.95	0.125	0.500	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
10T6W12N	4.33	5/8 x 11	6.00	1.66	0.95	0.125	0.500	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
11T4W12	4.33	3/4 x 10	4.00	1.66	0.95	0.125	0.625	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
11T4W12N	4.33	3/4 x 10	4.00	1.66	0.95	0.125	0.625	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
11T5W12	4.33	3/4 x 10	5.00	1.66	0.95	0.125	0.625	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
11T5W12N	4.33	3/4 x 10	5.00	1.66	0.95	0.125	0.625	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
11T6W12	4.33	3/4 x 10	6.00	1.66	0.95	0.125	0.625	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
11T6W12N	4.33	3/4 x 10	6.00	1.66	0.95	0.125	0.625	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
11T8W12	4.33	3/4 x 10	8.00	1.66	0.95	0.125	0.625	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
11T8W12N	4.33	3/4 x 10	8.00	1.66	0.95	0.125	0.625	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
12T5W12	4.33	1 x 8	5.00	1.66	0.95	0.125	0.750	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
12T5W12N	4.33	1 x 8	5.00	1.66	0.95	0.125	0.750	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
12T6W12	4.33	1 x 8	6.00	1.66	0.95	0.125	0.750	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
12T6W12N	4.33	1 x 8	6.00	1.66	0.95	0.125	0.750	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
12T8W12	4.33	1 x 8	8.00	1.66	0.95	0.125	0.750	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
12T8W12N	4.33	1 x 8	8.00	1.66	0.95	0.125	0.750	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
12T10W12	4.33	1 x 8	10.00	1.66	0.95	0.125	0.750	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
12T10W12N	4.33	1 x 8	10.00	1.66	0.95	0.125	0.750	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)

Show / Hide columns

Inch

Dimensions in: Inch (change to Metric)

d₁	d₂ Thread	l₁					l₂	l₃	l₄	A/F	Max. load Without rubber pad	With rubber pad

1.97	3/8 x 16	3.00	4.00	5.00	-	-	1.38	0.70	0.125	0.313	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
1.97	1/2 x 13	3.00	4.00	5.00	6.00	-	1.38	0.70	0.125	0.438	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
1.97	5/8 x 11	3.00	4.00	5.00	6.00	-	1.38	0.70	0.125	0.500	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
3.15	3/8 x 16	3.00	4.00	5.00	-	-	1.38	0.70	0.125	0.313	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
3.15	1/2 x 13	3.00	4.00	5.00	6.00	-	1.38	0.70	0.125	0.438	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
3.15	5/8 x 11	3.00	4.00	5.00	6.00	-	1.38	0.70	0.125	0.500	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
3.15	3/4 x 10	3.00	4.00	5.00	6.00	8.00	1.38	0.70	0.125	0.625	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
4.33	5/8 x 11	4.00	5.00	6.00	-	-	1.66	0.95	0.125	0.500	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
4.33	3/4 x 10	4.00	5.00	6.00	8.00	-	1.66	0.95	0.125	0.625	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
4.33	1 x 8	5.00	6.00	8.00	10.00	-	1.66	0.95	0.125	0.750	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁	d₂ Thread	l₁			l₂	l₃	l₄	A/F	Max. load Without rubber pad	With rubber pad

1.97	M 10	3.00	4.00	5.00	1.56	0.70	0.125	0.314	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
1.97	M 12	3.00	4.00	5.00	1.56	0.70	0.125	0.393	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
1.97	M 12	6.00	-	-	1.60	0.70	0.125	0.393	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
1.97	M 16	3.00	4.00	5.00	1.56	0.70	0.125	0.511	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
1.97	M 16	6.00	-	-	1.60	0.70	0.125	0.511	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
1.97	M 16	8.00	-	-	1.64	0.70	0.125	0.511	4000 lbf (17792.89 N)	800 lbf (3558.58 N)
3.15	M 10	3.00	4.00	5.00	1.56	0.70	0.125	0.314	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
3.15	M 12	3.00	4.00	5.00	1.56	0.70	0.125	0.393	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
3.15	M 12	6.00	-	-	1.60	0.70	0.125	0.393	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
3.15	M 16	3.00	4.00	5.00	1.56	0.70	0.125	0.511	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
3.15	M 16	6.00	-	-	1.60	0.70	0.125	0.511	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
3.15	M 16	8.00	-	-	1.64	0.70	0.125	0.511	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
3.15	M 20	3.00	4.00	5.00	1.56	0.70	0.125	0.628	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
3.15	M 20	6.00	-	-	1.60	0.70	0.125	0.628	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
3.15	M 20	8.00	-	-	1.64	0.70	0.125	0.628	5000 lbf (22241.11 N)	1800 lbf (8006.8 N)
4.33	M 16	4.00	-	-	1.65	0.95	0.125	0.511	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
4.33	M 16	5.00	8.00	-	1.66	0.95	0.125	0.511	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
4.33	M 16	6.00	-	-	1.67	0.95	0.125	0.511	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
4.33	M 20	4.00	-	-	1.65	0.95	0.125	0.669	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
4.33	M 20	5.00	8.00	-	1.66	0.95	0.125	0.669	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
4.33	M 20	6.00	-	-	1.67	0.95	0.125	0.669	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
4.33	M 24	5.00	8.00	-	1.66	0.95	0.125	0.750	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
4.33	M 24	6.00	-	-	1.67	0.95	0.125	0.750	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
4.33	M 24	10.00	-	-	1.82	0.95	0.125	0.750	7500 lbf (33361.66 N)	2700 lbf (12010.2 N)
