GN 452 Vibration / Shock Absorption Mounts Rubber, Cylindrical Type, with Stainless Steel Components

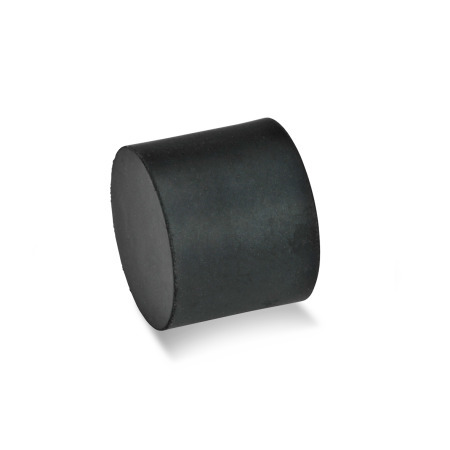

Vibration / Shock Absorption Mounts GN 452: Rubber, Cylindrical Type, with Stainless Steel Components
Type: E - With tapped hole
Stainless-Steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products
Overview of Types Vibration Damping Elements / Vibration Isolation Mounts / Rubber Bumpers Technical Instructions Vibration Isolation Mounts / Rubber Bumpers Resilience Chracteristics Plastic Characteristics Stainless Steel Characteristics

Product description

Vibration / shock absorption mounts GN 452 are used as end stops for linear movements or as support elements for equipment.

They absorb impact energy during collisions, prevent damage due to heavy vibrations and minimize rebound. They also reduce noise and harmful vibrations.

Specification

Rubber
Natural rubber (NR), black

  • Vulcanized to the cover plates
  • Operating temperature
    -40 °F to +176 °F (-40 °C to +80 °C)
  • Hardness Shore A ±5
    • Medium55
    • Hard70*

Cover plates / Tapped insert / Threaded stud
Stainless steel AISI 304

RoHS

On request

  • Gray color rubber
  • Versions with Shore hardness 40
GN 452 Rubber Vibration / Shock Absorption Mounts, Cylindrical Type, with Stainless Steel Components sketch
Hide technical drawing
GN 452 Rubber Vibration / Shock Absorption Mounts, Cylindrical Type, with Stainless Steel Components sketch

Part Options / Table

Type

EWith tapped hole
SWith threaded stud
Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)
d1h
Type E
Type S		d2Length lst
0.310.310.51----0.310.51-----M 30.240.040.12
0.390.390.59----0.390.590.79----M 40.390.050.16
0.590.590.79----0.390.590.791.18---M 40.390.060.16
0.790.590.790.981.18--0.310.390.590.790.981.18-M 60.710.080.24
0.980.590.790.981.18--0.590.790.981.18---M 60.710.080.24
1.180.590.791.181.57--0.590.790.981.181.57--M 80.790.080.31
1.570.791.181.571.97--0.790.981.181.501.57--M 80.910.080.31
1.570.79-----0.790.981.381.571.77--M 100.910.080.39
1.970.791.181.381.571.771.970.790.981.181.381.571.771.97M 101.100.080.31
2.361.181.571.97---0.790.981.421.571.772.36-M 101.100.080.31
2.761.181.571.772.17--1.181.381.571.972.172.76-M 101.100.120.31
2.950.981.181.571.972.17-0.981.571.97----M 121.460.120.43
3.15------1.181.573.15----M 141.460.12-
3.941.571.972.172.36--1.571.972.36----M 161.610.120.55
4.922.172.95----2.172.95-----M 161.610.120.55
*Size not available from stock with Shore hardness 70; require minimum order quantity

Build & Price
Outer diameter d1
Height h (Type E)
Height h (Type S)
Thread d2
Type


Hardness


Outer diameter d1
Height h (Type E)
Height h (Type S)
Thread d2
Type


Hardness


Technical Instructions
f59a341a-6f8d-44f7-a416-38eb26fd88ff

Buffers and rubber buffers are best at absorbing compressive forces. Tensile, shearing, flexural and torsional loads can be absorbed to a limited extent but negatively impact the service life. The information on load capacity in the standard sheet or technical section contains non-binding guide values. Exceeding these values can also lead to reduced service life or immediate failure of the part.

The examples show how a design can be modified to turn unfavorable load situations into favorable arrangements with compressive load.

The service life of elastomer elements can be decreased by environmental conditions, such as UV radiation, weathering, hydrocarbons and chemicals, as well as by aging. Positioning with appropriate protection will extend the service life.

Construction Examples

Unfavorable

Favorable
6ecd5af9-5685-4032-8177-f30409240f71 bc2813b2-50ab-43c8-8d8a-d0da38016199
2da6de17-7f53-4871-9a11-f9da6716a45b c432a895-d14c-4d00-b726-a700e0244629

Selected Part

Total (net)
US$2.69
In Stock: 42
In Stock
Create Project List
Save as Favorites
Recommend a product
Please note our quantity discounts (US Dollars).
MinMaxPrice
149US$2.69
5099US$2.47
100249US$2.25
≥ 250US$2.02
Prop 65: Not compliant
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
RoHS: Compliant
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 0.002 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
