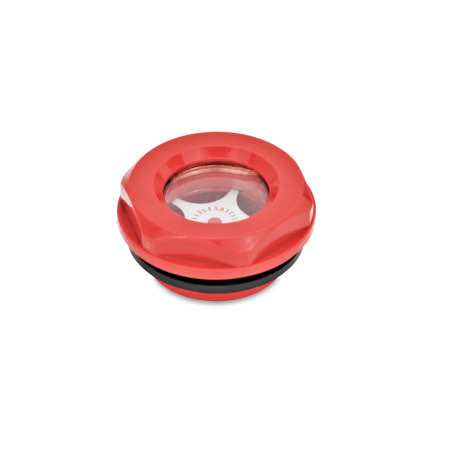

EN 543.2 Fluid Sight Glasses Plastic

Original design
code: HGFT.

Type: A - With reflector
Color: RT - Red, shiny finish

Plastic Characteristics

Product description

The sight glass of fluid sight glasses EN 543.2 is molded in the body during the injection process and is therefore absolutely leak tight.

The seal is embedded in a radial recess, and thus cannot be squeezed out during tightening.

The red version indicates a "control point".

Assembly note:
For wall thicknesses below 0.16 in (4 mm), use thin hex nuts GN 7430.

Specification

Body
Plastic
Technopolymer (Polyamide PA)
- Temperature resistant up to 212 °F (100 °C)
- Pressure resistant up to 3 bar

Sight glass
Plastic
Crystal clear Polyamide PA-T

Seal
Rubber NBR (Perbunan^®)

Reflector
Aluminum
Anodized finish, natural color

RoHS

Accessory

Thin Hex Nuts GN 7430
Weld Bushings GN 7490 (Steel)

EN 543.2 Plastic Fluid Sight Glasses sketch

Hide technical drawing

Part Options / Table

Type

A	With reflector
B	Without reflector

Part Number	d₁	d₂	d₃	l₁	l₂	s	Recommended tightening torque in Nm

543.2-11-G3/8-A-SW	0.43	G 3/8	0.94	0.31	0.28	0.87	4 ... 8
543.2-11-G3/8-B-SW	0.43	G 3/8	0.94	0.31	0.28	0.87	4 ... 8
543.2-11-G3/8-A-RT	0.43	G 3/8	0.94	0.31	0.28	0.87	4 ... 8
543.2-11-G3/8-B-RT	0.43	G 3/8	0.94	0.31	0.28	0.87	4 ... 8
543.2-15-G1/2-A-SW	0.59	G 1/2	1.10	0.39	0.33	0.94	6 ... 8
543.2-15-G1/2-B-SW	0.59	G 1/2	1.10	0.39	0.33	0.94	6 ... 8
543.2-15-G1/2-A-RT	0.59	G 1/2	1.10	0.39	0.33	0.94	6 ... 8
543.2-15-G1/2-B-RT	0.59	G 1/2	1.10	0.39	0.33	0.94	6 ... 8
543.2-18-G3/4-A-SW	0.71	G 3/4	1.38	0.39	0.33	1.26	8 ... 10
543.2-18-G3/4-B-SW	0.71	G 3/4	1.38	0.39	0.33	1.26	8 ... 10
543.2-18-G3/4-A-RT	0.71	G 3/4	1.38	0.39	0.33	1.26	8 ... 10
543.2-18-G3/4-B-RT	0.71	G 3/4	1.38	0.39	0.33	1.26	8 ... 10
543.2-23-G1-A-SW	0.91	G 1	1.69	0.43	0.37	1.50	10 ... 12
543.2-23-G1-B-SW	0.91	G 1	1.69	0.43	0.37	1.50	10 ... 12
543.2-23-G1-A-RT	0.91	G 1	1.69	0.43	0.37	1.50	10 ... 12
543.2-23-G1-B-RT	0.91	G 1	1.69	0.43	0.37	1.50	10 ... 12
543.2-30-G11/4-A-SW	1.18	G 1 1/4	1.97	0.43	0.35	1.81	12 ... 15
543.2-30-G11/4-B-SW	1.18	G 1 1/4	1.97	0.43	0.35	1.81	12 ... 15
543.2-30-G11/4-A-RT	1.18	G 1 1/4	1.97	0.43	0.35	1.81	12 ... 15
543.2-30-G11/4-B-RT	1.18	G 1 1/4	1.97	0.43	0.35	1.81	12 ... 15
543.2-40-G2-A-SW	1.57	G 2	2.68	0.47	0.43	2.36	12 ... 15
543.2-40-G2-B-SW	1.57	G 2	2.68	0.47	0.43	2.36	12 ... 15
543.2-40-G2-A-RT	1.57	G 2	2.68	0.47	0.43	2.36	12 ... 15
543.2-40-G2-B-RT	1.57	G 2	2.68	0.47	0.43	2.36	12 ... 15

Show / Hide columns

Inch

Dimensions in: Inch (change to Metric)

d₁	d₂	d₃	l₁	l₂	s	Recommended tightening torque in Nm

0.59*	1/2 NPT	1.10	0.39	0.33	0.94	6 ... 8
0.71*	3/4 NPT	1.38	0.39	0.33	1.26	8 ... 10
0.91*	1 NPT	1.69	0.43	0.37	1.50	10 ... 12

* Only available in black with reflector

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁	d₂	d₃	l₁	l₂	s	Recommended tightening torque in Nm

0.43	G 3/8	0.94	0.31	0.28	0.87	4 ... 8
0.59	G 1/2	1.10	0.39	0.33	0.94	6 ... 8
0.71	G 3/4	1.38	0.39	0.33	1.26	8 ... 10
0.91	G 1	1.69	0.43	0.37	1.50	10 ... 12
1.18	G 1 1/4	1.97	0.43	0.35	1.81	12 ... 15
1.57	G 2	2.68	0.47	0.43	2.36	12 ... 15

* Only available in black with reflector

Build & Price

Assembly note

For wall thicknesses below 0.16 in (4 mm), use GN 7430 thin hex nuts.

Selected Part

Part Number

Total (net)

US$6.72

Call / Email for Delivery Time

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (US Dollars).

Min	Max	Price
1	6	US$6.72
7	99	US$6.47
100	249	US$6.11
≥ 250		US$5.49

Prop 65: -

Please contact our Sales Department for more information.

RoHS: -

No details on RoHS compatibility are available at this time. Please contact our Sales Department for more information.

Weight: 0.008 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
