EN 630 Technopolymer Plastic Ergostyle® Off-Set Enclosed Safety "U" Handles, with Counterbored Through Holes


ELESA original design
code: ESP.

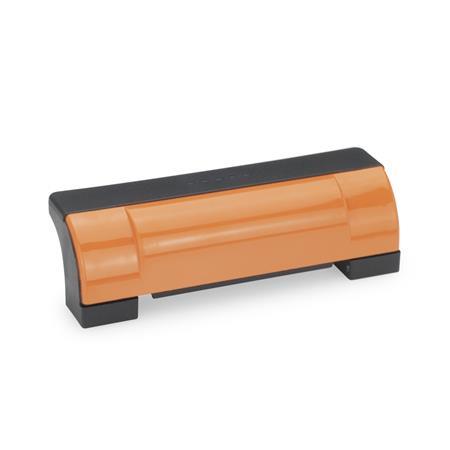

Color of the cover: DOR - Orange, RAL 2004, shiny finish

EN 630 Technopolymer Plastic Ergostyle® Off-Set Enclosed Safety "U" Handles, with Counterbored Through Holes Color of the cover: DBL - Blue, RAL 5024, shiny finish

EN 630 Technopolymer Plastic Ergostyle® Off-Set Enclosed Safety "U" Handles, with Counterbored Through Holes Color of the cover: DGB - Yellow, RAL 1021, shiny finish

EN 630 Technopolymer Plastic Ergostyle® Off-Set Enclosed Safety "U" Handles, with Counterbored Through Holes Color of the cover: DGR - Gray, RAL 7035, shiny finish

EN 630 Technopolymer Plastic Ergostyle® Off-Set Enclosed Safety "U" Handles, with Counterbored Through Holes Color of the cover: DRT - Red, RAL 3000, shiny finish

EN 630 Technopolymer Plastic Ergostyle® Off-Set Enclosed Safety "U" Handles, with Counterbored Through Holes Color of the cover: DSG - Black-gray, RAL 7021, shiny finish

Product Family Ergostyle

Ergostyle standard parts combine functional and ergonomic operation with attractive appearance. Numerous design awards are proof of the high quality claim. The hallmark of Ergostyle products are five small dots.

functional, ergonomic design
ultimate design quality (numerous design awards)

Show all Ergostyle products

Accessories for profile systems

Standard elements in this product family are compatible with the most common aluminium profile systems. Using matching assembly sets, the Ganter standard elements are easily and cost-effectively connected with the profiles without the time-consuming compiling of individual parts in the order.

Show all compatible products

Standard Sheet EN 630 Print this page Product Range Ergostyle® Strength Values Plastic Characteristics

Product description

Information

When using guards on machines and automation systems, which include double hinged doors, the EN 630 Ergostyle^® off-set "U" handles completely enclosed are a safety element for operator fingers while the doors are being used. Use of a colored safety cover makes identification easier.

Resistant to solvents, oils, grease and other chemical agents.

The cover is included but supplied unassembled.

Specification

Plastic
Technopolymer (Polyamide PA)

Glass fiber reinforced
Temperature resistant up to 230 °F (110 °C)
Black-gray, similar to RAL 7021, matte finish

Color of the cover (glossy finish):
Black-gray, RAL 7021, shiny finishDSG DSG

Orange, RAL 2004, shiny finishDOR DOR

Gray, RAL 7035, shiny finishDGR DGR

Yellow, RAL 1021, shiny finishDGB DGB

Blue, RAL 5024, shiny finishDBL DBL

Red, RAL 3000, shiny finishDRT DRT

RoHS compliant

Part Number	l₁	l₂ ±0.02	l₃	b₁	b₂	d	h₁	h₂	h₃	h₄	t

35W94BGA/C1	4.49	3.68	2.91	1.38	0.75	0.26	1.30	0.28	0.43	0.35	0.20
35W94BGA/C2	4.49	3.68	2.91	1.38	0.75	0.26	1.30	0.28	0.43	0.35	0.20
35W94BGA/C3	4.49	3.68	2.91	1.38	0.75	0.26	1.30	0.28	0.43	0.35	0.20
630-114-A-DGB	4.49	3.68	2.91	1.38	0.75	0.26	1.30	0.28	0.43	0.35	0.20
35W94BGA/C5	4.49	3.68	2.91	1.38	0.75	0.26	1.30	0.28	0.43	0.35	0.20
35W94BGA/C6	4.49	3.68	2.91	1.38	0.75	0.26	1.30	0.28	0.43	0.35	0.20

Part Number	l₁	l₂ ±0.02	l₃	b₁	b₂	d	h₁	h₂	h₃	h₄	t

35W94BGB/C1	4.49	3.68	2.91	1.38	0.75	0.26	1.30	0.28	0.43	0.35	0.20
630-114-B-DOR	4.49	3.68	2.91	1.38	0.75	0.26	1.30	0.28	0.43	0.35	0.20
630-114-B-DGR	4.49	3.68	2.91	1.38	0.75	0.26	1.30	0.28	0.43	0.35	0.20
630-114-B-DGB	4.49	3.68	2.91	1.38	0.75	0.26	1.30	0.28	0.43	0.35	0.20
630-114-B-DBL	4.49	3.68	2.91	1.38	0.75	0.26	1.30	0.28	0.43	0.35	0.20
35W94BGB/C6	4.49	3.68	2.91	1.38	0.75	0.26	1.30	0.28	0.43	0.35	0.20

l₁	l₂ ±0.02	l₃	b₁	b₂	d	h₁	h₂	h₃	h₄	t

4.49	3.68	2.91	1.38	0.75	0.26	1.30	0.28	0.43	0.35	0.20

Min	Max	Price
1	99	$6.35
100	249	$5.82
250	499	$5.29
≥ 500		$4.76

EN 630 Ergostyle® Off-Set Enclosed Safety "U" Handles Technopolymer Plastic, with Counterbored Through Holes


Product Family Ergostyle

Accessories for profile systems

Product description

Information

Specification

Technical drawing

Part Options / Table

Type

Type: A - Fixing with hexagon head screw

Type: B - Fixing with countersunk screw

Metric

Build & Price

Selected Part

CAD Download

CAD data

Login

Email CAD File

Need Help?

This could also be interesting...

A	Fixing with hexagon head screw
B	Fixing with countersunk screw
