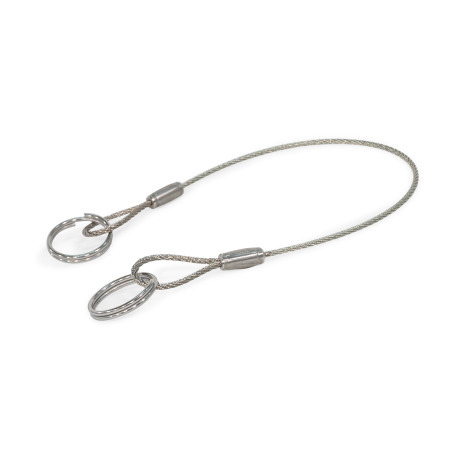

GN 111.8 retaining cables are available in 3 different types and can therefore be used in a wide range of applications, e.g. for loss protection or as connecting and fastening cables.
Due to the selection of materials, the retaining cables are suitable for use in highly corrosive environments.
On delivery the key rings are already mounted on the retaining cable. With type A, both rings have the same diameter d1.
For all types the loops are reversed laterally and attached parallel to each other, which is not entirely considered in the simplified drawing. The load values given in the table are non-binding guide values and rule out any liability.
Type A and type B are ideal suitable for ball lock pins and locking pins with axial lock.
*
- GN 113.11, GN 113.12
for pin Ø 5, Ø 6 mm
- GN 113.1, GN 113.3, GN 113.4, GN 113.7, GN 113.8, GN 113.9, GN 113.10, GN 113.30, GN 214.2, GN 214.3, GN 214.6
for pin Ø 5, Ø 6, Ø 8 mm
- GN 113.5, GN 113.6, GN 114.2, GN 114.3, GN 114.6, GN 124.1, GN 124.2
for all pin diameters
**
- GN 113.11, GN 113.12, GN 314
for pin Ø 8, Ø 10, Ø 12 mm
- GN 113.1, GN 113.3, GN 113.4, GN 113.7, GN 113.8, GN 113.9, GN 113.10, GN 113.30, GN 214.2, GN 214.3, GN 214.6
for pin Ø 10, Ø 12, Ø 16, Ø 20, Ø 25 mm
***
- GN 113.11, GN 113.12, GN 314
for pin Ø 16, Ø 20, Ø 25 mm
Retaining cable
Stainless steel AISI 316
Coated with plastic (PVC)
TransparentTR
Mounting tab
Stainless steel AISI 316
Plain finish
Key ring
Stainless steel AISI 316Ti
Plain, tumbled finish
Press sleeves
Stainless steel AISI 316
RoHS
| A | With 2 key rings |
| B | With 1 mounting tab and 1 key ring |
| Length l | d1 | d2 | Static load ≈ with key ring | without key ring |
|---|---|---|---|---|
| 5.91 | 0.55 | 0.04 | 16.86 lbf (75 N) | 337 lbf (1500 N) |
| 5.91 | 0.71 | 0.05 | 28.10 lbf (125 N) | 337 lbf (1500 N) |
| 5.91 | 0.94 | 0.06 | 31.47 lbf (140 N) | 337 lbf (1500 N) |
| 7.87 | 0.55 | 0.04 | 16.86 lbf (75 N) | 337 lbf (1500 N) |
| 7.87 | 0.71 | 0.05 | 28.10 lbf (125 N) | 337 lbf (1500 N) |
| 7.87 | 0.94 | 0.06 | 31.47 lbf (140 N) | 337 lbf (1500 N) |
| 12.60 | 0.55 | 0.04 | 16.86 lbf (75 N) | 337 lbf (1500 N) |
| 12.60 | 0.71 | 0.05 | 28.10 lbf (125 N) | 337 lbf (1500 N) |
| 12.60 | 0.94 | 0.06 | 31.47 lbf (140 N) | 337 lbf (1500 N) |
| Min | Max | Price |
|---|---|---|
| 1 | 99 | $6.61 |
| 100 | 249 | $6.06 |
| 250 | 499 | $5.51 |
| ≥ 500 | $4.95 |
