ELESA original design

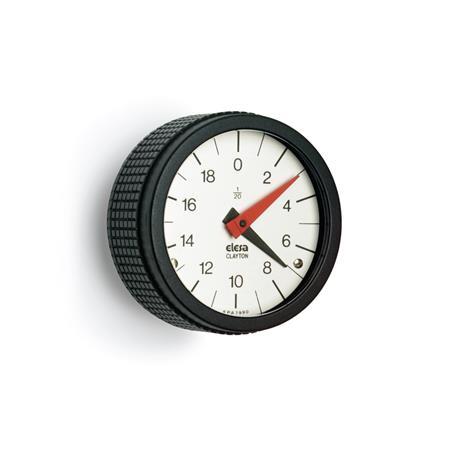

On knurled control knobs with position indicator EN 5348, the measuring gear is built into the knob i.e. hand knob and indicator are one integrated unit. This makes for an esthetically pleasing design as well as a good value.
Housing, and all internal components are an one-piece, ultrasonically welded assembly. They are spray waterproof and corrosion proof (Protection class IP 67).
The gravity drive is mounted on ball bearings to give the most accurate reading, usable up to a shaft inclination angle of 60°. The reduction gear ratio in the table shows the number of revolutions that are required by the long red pointer arm to make the short black pointer arm complete one revolution.
Installation instructions
Control knob, plastic
Technoplymer (Polyamide PA)
Sight glass, plastic
Technoplymer (Polyamide PA-T)
Control knob/sight glass
Pointer arms, plastic
Scale, aluminum
Bushing
Set screw DIN 916
With internal hexagon and serrated point
Protection class IP 67
RoHS
Special scales
| R | Numbers increasing clockwise |
| L | Numbers increasing counter-clockwise |
| d1 | d2 H7 Bore B | Reduction counting gear | d3 | d4 | d5 | b | l1 | l2 | l3 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.97 | B 8 | 2:1 | 10:1 | 24:1 | 50:1 | 0.71 | 0.94 | 1.65 | 1.24 | 0.69 | 1.89 | 0.24 |
| 1.97 | B 8 | 4:1 | 12:1 | 30:1 | 60:1 | 0.71 | 0.94 | 1.65 | 1.24 | 0.69 | 1.89 | 0.24 |
| 1.97 | B 8 | 6:1 | 16:1 | 36:1 | 72:1 | 0.71 | 0.94 | 1.65 | 1.24 | 0.69 | 1.89 | 0.24 |
| 1.97 | B 8 | 8:1 | 20:1 | 40:1 | 100:1 | 0.71 | 0.94 | 1.65 | 1.24 | 0.69 | 1.89 | 0.24 |
| 2.76 | B 10 | 2:1 | 10:1 | 24:1 | 50:1 | 0.87 | 1.10 | 2.36 | 1.30 | 0.87 | 2.05 | 0.24 |
| 2.76 | B 10 | 4:1 | 12:1 | 30:1 | 60:1 | 0.87 | 1.10 | 2.36 | 1.30 | 0.87 | 2.05 | 0.24 |
| 2.76 | B 10 | 6:1 | 16:1 | 36:1 | 72:1 | 0.87 | 1.10 | 2.36 | 1.30 | 0.87 | 2.05 | 0.24 |
| 2.76 | B 10 | 8:1 | 20:1 | 40:1 | 100:1 | 0.87 | 1.10 | 2.36 | 1.30 | 0.87 | 2.05 | 0.24 |
| Min | Max | Price |
|---|---|---|
| 1 | 6 | $80.59 |
| 7 | 99 | $77.66 |
| 100 | 249 | $73.26 |
| ≥ 250 | $65.93 |
