GN 927.5 Clamping Levers with Eccentrical Cam Stainless Steel, Threaded Stud Type, with Plastic Contact Plate

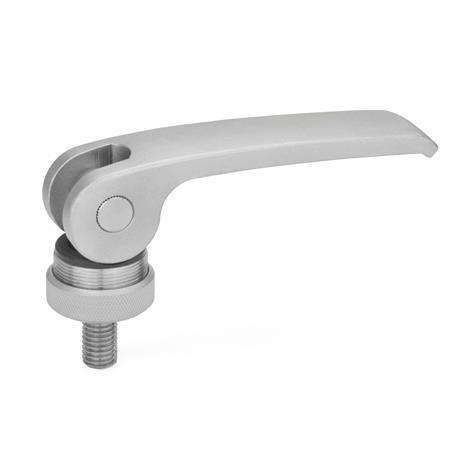

GN 927.5 Stainless Steel Clamping Levers with Eccentrical Cam, Threaded Stud Type, with Plastic Contact Plate Type: A - Plastic contact plate with setting nut
Type: A - Plastic contact plate with setting nut
GN 927.5 Stainless Steel Clamping Levers with Eccentrical Cam, Threaded Stud Type, with Plastic Contact Plate Type: A - Plastic contact plate with setting nut GN 927.5 Stainless Steel Clamping Levers with Eccentrical Cam, Threaded Stud Type, with Plastic Contact Plate Type: B - Plastic contact plate without setting nut

Product description

Information

Clamping levers GN 927.5 with eccentrical cam are used for rapid clamping and releasing operations. In contrast to a clamping operation utilizing only threads and a lateral force, these levers permit torque-free clamping via a combined downward vertical and cam actuated motion.

The lever has been designed to insure that its movement cannot exceed the maximum clamping position.

There are no loose components since all are assembled and mounted in their correct order.

Advantages of the Type A:

The distance between the eccentrical cam and the contact surface is adjustable by means of a fine threaded knurled nut. This permits the maximum clamping force to be set by a simple adjustment. In addition this also permits the selection of a preferred lever position in relation to the clamping lever pin.

Specification

Lever body
Stainless steel AISI CF-8
Type A
  • Assembly pin, lag screw, setting nut / screw
    Stainless steel AISI 303
  • Contact plate
    Plastic
    Technopolymer (Polyacetal POM)
    Glass fiber reinforced

Type B
  • Assembly pin, lag screw
    Stainless steel AISI 303
  • Contact plate
    Plastic
    Technopolymer (Polyamide PA)
    Glass fiber reinforced

RoHS compliant

Technical drawing

3D
Hide technical drawing
GN 927.5 Stainless Steel Clamping Levers with Eccentrical Cam, Threaded Stud Type, with Plastic Contact Plate sketch

Part Options / Table

Type

APlastic contact plate with setting nut
BPlastic contact plate without setting nut
Show / Hide columns

Inch

Dimensions in: Inch (change to Metric)
l1d2
Thread
l2
In clamping position
bd3d4d5h
Stroke at
90° lever
movement
l3
In clamping
position
l4
Adjustable
range
l5
In clamping
position
1.738 x 320.470.630.790.981.18--0.470.470.590.550.020.520.080.09
1.7310 x 320.470.630.790.981.181.381.570.470.470.590.550.020.520.080.09
2.4810 x 320.790.981.181.381.571.97-0.630.630.750.730.030.640.100.12
2.481/4 x 200.790.981.181.381.571.97-0.630.630.750.730.030.640.100.12
3.231/4 x 200.981.181.381.571.972.36-0.790.790.980.890.040.770.120.15
3.235/16 x 180.981.181.381.571.972.36-0.790.790.980.890.040.770.120.15
3.985/16 x 180.981.181.381.571.972.36-0.981.021.181.060.061.000.160.19
3.983/8 x 160.981.181.381.571.972.36-0.981.021.181.060.061.000.160.19
Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)
l1d2
Thread
l2
In clamping position
bd3d4d5h
Stroke at
90° lever
movement
l3
In clamping
position
l4
Adjustable
range
l5
In clamping
position
1.73M 40.470.630.790.981.18--0.470.470.590.550.020.520.080.09
1.73M 50.470.630.790.981.181.381.570.470.470.590.550.020.520.080.09
2.48M 50.630.790.981.181.381.571.970.630.630.750.730.030.640.100.12
2.48M 60.630.790.981.181.381.571.970.630.630.750.730.030.640.100.12
3.23M 60.790.981.181.381.571.972.360.790.790.980.890.040.770.120.15
3.23M 80.790.981.181.381.571.972.360.790.790.980.890.040.770.120.15
3.98M 80.790.981.181.381.571.972.360.981.021.181.060.061.000.160.19
3.98M 100.790.981.181.381.571.972.360.981.021.181.060.061.000.160.19

Build & Price

3D Product Configurator
Lever length l1
Thread d2

Inch


Metric


Thread length l2
Type


Constructional Features (Type A)

Sketch GN 927

Application Examples

Application examples GN 927

Selected Part

Total US Dollars (net)
$23.49
In Stock: 33
In Stock
Please note our quantity discounts (US Dollars).
MinMaxPrice
199$23.49
100249$21.53
250499$19.58
≥ 500$17.62
Prop 65: Not compliant
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
RoHS: Compliant
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 0.065 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351
All Prices are in US Dollars. Taxes Not Included.
