GN 612.1 Mounting Blocks Steel, for Indexing Plungers / Cam Action Indexing Plungers

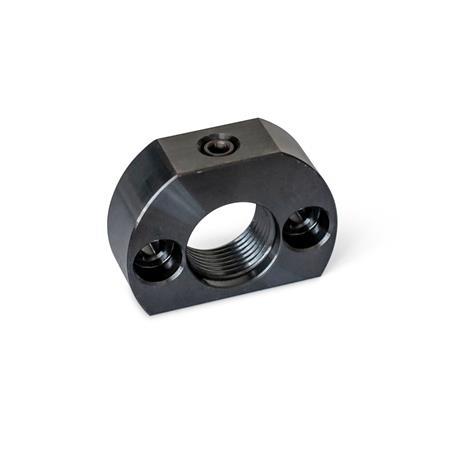

GN 612.1 Steel Mounting Blocks, for Indexing Plungers / Cam Action Indexing Plungers Type: A - Mounting holes parallel to plunger
Type: A - Mounting holes parallel to plunger
GN 612.1 Steel Mounting Blocks, for Indexing Plungers / Cam Action Indexing Plungers Type: A - Mounting holes parallel to plunger GN 612.1 Steel Mounting Blocks, for Indexing Plungers / Cam Action Indexing Plungers Type: B - Mounting holes vertical to plunger

Product description

Information

GN 612.1 mounting blocks are an accessory that broadens the mounting possibilities for indexing plungers (e.g. GN 817) and GN 612, GN 712 and GN 712.1 cam action indexing plungers.

To position the plunger pin of an indexing plunger or cam action indexing plunger, they can also accommodate GN 412.2 locating bushings.

Specification

Mounting block
Steel, blackened finish

Set screw GN 913.3 with brass tip
Steel, blackened finish

RoHS compliant

Technical drawing

3D
Hide technical drawing
GN 612.1 Steel Mounting Blocks, for Indexing Plungers / Cam Action Indexing Plungers sketch

Part Options / Table

Type

AMounting holes parallel to plunger
BMounting holes vertical to plunger
Show / Hide columns

Metric

Dimensions in: Inch | Metric
d1
Thread
d2d3
Thread
d4±0.004l1l2l3s
M 12 x 1.51.26M 50.180.830.871.040.350.47
M 16 x 1.51.81M 80.221.261.301.460.510.59
M 20 x 1.51.81M 80.221.261.301.460.510.59

Build & Price

Thread d1
Type


Selected Part

Total US Dollars (net)
$16.63
In stock: 0
Call / Email for Delivery Time
Please note our quantity discounts (US Dollars).
MinMaxPrice
199$16.63
100249$15.25
250499$13.86
≥ 500$12.47
Weight: 0.097 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351
RoHS compliant: Yes
This article conforms to RoHS, which means it complies with EU Directive 2011/65/EU for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
