GN 614.1 Holding Blocks Zinc Die-Cast, with GN 614 Short Press-Fit Ball Plungers

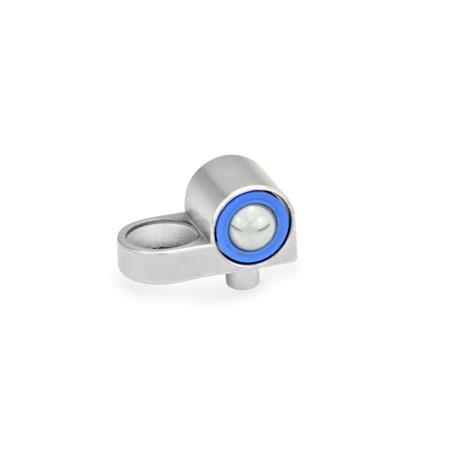

GN 614.1 Zinc Die-Cast Holding Blocks with GN 614 Short Press-Fit Ball Plungers Type: LKU - Mounting on the left, with ball plunger
Type: LKU - Mounting on the left, with ball plunger
GN 614.1 Zinc Die-Cast Holding Blocks with GN 614 Short Press-Fit Ball Plungers Type: LKU - Mounting on the left, with ball plunger GN 614.1 Zinc Die-Cast Holding Blocks with GN 614 Short Press-Fit Ball Plungers Type: BKU - Mounting on both sides, with ball plunger GN 614.1 Zinc Die-Cast Holding Blocks with GN 614 Short Press-Fit Ball Plungers Type: RKU - Mounting on the right, with ball plunger

Product description

Information

GN 614.1 holding blocks with press-fit ball plungers are used as detents and for push-on / push-off applications. Typically used when the drilling of a hole for the mounting of the press-fit ball plunger itself is not advantageous for the application requirement.

Easy assembly using one or two countersunk screws to mount the blocks.

Specification

Holding block
Zinc die-cast, nickel plated
Ball plunger GN 614-KU
  • Housing
    Delrin® Plastic (Polyacetal POM)
    Temperature resistant up to 122 °F (50 °C)
  • Ball
    Stainless steel AISI 420C
    Hardened

RoHS compliant

Technical drawing

3D
Hide technical drawing
GN 614.1 Zinc Die-Cast Holding Blocks with GN 614 Short Press-Fit Ball Plungers sketch

Part Options / Table

Type

LKUMounting on the left, with ball plunger
RKUMounting on the right, with ball plunger
BKUMounting on both sides, with ball plunger
Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)
d1
Bore for
GN 614 ball plunger
d2
Ball Ø
d3
For DIN 7991
countersunk screw
d4 -0.002bh1 ±0.002h2l1 ±0.002l2-0.004
Compression
Spring load ≈
Initial

End
0.240.200.13M 30.120.330.170.130.300.120.061.46 lbf (6.5 N)2.92 lbf (13 N)
0.310.260.17M 40.160.410.210.170.370.160.071.8 lbf (8 N)4.05 lbf (18 N)

Build & Price

3D Product Configurator
Bore diameter d1
Type



Selected Part

Total US Dollars (net)
$3.83
Call / Email for Delivery Time
Please note our quantity discounts (US Dollars).
MinMaxPrice
199$3.83
100249$3.51
250499$3.20
≥ 500$2.88
Prop 65: Not compliant
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
RoHS: Compliant
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 0.008 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351
All Prices are in US Dollars. Taxes Not Included.
