EN 217 Cam Latches / Cam Locks Steel, with Plastic Star Knob

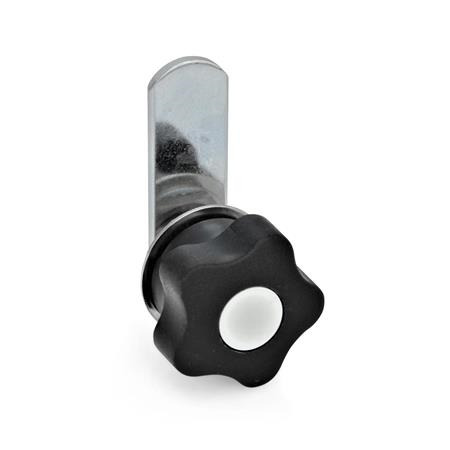

EN 217 Steel Cam Latches / Cam Locks, with Plastic Star Knob Type: A - With straight latch arm
Version: OS - Without lock, moveable by 90° rotatable
ELESA original design
code: VC.308/309
Type: A - With straight latch arm
Version: OS - Without lock, moveable by 90° rotatable
EN 217 Steel Cam Latches / Cam Locks, with Plastic Star Knob Type: A - With straight latch arm
Version: OS - Without lock, moveable by 90° rotatable EN 217 Steel Cam Latches / Cam Locks, with Plastic Star Knob Type: A - With straight latch arm
Version: SL - Lockable by counter-clockwise turn EN 217 Steel Cam Latches / Cam Locks, with Plastic Star Knob Type: A - With straight latch arm
Version: SR - Lockable by clockwise turn EN 217 Steel Cam Latches / Cam Locks, with Plastic Star Knob Type: B - With off-set latch arm
Version: OS - Without lock, moveable by 90° rotatable EN 217 Steel Cam Latches / Cam Locks, with Plastic Star Knob Type: B - With off-set latch arm
Version: SL - Lockable by counter-clockwise turn EN 217 Steel Cam Latches / Cam Locks, with Plastic Star Knob Type: B - With off-set latch arm
Version: SR - Lockable by clockwise turn

Product description

Information

For EN 217 cam locks, two keys are supplied with each cam lock. Cam locks are available in more than 480 variations, whose keys are marked with specific numbers.

The key may be inserted or withdrawn in both the locked and unlocked positions.


Specification

Star knob
Plastic
Technopolymer (Polypropylene PP)
  • Black, matte finish
  • Temperature resistant up to 90 °C (194 °F)

Latch arm
Straight / offset
Steel sheet metal, zinc plated

Key
Brass, nickel plated

Assembly hardware
Steel, zinc plated, brass or stainless steel


RoHS compliant

On request

Cam locks keyed alike
Cam locks keyed differently

Technical drawing

3D
Hide technical drawing
EN 217 Steel Cam Latches / Cam Locks, with Plastic Star Knob sketch

Part Options / Table

Type

AWith straight latch arm
BWith off-set latch arm

Version

SLLockable by counter-clockwise turn
SRLockable by clockwise turn
OSWithout lock, moveable by 90° rotatable
Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)
d1a1
Type A
a2
Type B
bd2h1h2l1 ±0.02
Type A
l2 ±0.02
Type B
1.571.971.890.791.140.980.430.390.71

Build & Price

3D Product Configurator
Diameter d1
Type


Version



Construction and assembly instructions

Sketch GN 217 construction

Selected Part

Total US Dollars (net)
$21.17
Call / Email for Delivery Time
Please note our quantity discounts (US Dollars).
MinMaxPrice
149$21.17
5099$19.41
100249$17.65
≥ 250$15.88
Prop 65: -
Please contact our Sales Department for more information: 800-877-8351
RoHS: -
This part is new in our product range, no details are available at this time. For more recent details on the RoHS compatibility, please contact our Sales Department!
Weight: 0.253 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351
All Prices are in US Dollars. Taxes Not Included.

CAD Download

Other Data Formats

Email CAD File

To receive an email with a CAD download without creating an account, please enter your e-mail address. Max of 3 CAD files per day unless you create an account.

Please enter the code above.

CAD Download Tutorial About CAD Downloads
Save as Favorites

Please enter the code above.

Need Help?

Our service team is available from Monday to Friday between 7:30 AM and 5:00 PM Central Time: 800-877-8351

Special Requests | Contact our sales team
