EN 623.1 Cam Latches / Cam Locks Steel, with Plastic Lever

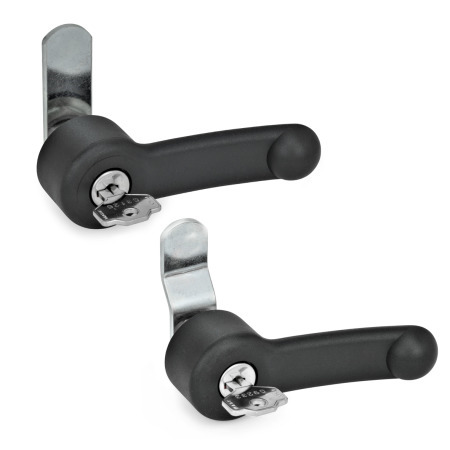

EN 623.1 Steel Cam Latches / Cam Locks, with Plastic Lever Type: SL - Lockable by counter-clockwise turn
ELESA original design
code: ELCK
Type: SL - Lockable by counter-clockwise turn
EN 623.1 Steel Cam Latches / Cam Locks, with Plastic Lever Type: SL - Lockable by counter-clockwise turn EN 623.1 Steel Cam Latches / Cam Locks, with Plastic Lever Type: OS - Without lock, latch arm 90° rotatable EN 623.1 Steel Cam Latches / Cam Locks, with Plastic Lever Type: SR - Lockable by clockwise turn
Ergostyle

Product Family Ergostyle

Ergostyle standard parts combine functional and ergonomic operation with attractive appearance. Numerous design awards are proof of the high quality claim. The hallmark of Ergostyle products are five small dots.

  • functional, ergonomic design
  • ultimate design quality (numerous design awards)
Show all Ergostyle products

Product description

Information

For EN 623.1 cam locks, two keys are supplied with each cam lock. Cam locks are available in more than 480 variations, whose keys are marked with specific numbers.

The key may be inserted or withdrawn in both the locked and unlocked positions.


Specification

Lever body
Plastic
Technopolymer (Polyamide PA)
  • Glass fiber reinforced
  • Black-gray, similar to RAL 7021, matte finish
  • Temperature resistant up to 266 °F (130 °C)

Latch arm
Straight / off-set
Steel sheet metal, zinc plated

Key
Brass, nickel plated

Assembly hardware
Steel, zinc plated, brass or stainless steel

RoHS compliant

On request

Cam locks keyed alike
Cam locks keyed differently

Technical drawing

3D
Hide technical drawing
EN 623.1 Steel Cam Latches / Cam Locks, with Plastic Lever sketch

Part Options / Table

Type

SLLockable by counter-clockwise turn
SRLockable by clockwise turn
OSWithout lock, latch arm 90° rotatable
Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)
l1Latch distance Ad1d2h1h2
2.640.390.711.260.791.380.98
3.350.390.711.460.911.610.98

Build & Price

3D Product Configurator
Length l1
Type



Latch distance A

Construction and Assembly Instructions

Sketch GN 623.1 construction

Selected Part

Total US Dollars (net)
$25.39
Call / Email for Delivery Time
Please note our quantity discounts (US Dollars).
MinMaxPrice
15$25.39
649$24.47
5099$23.09
≥ 100$20.78
Prop 65: -
Please contact our Sales Department for more information.
RoHS: -
No details on RoHS compatibility are available at this time. Please contact our Sales Department for more information.
Weight: 0.140 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
