GN 115.9 Safety Cam Latches Zinc Die-Cast, with Operating Elements

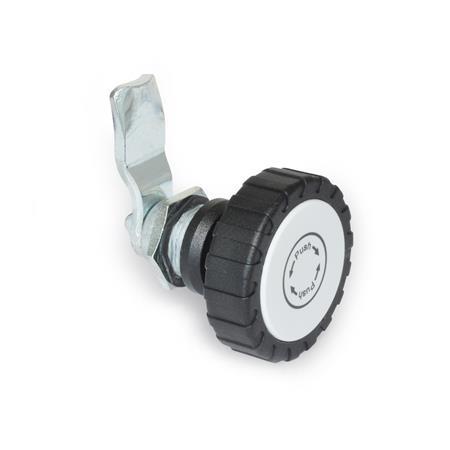

GN 115.9 Zinc Die-Cast Safety Cam Latches, with Operating Elements Type: RG - With hollow knurled knob GN 7336
Type: RG - With hollow knurled knob GN 7336
GN 115.9 Zinc Die-Cast Safety Cam Latches, with Operating Elements Type: RG - With hollow knurled knob GN 7336 GN 115.9 Zinc Die-Cast Safety Cam Latches, with Operating Elements Type: HG - With lever GN 115.9 Zinc Die-Cast Safety Cam Latches, with Operating Elements Type: KG - With wing knob

Product description

Information

GN 115.9 safety cam latches have a push-to-turn safety function. In the two end positions the spindle is locked in place by the cam latch. The latch arm can be turned 90° (a quarter of a turn) only when the hand operating element is pushed in, which releases the safety pin from the locked position. This feature protects the latch arm from moving on its own or as the result of vibrations.

The beveled edges of the latch arm create a smooth latching of the door. The 15 different off-set latch arm options allow the "Latch distance A" to be set between 4 mm and 32 mm.

Product comes supplied with a loosely enclosed latch arm.


Specification

Cam latch housing
Zinc die-cast

Housing collar
Powder coated
Black, textured finishSW

Latch arm / assembly hardware
Steel, zinc plated, blue passivated finish

Operating elements
Plastic
Technopolymer (Polyamide PA)
Black, matte finish

Cover cap
Plastic
Technopolymer (Polyamide PA)
Light gray

RoHS compliant

Accessory

Protective guide plates GN 120.2

Technical drawing

3D
Hide technical drawing
GN 115.9 Zinc Die-Cast Safety Cam Latches, with Operating Elements sketch

Part Options / Table

Type

RGWith hollow knurled knob GN 7336
KGWith wing knob
HGWith lever

Metric

Dimensions in: Inch (change to Metric)
Latch distance A
0.160.240.310.390.510.550.630.710.790.870.941.021.101.181.26

Build & Price

3D Product Configurator
Type



Latch distance A
Finish (Housing collar)

Construction and Assembly Instructions

Skizze GN 115 Montage

For installation, create a bore in the door, cover or hatch as shown in the outline drawing.

Once assembled, the cam latch is inserted through the bore from the front. The hex nut can then be placed over the latch arm and onto the threaded housing and fastened in place.

The installation bore in the door leaf is usually generated by punching or laser machining during a mass production run.

The installation bore can also be created by drilling / milling as shown in the outline drawings.

For small production runs and steel sheets below 2 mm thickness, Sheet Metal Punches GN 123 are the tool of choice.

Selected Part

Total US Dollars (net)
$22.43
In Stock: 4
In Stock
Please note our quantity discounts (US Dollars).
MinMaxPrice
199$22.43
100249$20.56
250499$18.70
≥ 500$16.83
Prop 65: -
Please contact our Sales Department for more information.
RoHS: -
No details on RoHS compatibility are available at this time. Please contact our Sales Department for more information.
Weight: -
If the weight is not listed, please contact our Sales Department for more information.
Phone: 800-877-8351
All Prices are in US Dollars. Taxes Not Included.
