EN 160 Lift-Off Hinges Technopolymer Plastic, with Eccentric Pin

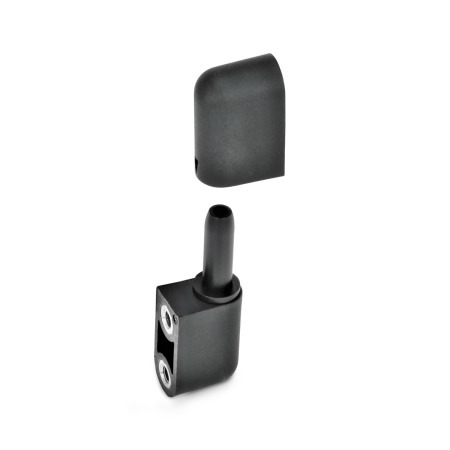

Lift-Off Hinges EN 160: Technopolymer Plastic, with Eccentric Pin
Original design
code: CFN.
Type: A - 2x2 tapped inserts
List of Cam Latch / Cam Lock Types Plastic Characteristics Load Rating Information

Product description

With lift-off hinges EN 160, the two eccentric pins that form the fulcrum are offset 0.5 mm from each other. Because of this design, the position of the door can be altered or adjusted in relation to the door frame.

Specification

  • Body
    Plastic
    Technopolymer (Polyamide PA)
    • Glass fiber reinforced
    • Black, matte finish
    • Temperature resistant up to 176 °F (80 ˚C)
  • Pin
    Plastic
    Technopolymer (Polyacetal POM)
  • Tapped inserts
    Brass, nickel plated
  • Threaded studs
    Steel, nickel plated

RoHS

EN 160 Technopolymer Plastic Lift-Off Hinges, with Eccentric Pin sketch
Hide technical drawing
EN 160 Technopolymer Plastic Lift-Off Hinges, with Eccentric Pin sketch

Part Options / Table

Type

A2x2 tapped inserts
B2x2 threaded studs
C2x threaded studs (at the eccentric pin) 2x tapped inserts
D2x tapped inserts (at the eccentric pin) / 2x threaded studs
Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)
l1 l2 abd1d2l3l4mt
1.102.520.080.57M 50.310.240.470.750.30

Build & Price
Width l1
Length l2
Type




Width l1
Length l2
Type




Construction and Assembly Instructions

The hinge section is to be attached to the door frame with the octagon holder.
First insert the pin such that the reference marking of the pin coincides with the arrow at the hinge.

The eccentric pin is to be placed in eight positions via the octagon.
Depending on position, I1 changes: min. 27.5 / max. 28.5 mm.
5a7c306a-c3f5-453e-9dbf-66126c61d39c 621d5bc0-3c4e-4f7e-861c-f7e909517aab

Aligning the Door

To align the door, the eccentric pin of the top and bottom hinge may be turned into the required position.
a67d2fbf-d91c-4f1e-aea2-0ef4e42556dd bca7227c-5beb-4aaa-b499-5e7dd49230ec

Hinge 1: Turn pin counter-clockwise

Hinge 2: Turn pin clockwise

Hinge 1: Turn pin clockwise

Hinge 2: Turn pin counter-clockwise

Hinge Layout

Door to be unhinged

Door not to be unhinged
GN 160 Skizze5 GN 160 Skizze6

The top hinge section may be mounted to the frame only after the bottom hinge has been hung.

Selected Part

Total (net)
US$8.22
Call / Email for Delivery Time
Create Project List
Save as Favorites
Recommend a product
Please note our quantity discounts (US Dollars).
MinMaxPrice
19US$8.22
10249US$7.92
250499US$7.48
≥ 500US$6.73
Prop 65: Not compliant
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
RoHS: Compliant
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 0.052 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
