EN 237.1 Hinges Technopolymer Plastic, Extended Hinge Wing

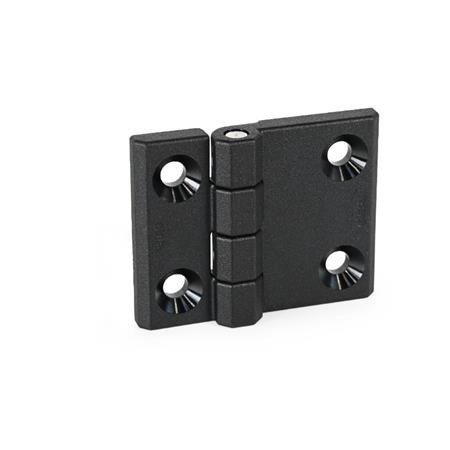

EN 237.1 Technopolymer Plastic Hinges, Extended Hinge Wing Hinge wings: l3 ≠ l4
ELESA original design
code: CFM-L.
Hinge wings: l3 ≠ l4
EN 237.1 Technopolymer Plastic Hinges, Extended Hinge Wing Hinge wings: l3 ≠ l4 EN 237.1 Technopolymer Plastic Hinges, Extended Hinge Wing Hinge wings: l3 = l4

Product description

Information

Hinges EN 237.1 with horizontally extended hinge wings are made in a compact and sturdy design. They are used when larger spacings are required for the attachment bore holes.

Specification

Body
Plastic
Technopolymer (Polyamide PA-HP)

  • Glass fiber reinforced
  • Temperature resistant up to 285 °F (140 °C)
  • Black, matte finish

Pin
Stainless steel AISI 303


RoHS

Technical drawing

3D
Hide technical drawing
EN 237.1 Technopolymer Plastic Hinges, Extended Hinge Wing sketch

Part Options / Table

Type

A2x2 bores for countersunk screws
Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)
l1
Extended
on one side
Extended
on both sides
l2d1d2h1h2h3h4 ≈l3l4m1 ±0.010m2 ±0.010m3m4
2.48-1.970.260.240.450.240.260.510.711.221.6931.1810.591.10
-2.991.970.260.240.450.240.260.511.221.222.2051.1811.101.10
3.54-2.360.260.310.590.310.330.670.832.012.4801.4170.711.77
-4.722.360.260.310.590.310.330.672.012.013.5431.4171.771.77

Build & Price

3D Product Configurator
Length l1
Width l2
Type

Selected Part

Total US Dollars (net)
$7.51
Call / Email for Delivery Time
Please note our quantity discounts (US Dollars).
MinMaxPrice
19$7.51
10249$7.24
250499$6.83
≥ 500$6.15
Prop 65: Not compliant
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
RoHS: Compliant
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 0.081 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351
All Prices are in US Dollars. Taxes Not Included.
