Hinges EN 237.1

Product description

Information

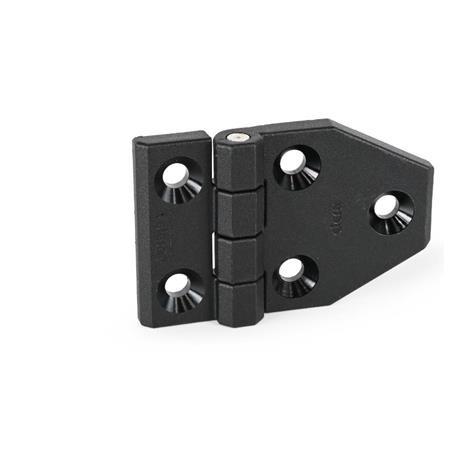

Pointed hinges EN 237.1 feature a compact and sturdy design. The additional installation holes allow a more effective transmission of force to the mounting surface.

Specification

Body
Plastic
Technopolymer (Polyamide PA-HP)

Glass fiber reinforced
Temperature resistant up to 212 °F (100 °C)
Black, matte finish

Pin
Stainless steel AISI 303

RoHS
