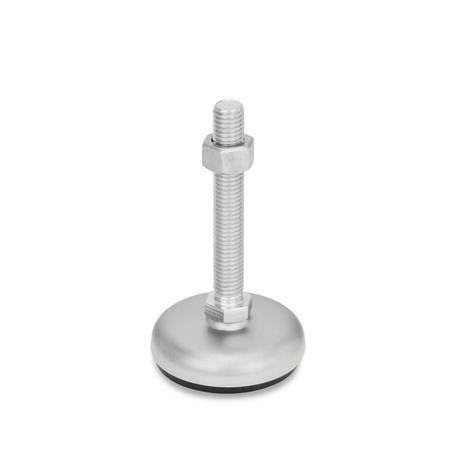

Version (Stud / Socket): SK - With nut, external hex at the bottom

Type (Base): B1 - Matte shot-blasted finish, rubber pad inlay, black
Version (Stud / Socket): SK - With nut, external hex at the bottom

GN 31 Inch Thread, Stainless Steel Leveling Feet, Tapped Socket or Threaded Stud Type, with Rubber Pad Type (Base): B2 - Matte shot-blasted finish, rubber pad inlay, white
Version (Stud / Socket): X - External hex, tapped socket type

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

Standard Sheet GN 31 Print This Page Load Rating Information GN 31 / GN 33 Plastic Characteristics Stainless Steel Characteristics

Product description

Information

Leveling feet GN 31 are supplied fully assembled and cannot be disassembled.

The black rubber pad inlay (NBR) offers high resistance to swelling when in contact with oils and fuels. The white rubber pad inlay (TPE) has excellent dynamic fatigue life and is resistant to ozone and atmospheric influences.

Specification

Base
Stainless steel AISI 304

Threaded stud / tapped socket
Stainless steel AISI 303

Hex nut
ANSI / ASME B18.2.2
Stainless steel AISI 304

Rubber pad inlay

Black: NBR (Perbunan^®) 80 ±5 Shore A
White: TPE (Santoprene^®) 80 ±5 Shore A

RoHS

On request

Stud versions T / TK, V / VK and W with certain minium quantities

Technical drawing

GN 31 Inch Thread, Stainless Steel Leveling Feet, Tapped Socket or Threaded Stud Type, with Rubber Pad sketch

Hide technical drawing

Part Options / Table

Type (Base)

B1	Matte shot-blasted finish, rubber pad inlay, black
B2	Matte shot-blasted finish, rubber pad inlay, white

Version (Stud / Socket)

S	Without nut, external hex at the bottom
SK	With nut, external hex at the bottom
U	Without nut, internal hex at the top, wrench flat at the bottom
UK	With nut, internal hex at the top, wrench flat at the bottom
X	External hex, tapped socket type

Part Number X - External hex, tapped socket type	Part Number S - Without nut, external hex at the bottom	Part Number SK - With nut, external hex at the bottom	Part Number U - Without nut, internal hex at the top, wrench flat at the bottom	Part Number UK - With nut, internal hex at the top, wrench flat at the bottom	d₁	d₂	l₁ Version S / SK	Version U / UK	l₇ +0.157 Version X	h₁	h₂	s

31-50-5/16X18-37-B1-X					1.97	5/16 x 18	-	-	1.457 +0.157	5.71	1.38	0.12
	31-50-3/8X16-75-B1-S	31-50-3/8X16-75-B1-SK			1.97	3/8 x 16	2.95	-	-	5.71	1.38	0.12
	31-50-3/8X16-100-B1-S	31-50-3/8X16-100-B1-SK			1.97	3/8 x 16	3.94	-	-	5.71	1.38	0.12
	31-50-3/8X16-125-B1-S	31-50-3/8X16-125-B1-SK			1.97	3/8 x 16	4.92	-	-	5.71	1.38	0.12
	31-50-3/8X16-150-B1-S	31-50-3/8X16-150-B1-SK			1.97	3/8 x 16	5.91	-	-	5.71	1.38	0.12
31-50-3/8X16-40-B1-X					1.97	3/8 x 16	-	-	1.575 +0.157	5.71	1.38	0.12
	31-50-1/2X13-75-B1-S	31-50-1/2X13-75-B1-SK			1.97	1/2 x 13	2.95	-	-	5.71	1.38	0.12
	31-50-1/2X13-100-B1-S	31-50-1/2X13-100-B1-SK			1.97	1/2 x 13	3.94	-	-	5.71	1.38	0.12
	31-50-1/2X13-125-B1-S	31-50-1/2X13-125-B1-SK			1.97	1/2 x 13	4.92	-	-	5.71	1.38	0.12
	31-50-1/2X13-150-B1-S	31-50-1/2X13-150-B1-SK			1.97	1/2 x 13	5.91	-	-	5.71	1.38	0.12
31-50-1/2X13-43-B1-X					1.97	1/2 x 13	-	-	1.693 +0.157	5.71	1.38	0.12
31-50-5/8X11-49-B1-X					1.97	5/8 x 11	-	-	1.929 +0.157	0.63	1.38	0.12
			31-50-5/8X11-75-B1-U	31-50-5/8X11-75-B1-UK	1.97	5/8 x 11	-	2.95	-	0.63	1.38	0.12
			31-50-5/8X11-100-B1-U	31-50-5/8X11-100-B1-UK	1.97	5/8 x 11	-	3.94	-	0.63	1.38	0.12
			31-50-5/8X11-125-B1-U	31-50-5/8X11-125-B1-UK	1.97	5/8 x 11	-	4.92	-	0.63	1.38	0.12
			31-50-5/8X11-150-B1-U	31-50-5/8X11-150-B1-UK	1.97	5/8 x 11	-	5.91	-	0.63	1.38	0.12
31-60-5/16X18-38-B1-X					2.36	5/16 x 18	-	-	1.496 +0.157	0.63	0.16	0.12
	31-60-3/8X16-75-B1-S	31-60-3/8X16-75-B1-SK			2.36	3/8 x 16	2.95	-	-	0.63	0.16	0.12
	31-60-3/8X16-100-B1-S	31-60-3/8X16-100-B1-SK			2.36	3/8 x 16	3.94	-	-	0.63	0.16	0.12
	31-60-3/8X16-125-B1-S	31-60-3/8X16-125-B1-SK			2.36	3/8 x 16	4.92	-	-	0.63	0.16	0.12
	31-60-3/8X16-150-B1-S	31-60-3/8X16-150-B1-SK			2.36	3/8 x 16	5.91	-	-	0.63	0.16	0.12
31-60-3/8X16-41-B1-X					2.36	3/8 x 16	-	-	1.614 +0.157	0.63	0.16	0.12
	31-60-1/2X13-75-B1-S	31-60-1/2X13-75-B1-SK			2.36	1/2 x 13	2.95	-	-	0.63	0.16	0.12
	31-60-1/2X13-100-B1-S	31-60-1/2X13-100-B1-SK			2.36	1/2 x 13	3.94	-	-	0.63	0.16	0.12
	31-60-1/2X13-125-B1-S	31-60-1/2X13-125-B1-SK			2.36	1/2 x 13	4.92	-	-	0.63	0.16	0.12
	31-60-1/2X13-150-B1-S	31-60-1/2X13-150-B1-SK			2.36	1/2 x 13	5.91	-	-	0.63	0.16	0.12
31-60-1/2X13-45-B1-X					2.36	1/2 x 13	-	-	1.772 +0.157	0.63	0.16	0.12
31-60-5/8X11-50-B1-X					2.36	5/8 x 11	-	-	1.969 +0.157	0.63	0.16	0.12
			31-60-5/8X11-75-B1-U	31-60-5/8X11-75-B1-UK	2.36	5/8 x 11	-	2.95	-	0.63	0.16	0.12
			31-60-5/8X11-100-B1-U	31-60-5/8X11-100-B1-UK	2.36	5/8 x 11	-	3.94	-	0.63	0.16	0.12
			31-60-5/8X11-125-B1-U	31-60-5/8X11-125-B1-UK	2.36	5/8 x 11	-	4.92	-	0.63	0.16	0.12
			31-60-5/8X11-150-B1-U	31-60-5/8X11-150-B1-UK	2.36	5/8 x 11	-	5.91	-	0.63	0.16	0.12
31-80-5/16X18-40-B1-X					3.15	5/16 x 18	-	-	1.575 +0.157	0.71	0.20	0.12
	31-80-3/8X16-75-B1-S	31-80-3/8X16-75-B1-SK			3.15	3/8 x 16	2.95	-	-	0.71	0.20	0.12
	31-80-3/8X16-100-B1-S	31-80-3/8X16-100-B1-SK			3.15	3/8 x 16	3.94	-	-	0.71	0.20	0.12
	31-80-3/8X16-125-B1-S	31-80-3/8X16-125-B1-SK			3.15	3/8 x 16	4.92	-	-	0.71	0.20	0.12
	31-80-3/8X16-150-B1-S	31-80-3/8X16-150-B1-SK			3.15	3/8 x 16	5.91	-	-	0.71	0.20	0.12
31-80-3/8X16-43-B1-X					3.15	3/8 x 16	-	-	1.693 +0.157	0.71	0.20	0.12
	31-80-1/2X13-75-B1-S	31-80-1/2X13-75-B1-SK			3.15	1/2 x 13	2.95	-	-	0.71	0.20	0.12
	31-80-1/2X13-100-B1-S	31-80-1/2X13-100-B1-SK			3.15	1/2 x 13	3.94	-	-	0.71	0.20	0.12
	31-80-1/2X13-125-B1-S	31-80-1/2X13-125-B1-SK			3.15	1/2 x 13	4.92	-	-	0.71	0.20	0.12
	31-80-1/2X13-150-B1-S	31-80-1/2X13-150-B1-SK			3.15	1/2 x 13	5.91	-	-	0.71	0.20	0.12
31-80-1/2X13-47-B1-X					3.15	1/2 x 13	-	-	1.850 +0.157	0.71	0.20	0.12
31-80-5/8X11-52-B1-X					3.15	5/8 x 11	-	-	2.047 +0.157	0.71	0.20	0.12
			31-80-5/8X11-75-B1-U	31-80-5/8X11-75-B1-UK	3.15	5/8 x 11	-	2.95	-	0.71	0.20	0.12
			31-80-5/8X11-100-B1-U	31-80-5/8X11-100-B1-UK	3.15	5/8 x 11	-	3.94	-	0.71	0.20	0.12
			31-80-5/8X11-125-B1-U	31-80-5/8X11-125-B1-UK	3.15	5/8 x 11	-	4.92	-	0.71	0.20	0.12
			31-80-5/8X11-150-B1-U	31-80-5/8X11-150-B1-UK	3.15	5/8 x 11	-	5.91	-	0.71	0.20	0.12
31-80-3/4X10-60-B1-X					3.15	3/4 x 10	-	-	2.362 +0.157	0.71	0.20	0.12
			31-80-3/4X10-100-B1-U	31-80-3/4X10-100-B1-UK	3.15	3/4 x 10	-	3.94	-	0.71	0.20	0.12
			31-80-3/4X10-125-B1-U	31-80-3/4X10-125-B1-UK	3.15	3/4 x 10	-	4.92	-	0.71	0.20	0.12
			31-80-3/4X10-150-B1-U	31-80-3/4X10-150-B1-UK	3.15	3/4 x 10	-	5.91	-	0.71	0.20	0.12
31-100-5/16X18-42-B1-X					3.94	5/16 x 18	-	-	1.654 +0.157	0.79	0.24	0.12
	31-100-3/8X16-75-B1-S	31-100-3/8X16-75-B1-SK			3.94	3/8 x 16	2.95	-	-	0.79	0.24	0.12
	31-100-3/8X16-100-B1-S	31-100-3/8X16-100-B1-SK			3.94	3/8 x 16	3.94	-	-	0.79	0.24	0.12
	31-100-3/8X16-125-B1-S	31-100-3/8X16-125-B1-SK			3.94	3/8 x 16	4.92	-	-	0.79	0.24	0.12
	31-100-3/8X16-150-B1-S	31-100-3/8X16-150-B1-SK			3.94	3/8 x 16	5.91	-	-	0.79	0.24	0.12
31-100-3/8X16-45-B1-X					3.94	3/8 x 16	-	-	1.772 +0.157	0.79	0.24	0.12
	31-100-1/2X13-75-B1-S	31-100-1/2X13-75-B1-SK			3.94	1/2 x 13	2.95	-	-	0.79	0.24	0.12
	31-100-1/2X13-100-B1-S	31-100-1/2X13-100-B1-SK			3.94	1/2 x 13	3.94	-	-	0.79	0.24	0.12
	31-100-1/2X13-125-B1-S	31-100-1/2X13-125-B1-SK			3.94	1/2 x 13	4.92	-	-	0.79	0.24	0.12
	31-100-1/2X13-150-B1-S	31-100-1/2X13-150-B1-SK			3.94	1/2 x 13	5.91	-	-	0.79	0.24	0.12
31-100-1/2X13-49-B1-X					3.94	1/2 x 13	-	-	1.929 +0.157	0.79	0.24	0.12
31-100-5/8X11-54-B1-X					3.94	5/8 x 11	-	-	2.126 +0.157	0.79	0.24	0.12
			31-100-5/8X11-75-B1-U	31-100-5/8X11-75-B1-UK	3.94	5/8 x 11	-	2.95	-	0.79	0.24	0.12
			31-100-5/8X11-100-B1-U	31-100-5/8X11-100-B1-UK	3.94	5/8 x 11	-	3.94	-	0.79	0.24	0.12
			31-100-5/8X11-125-B1-U	31-100-5/8X11-125-B1-UK	3.94	5/8 x 11	-	4.92	-	0.79	0.24	0.12
			31-100-5/8X11-150-B1-U	31-100-5/8X11-150-B1-UK	3.94	5/8 x 11	-	5.91	-	0.79	0.24	0.12
31-100-3/4X10-62-B1-X					3.94	3/4 x 10	-	-	2.441 +0.157	0.79	0.24	0.12
			31-100-3/4X10-100-B1-U	31-100-3/4X10-100-B1-UK	3.94	3/4 x 10	-	3.94	-	0.79	0.24	0.12
			31-100-3/4X10-125-B1-U	31-100-3/4X10-125-B1-UK	3.94	3/4 x 10	-	4.92	-	0.79	0.24	0.12
			31-100-3/4X10-150-B1-U	31-100-3/4X10-150-B1-UK	3.94	3/4 x 10	-	5.91	-	0.79	0.24	0.12

Part Number X - External hex, tapped socket type	Part Number S - Without nut, external hex at the bottom	Part Number SK - With nut, external hex at the bottom	Part Number U - Without nut, internal hex at the top, wrench flat at the bottom	Part Number UK - With nut, internal hex at the top, wrench flat at the bottom	d₁	d₂	l₁ Version S / SK	Version U / UK	l₇ +0.157 Version X	h₁	h₂	s

31-50-5/16X18-37-B2-X					1.97	5/16 x 18	-	-	1.457 +0.157	5.71	1.38	0.12
	31-50-3/8X16-75-B2-S	31-50-3/8X16-75-B2-SK			1.97	3/8 x 16	2.95	-	-	5.71	1.38	0.12
	31-50-3/8X16-100-B2-S	31-50-3/8X16-100-B2-SK			1.97	3/8 x 16	3.94	-	-	5.71	1.38	0.12
	31-50-3/8X16-125-B2-S	31-50-3/8X16-125-B2-SK			1.97	3/8 x 16	4.92	-	-	5.71	1.38	0.12
	31-50-3/8X16-150-B2-S	31-50-3/8X16-150-B2-SK			1.97	3/8 x 16	5.91	-	-	5.71	1.38	0.12
31-50-3/8X16-40-B2-X					1.97	3/8 x 16	-	-	1.575 +0.157	5.71	1.38	0.12
	31-50-1/2X13-75-B2-S	31-50-1/2X13-75-B2-SK			1.97	1/2 x 13	2.95	-	-	5.71	1.38	0.12
	31-50-1/2X13-100-B2-S	31-50-1/2X13-100-B2-SK			1.97	1/2 x 13	3.94	-	-	5.71	1.38	0.12
	31-50-1/2X13-125-B2-S	31-50-1/2X13-125-B2-SK			1.97	1/2 x 13	4.92	-	-	5.71	1.38	0.12
	31-50-1/2X13-150-B2-S	31-50-1/2X13-150-B2-SK			1.97	1/2 x 13	5.91	-	-	5.71	1.38	0.12
31-50-1/2X13-43-B2-X					1.97	1/2 x 13	-	-	1.693 +0.157	5.71	1.38	0.12
31-50-5/8X11-49-B2-X					1.97	5/8 x 11	-	-	1.929 +0.157	0.63	1.38	0.12
			31-50-5/8X11-75-B2-U	31-50-5/8X11-75-B2-UK	1.97	5/8 x 11	-	2.95	-	0.63	1.38	0.12
			31-50-5/8X11-100-B2-U	31-50-5/8X11-100-B2-UK	1.97	5/8 x 11	-	3.94	-	0.63	1.38	0.12
			31-50-5/8X11-125-B2-U	31-50-5/8X11-125-B2-UK	1.97	5/8 x 11	-	4.92	-	0.63	1.38	0.12
			31-50-5/8X11-150-B2-U	31-50-5/8X11-150-B2-UK	1.97	5/8 x 11	-	5.91	-	0.63	1.38	0.12
31-60-5/16X18-38-B2-X					2.36	5/16 x 18	-	-	1.496 +0.157	0.63	0.16	0.12
	31-60-3/8X16-75-B2-S	31-60-3/8X16-75-B2-SK			2.36	3/8 x 16	2.95	-	-	0.63	0.16	0.12
	31-60-3/8X16-100-B2-S	31-60-3/8X16-100-B2-SK			2.36	3/8 x 16	3.94	-	-	0.63	0.16	0.12
	31-60-3/8X16-125-B2-S	31-60-3/8X16-125-B2-SK			2.36	3/8 x 16	4.92	-	-	0.63	0.16	0.12
	31-60-3/8X16-150-B2-S	31-60-3/8X16-150-B2-SK			2.36	3/8 x 16	5.91	-	-	0.63	0.16	0.12
31-60-3/8X16-41-B2-X					2.36	3/8 x 16	-	-	1.614 +0.157	0.63	0.16	0.12
	31-60-1/2X13-75-B2-S	31-60-1/2X13-75-B2-SK			2.36	1/2 x 13	2.95	-	-	0.63	0.16	0.12
	31-60-1/2X13-100-B2-S	31-60-1/2X13-100-B2-SK			2.36	1/2 x 13	3.94	-	-	0.63	0.16	0.12
	31-60-1/2X13-125-B2-S	31-60-1/2X13-125-B2-SK			2.36	1/2 x 13	4.92	-	-	0.63	0.16	0.12
	31-60-1/2X13-150-B2-S	31-60-1/2X13-150-B2-SK			2.36	1/2 x 13	5.91	-	-	0.63	0.16	0.12
31-60-1/2X13-45-B2-X					2.36	1/2 x 13	-	-	1.772 +0.157	0.63	0.16	0.12
31-60-5/8X11-50-B2-X					2.36	5/8 x 11	-	-	1.969 +0.157	0.63	0.16	0.12
			31-60-5/8X11-75-B2-U	31-60-5/8X11-75-B2-UK	2.36	5/8 x 11	-	2.95	-	0.63	0.16	0.12
			31-60-5/8X11-100-B2-U	31-60-5/8X11-100-B2-UK	2.36	5/8 x 11	-	3.94	-	0.63	0.16	0.12
			31-60-5/8X11-125-B2-U	31-60-5/8X11-125-B2-UK	2.36	5/8 x 11	-	4.92	-	0.63	0.16	0.12
			31-60-5/8X11-150-B2-U	31-60-5/8X11-150-B2-UK	2.36	5/8 x 11	-	5.91	-	0.63	0.16	0.12
31-80-5/16X18-40-B2-X					3.15	5/16 x 18	-	-	1.575 +0.157	0.71	0.20	0.12
	31-80-3/8X16-75-B2-S	31-80-3/8X16-75-B2-SK			3.15	3/8 x 16	2.95	-	-	0.71	0.20	0.12
	31-80-3/8X16-100-B2-S	31-80-3/8X16-100-B2-SK			3.15	3/8 x 16	3.94	-	-	0.71	0.20	0.12
	31-80-3/8X16-125-B2-S	31-80-3/8X16-125-B2-SK			3.15	3/8 x 16	4.92	-	-	0.71	0.20	0.12
	31-80-3/8X16-150-B2-S	31-80-3/8X16-150-B2-SK			3.15	3/8 x 16	5.91	-	-	0.71	0.20	0.12
31-80-3/8X16-43-B2-X					3.15	3/8 x 16	-	-	1.693 +0.157	0.71	0.20	0.12
	31-80-1/2X13-75-B2-S	31-80-1/2X13-75-B2-SK			3.15	1/2 x 13	2.95	-	-	0.71	0.20	0.12
	31-80-1/2X13-100-B2-S	31-80-1/2X13-100-B2-SK			3.15	1/2 x 13	3.94	-	-	0.71	0.20	0.12
	31-80-1/2X13-125-B2-S	31-80-1/2X13-125-B2-SK			3.15	1/2 x 13	4.92	-	-	0.71	0.20	0.12
	31-80-1/2X13-150-B2-S	31-80-1/2X13-150-B2-SK			3.15	1/2 x 13	5.91	-	-	0.71	0.20	0.12
31-80-1/2X13-47-B2-X					3.15	1/2 x 13	-	-	1.850 +0.157	0.71	0.20	0.12
31-80-5/8X11-52-B2-X					3.15	5/8 x 11	-	-	2.047 +0.157	0.71	0.20	0.12
			31-80-5/8X11-75-B2-U	31-80-5/8X11-75-B2-UK	3.15	5/8 x 11	-	2.95	-	0.71	0.20	0.12
			31-80-5/8X11-100-B2-U	31-80-5/8X11-100-B2-UK	3.15	5/8 x 11	-	3.94	-	0.71	0.20	0.12
			31-80-5/8X11-125-B2-U	31-80-5/8X11-125-B2-UK	3.15	5/8 x 11	-	4.92	-	0.71	0.20	0.12
			31-80-5/8X11-150-B2-U	31-80-5/8X11-150-B2-UK	3.15	5/8 x 11	-	5.91	-	0.71	0.20	0.12
31-80-3/4X10-60-B2-X					3.15	3/4 x 10	-	-	2.362 +0.157	0.71	0.20	0.12
			31-80-3/4X10-100-B2-U	31-80-3/4X10-100-B2-UK	3.15	3/4 x 10	-	3.94	-	0.71	0.20	0.12
			31-80-3/4X10-125-B2-U	31-80-3/4X10-125-B2-UK	3.15	3/4 x 10	-	4.92	-	0.71	0.20	0.12
			31-80-3/4X10-150-B2-U	31-80-3/4X10-150-B2-UK	3.15	3/4 x 10	-	5.91	-	0.71	0.20	0.12
31-100-5/16X18-42-B2-X					3.94	5/16 x 18	-	-	1.654 +0.157	0.79	0.24	0.12
	31-100-3/8X16-75-B2-S	31-100-3/8X16-75-B2-SK			3.94	3/8 x 16	2.95	-	-	0.79	0.24	0.12
	31-100-3/8X16-100-B2-S	31-100-3/8X16-100-B2-SK			3.94	3/8 x 16	3.94	-	-	0.79	0.24	0.12
	31-100-3/8X16-125-B2-S	31-100-3/8X16-125-B2-SK			3.94	3/8 x 16	4.92	-	-	0.79	0.24	0.12
	31-100-3/8X16-150-B2-S	31-100-3/8X16-150-B2-SK			3.94	3/8 x 16	5.91	-	-	0.79	0.24	0.12
31-100-3/8X16-45-B2-X					3.94	3/8 x 16	-	-	1.772 +0.157	0.79	0.24	0.12
	31-100-1/2X13-75-B2-S	31-100-1/2X13-75-B2-SK			3.94	1/2 x 13	2.95	-	-	0.79	0.24	0.12
	31-100-1/2X13-100-B2-S	31-100-1/2X13-100-B2-SK			3.94	1/2 x 13	3.94	-	-	0.79	0.24	0.12
	31-100-1/2X13-125-B2-S	31-100-1/2X13-125-B2-SK			3.94	1/2 x 13	4.92	-	-	0.79	0.24	0.12
	31-100-1/2X13-150-B2-S	31-100-1/2X13-150-B2-SK			3.94	1/2 x 13	5.91	-	-	0.79	0.24	0.12
31-100-1/2X13-49-B2-X					3.94	1/2 x 13	-	-	1.929 +0.157	0.79	0.24	0.12
31-100-5/8X11-54-B2-X					3.94	5/8 x 11	-	-	2.126 +0.157	0.79	0.24	0.12
			31-100-5/8X11-75-B2-U	31-100-5/8X11-75-B2-UK	3.94	5/8 x 11	-	2.95	-	0.79	0.24	0.12
			31-100-5/8X11-100-B2-U	31-100-5/8X11-100-B2-UK	3.94	5/8 x 11	-	3.94	-	0.79	0.24	0.12
			31-100-5/8X11-125-B2-U	31-100-5/8X11-125-B2-UK	3.94	5/8 x 11	-	4.92	-	0.79	0.24	0.12
			31-100-5/8X11-150-B2-U	31-100-5/8X11-150-B2-UK	3.94	5/8 x 11	-	5.91	-	0.79	0.24	0.12
31-100-3/4X10-62-B2-X					3.94	3/4 x 10	-	-	2.441 +0.157	0.79	0.24	0.12
			31-100-3/4X10-100-B2-U	31-100-3/4X10-100-B2-UK	3.94	3/4 x 10	-	3.94	-	0.79	0.24	0.12
			31-100-3/4X10-125-B2-U	31-100-3/4X10-125-B2-UK	3.94	3/4 x 10	-	4.92	-	0.79	0.24	0.12
			31-100-3/4X10-150-B2-U	31-100-3/4X10-150-B2-UK	3.94	3/4 x 10	-	5.91	-	0.79	0.24	0.12

Show / Hide columns

Inch

Dimensions in: Inch (change to Metric)

d₁	d₂	l₁ Version S / SK				Version U / UK				l₇ +0.157 Version X	h₁	h₂	s

1.97	5/16 x 18	-	-	-	-	-	-	-	-	1.457	5.71	1.38	0.12
1.97	3/8 x 16	2.95	3.94	4.92	5.91	-	-	-	-	1.575	5.71	1.38	0.12
1.97	1/2 x 13	2.95	3.94	4.92	5.91	-	-	-	-	1.693	5.71	1.38	0.12
1.97	5/8 x 11	-	-	-	-	2.95	3.94	4.92	5.91	1.929	0.63	1.38	0.12
2.36	5/16 x 18	-	-	-	-	-	-	-	-	1.496	0.63	0.16	0.12
2.36	3/8 x 16	2.95	3.94	4.92	5.91	-	-	-	-	1.614	0.63	0.16	0.12
2.36	1/2 x 13	2.95	3.94	4.92	5.91	-	-	-	-	1.772	0.63	0.16	0.12
2.36	5/8 x 11	-	-	-	-	2.95	3.94	4.92	5.91	1.969	0.63	0.16	0.12
3.15	5/16 x 18	-	-	-	-	-	-	-	-	1.575	0.71	0.20	0.12
3.15	3/8 x 16	2.95	3.94	4.92	5.91	-	-	-	-	1.693	0.71	0.20	0.12
3.15	1/2 x 13	2.95	3.94	4.92	5.91	-	-	-	-	1.850	0.71	0.20	0.12
3.15	5/8 x 11	-	-	-	-	2.95	3.94	4.92	5.91	2.047	0.71	0.20	0.12
3.15	3/4 x 10	-	-	-	-	3.94	4.92	5.91	-	2.362	0.71	0.20	0.12
3.94	5/16 x 18	-	-	-	-	-	-	-	-	1.654	0.79	0.24	0.12
3.94	3/8 x 16	2.95	3.94	4.92	5.91	-	-	-	-	1.772	0.79	0.24	0.12
3.94	1/2 x 13	2.95	3.94	4.92	5.91	-	-	-	-	1.929	0.79	0.24	0.12
3.94	5/8 x 11	-	-	-	-	2.95	3.94	4.92	5.91	2.126	0.79	0.24	0.12
3.94	3/4 x 10	-	-	-	-	3.94	4.92	5.91	-	2.441	0.79	0.24	0.12

Show / Hide columns

Dimensions in: Inch (change to Metric)

d₁	d₂	h₃ +0.157	h₄ +0.157	A/F₁ (inches)	A/F₂ (inches)	A/F₃ (inches)	A/F₇ (inches)	t

1.97	5/16 x 18	-	-	-	-	-	1/2	0.31
1.97	3/8 x 16	0.91	-	11/16	-	-	1/2	0.39
1.97	1/2 x 13	0.91	-	11/16	-	-	5/8	0.47
1.97	5/8 x 11	-	1.142	-	1/2	5/16	7/8	0.63
2.36	5/16 x 18	-	-	-	-	-	1/2	0.31
2.36	3/8 x 16	0.94	-	11/16	-	-	1/2	0.39
2.36	1/2 x 13	0.94	-	11/16	-	-	5/8	0.47
2.36	5/8 x 11	-	1.181	-	1/2	5/16	7/8	0.63
3.15	5/16 x 18	-	-	-	-	-	1/2	0.31
3.15	3/8 x 16	1.02	-	11/16	-	-	1/2	0.39
3.15	1/2 x 13	1.02	-	11/16	-	-	5/8	0.47
3.15	5/8 x 11	-	1.260	-	1/2	5/16	7/8	0.63
3.15	3/4 x 10	-	1.299	-	9/16	7/16	1	0.79
3.94	5/16 x 18	-	-	-	-	-	1/2	0.31
3.94	3/8 x 16	1.10	-	11/16	-	-	1/2	0.39
3.94	1/2 x 13	1.10	-	11/16	-	-	5/8	0.47
3.94	5/8 x 11	-	1.339	-	1/2	5/16	7/8	0.63
3.94	3/4 x 10	-	1.378	-	9/16	7/16	1	0.79

Build & Price

3D Product Configurator

Selected Part

Part Number

Total US Dollars (net)

$16.99

In Stock: 41

In Stock

Quantity

Please note our quantity discounts (US Dollars).

Min	Max	Price
1	49	$16.99
50	99	$15.57
100	249	$14.16
≥ 250		$12.74

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.242 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351

All Prices are in US Dollars. Taxes Not Included.
